Instruction Manual

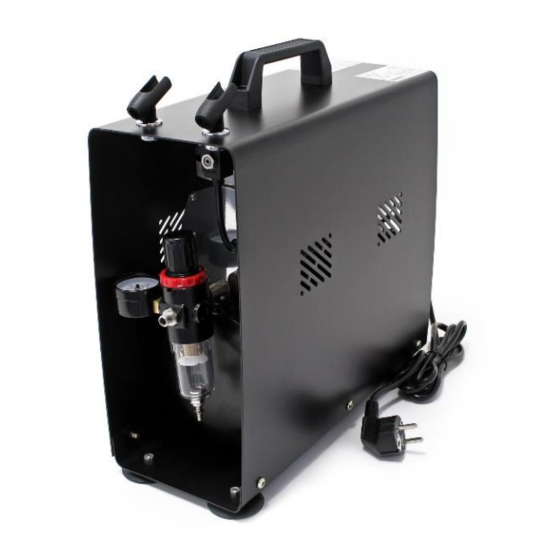

Airbrush Compressor AS196A
34207
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WilTec AS196A
Summary of Contents for WilTec AS196A
- Page 1 Instruction Manual Airbrush Compressor AS196A 34207 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps and technical data may deviate insignificantly due to continuous further...
- Page 2 The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man- ual, nor in the diagrams and illustrations shown.
- Page 3 Store the compressor in a well-ventilated place. • Always wear protective goggles. Under no circumstances should you direct the airflow towards your body or other persons’ bodies or animals. © by WilTec Wildanger Technik GmbH Item 34207 Page 3 http://www.WilTec.de http://www.aoyue.eu...
- Page 4 • Very low noise level The AS196A airbrush compressor is for example suitable for operating in the following areas: arts and crafts, hobbies, modelling, tattoos and body art, make-up and nail design, as a source of air in the field of medicine, in food industry, chemical industry, laboratories, etc.
- Page 5 On the outlet of the compressor, there is a lower pressure. What remains is the pressure that you actually work with. The operating pressure may vary according to the connected airbrush gun. © by WilTec Wildanger Technik GmbH Item 34207 Page 5 http://www.WilTec.de...
- Page 6 4. Do not rotate the knob against high resistance. If necessary, the height and position of the knob can vary slightly. 5. For emptying the condensed water collector, use the water drain plug. © by WilTec Wildanger Technik GmbH Item 34207 Page 6 http://www.WilTec.de...
- Page 7 Position 1: autostop at 4 bar Position 2: maximum pressure at 6 bar Airbrush gun holder Pressure regulator Pressure gauge Air outlet Water drain plug Mains plug © by WilTec Wildanger Technik GmbH Item 34207 Page 7 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
-
Page 8: Troubleshooting
Valve destroyed because of too Replace valves or cylinder cover. long a work with too high a pres- sure. © by WilTec Wildanger Technik GmbH Item 34207 Page 8 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de... - Page 9 Three-way manifold Bearing Cylinder block Three-way manifold Rotary motor O-ring Check valve Front main unit Cylinder head Hose nut Counterweight Filter valve Plug Pressure gauge Handle Sleeve © by WilTec Wildanger Technik GmbH Item 34207 Page 9 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 10 Water release needle Drain valve Compression ring Capacitor Adaptor Hose On/off switch Hose Solenoid valve Wire Screw-nut Cylinder Rubber pad Base plate Valve plate Hexagon head nut Cover © by WilTec Wildanger Technik GmbH Item 34207 Page 10 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 11 German law related to electrical and electronic equipment and appliances. All WilTec electric devices that fall under the WEEE directive are labelled with the symbol of a crossed- out wheeled rubbish bin. This symbol indicates that this electric device must not be disposed of with the domestic waste.
