Summary of Contents for Grant-bio RTS-1

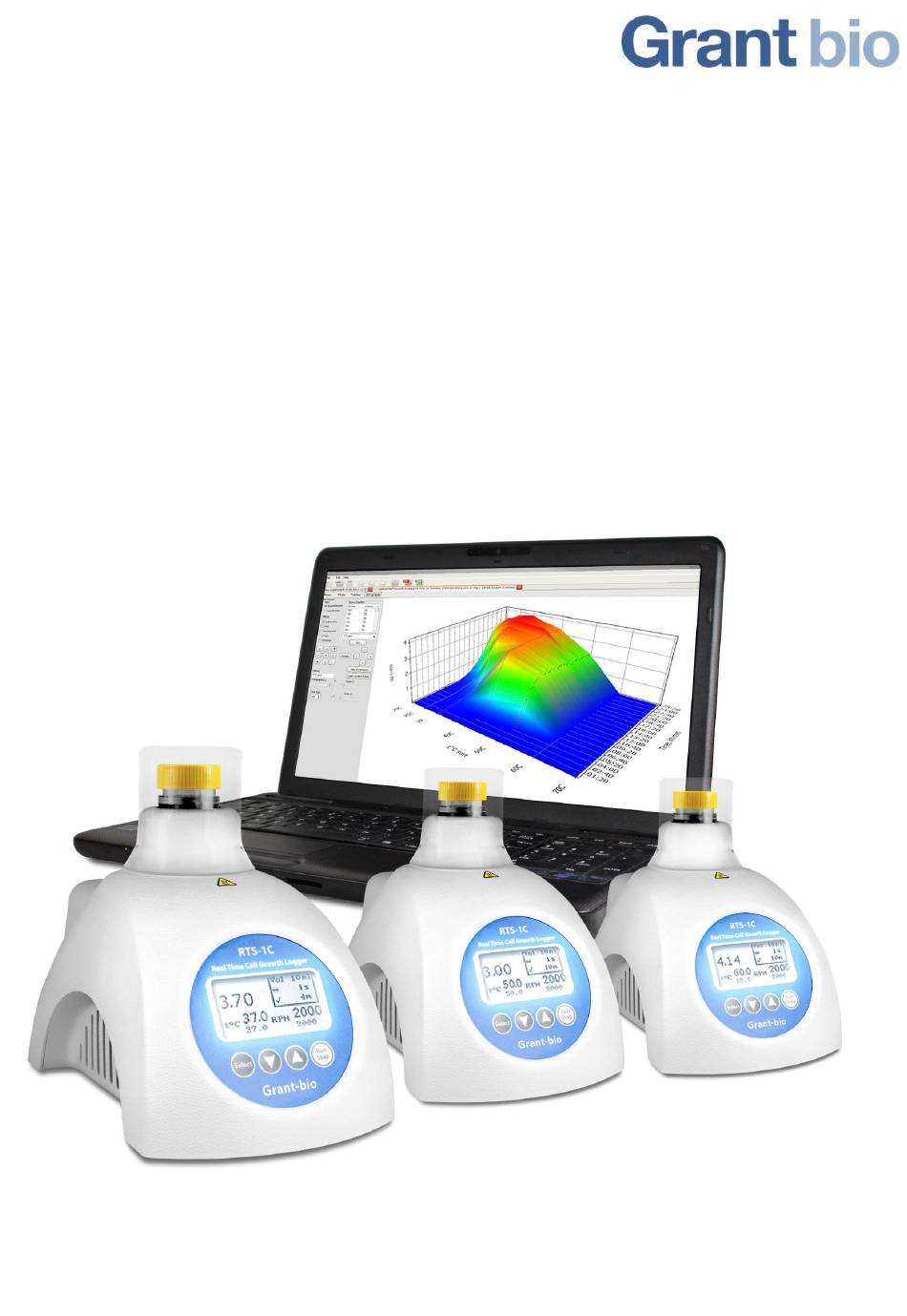

- Page 1 Personal Bioreactor RTS-1 & RTS-1C Operating instructions...
- Page 2 Edition 3-4.03 – July 2017 Personal bioreactor RTS-1 & RTS-1C Page 2 Operating instructions...
-
Page 3: Table Of Contents
EU Declaration of Conformity ..............................14 1. About this edition of the instructions The manual applies to the following versions and models of personal bioreactors: RTS-1 V.3GW RTS-1C V.4G01 Edition 3.-4.03 – July 2017 Personal bioreactor RTS-1 & RTS-1C Operating instructions Page 3... -
Page 4: Safety Precautions
It is the user’s responsibility to carry out appropriate decontamination if hazardous material is spilt on or penetrates into the equipment. The tube of the bioreactor must be sealed very tightly. Please see 4.5. for instructions on testing the tubes. Edition 3-4.03 – July 2017 Personal bioreactor RTS-1 & RTS-1C Page 4 Operating instructions... -
Page 5: General Information

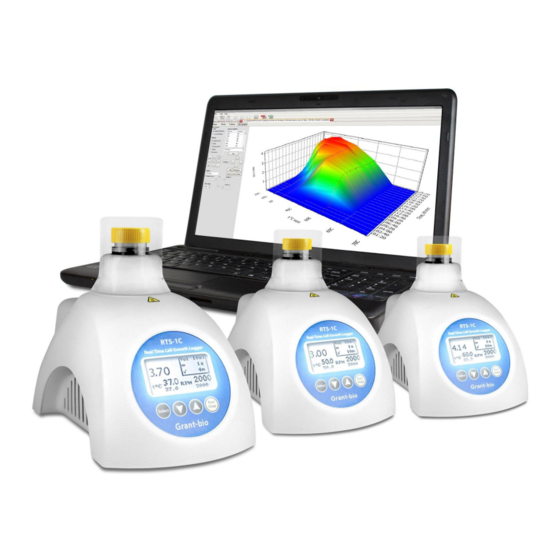

3. General Information Personal Bioreactor RTS-1 / RTS-1C is a device that can be used as an incubator with optical density measurement in real time. Temperature control allows using RTS-1 / RTS-1C as an incubator, for example, to cultivate cells. Due to innovative mixing technology (reverse spinning of the sample around its own axis), it is possible to make OD measurement without probe interference. -
Page 6: Getting Started
Remove packing materials carefully and retain them for future shipment and storage of the unit. Examine the unit carefully for any damage incurred during transit. The warranty does not cover in-transit damage. 4.2. Complete set. The unit set includes: RTS-1 / RTS-1C, Personal Bioreactor........................... 1 pce Lid ......................................1 pce ® Bioreactor vessels TPP TubeSpin Bioreactor 50ml ...................... -
Page 7: Calibration
Continue to software manual page 29. 5.3.2. RTS-1 / RTS-1C can be calibrated to detect scattered light of any possible cell with any possible shape and size, but due to difference of light scattering in various cell suspensions, we cannot guarantee the stated measurement range in all conditions. -
Page 8: Operation
“off” indication appears (fig. 2/5). 6.6. After finishing the operation, switch OFF the unit with the Power switch (fig. 1/3). 6.7. Disconnect external power supply from electric circuit (fig. 1/1). Edition 3-4.03 – July 2017 Personal bioreactor RTS-1 & RTS-1C Page 8 Operating instructions... -
Page 9: Recommended Methods For Microorganism Cultivation
) at a speed of 2000 rpm. The increase of pause between reverse spins reduces cell growth rate, reaching 50% of the maximum value, when RS frequency is 30 s (see fig. 5. and fig. 6.). Edition 3.-4.03 – July 2017 Personal bioreactor RTS-1 & RTS-1C Operating instructions Page 9... -
Page 10: Aeration And Types Of Recommended Tubes
8.2.1. Legend of experiment (fig. 5.): Personal Bioreactor RTS-1 / RTS-1C was used with 850 nm LED, volume of LB media in 50 ml Falcon tube was 15 ml, Reverse Spin Frequency 1, 2, 4, 8, 16, 30 s , measurement frequency (MF) is 10 min , reactor rotation speed 2000 rpm , temperature 37°... -
Page 11: Temperature Control
When temperature of the plastic material is changing, i.e. during temperature change of 30°C every hour, the plastic material of the tube changes optical characteristics in a range of ±0.1 OD. Edition 3.-4.03 – July 2017 Personal bioreactor RTS-1 & RTS-1C Operating instructions Page 11... -
Page 12: Specification
RTS-1C ..................................... 2.2 Input voltage ..................................12 V DC Input current / power consumption RTS-1 ..................................3.3 A / 40 W RTS-1C ..................................5 A / 60 W External power supply ......................In AC 100-240V 50/60Hz, out DC 12V Accurate within ±10%. -
Page 13: Guarantee And Service
12.7. Press button and “0.00” number will appear and blink on the display. 12.8. Wait 15 seconds and press button. 12.9. Device is now calibrated and will make one verification measurement. Edition 3.-4.03 – July 2017 Personal bioreactor RTS-1 & RTS-1C Operating instructions Page 13... -
Page 14: Eu Declaration Of Conformity
We declare that this product conforms to the requirements of the above Directives ____________________ ____________________ Signature Signature Svetlana Bankovska Aleksandr Shevchik Managing director Engineer of R&D ____________________ ____________________ Date Date Edition 3-4.03 – July 2017 Personal bioreactor RTS-1 & RTS-1C Page 14 Operating instructions... - Page 15 Edition 3.-4.03 – July 2017 Personal bioreactor RTS-1 & RTS-1C Operating instructions Page 15...
- Page 16 Thank you for reading this data sheet. For pricing or for further information, please contact us at our UK Office, using the details below. UK Office Keison Products, P.O. Box 2124, Chelmsford, Essex, CM1 3UP, England. Tel: +44 (0)330 088 0560 Fax: +44 (0)1245 808399 Email: sales@keison.co.uk...
