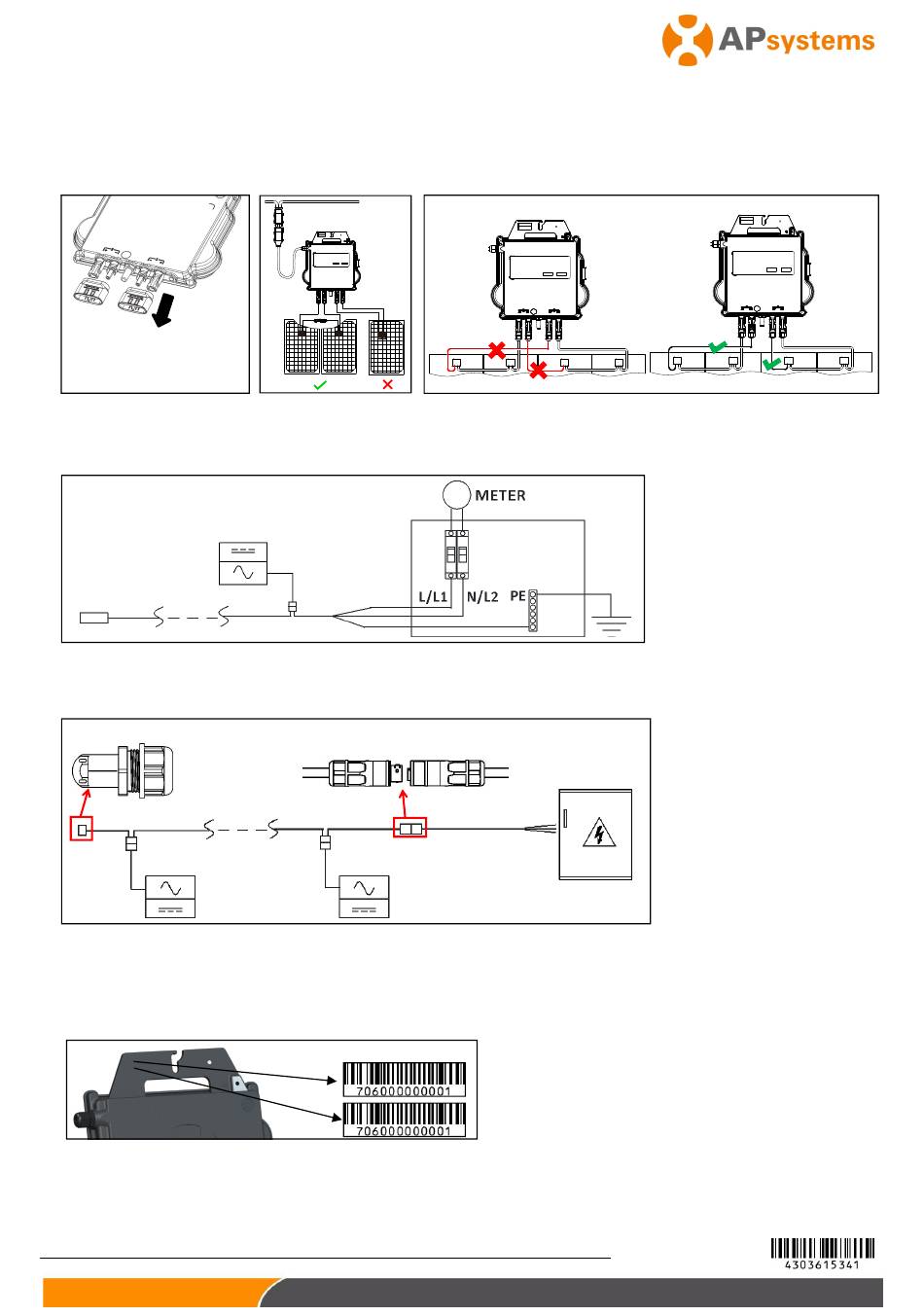

WARNING: Each PV panel must be carefully connected to the same channel.
Make sure to not split positive and negative DC cables into two different input channels: microinverter will be
damaged and warranty will not apply.
NOTE: Each channel connects 2 PV modules in series (For PV modules with Voc<60V).
The input channel will not work if connects to a single module(Voc<60V).
That means the quantity of PV modules in the sysem is even number.
NOTE: Remove the DC
connector caps before
PV modules connection.

Step 8. Connect APsystems Microinverters to Grid

NOTE: 1.Please install bi-polar circuit breakers with proper rated current or according to the local regulation,
which are mandatory to connect to grid.
2.Leakage current breakers or AFCI/GFCI breakers are not recommended to install.

Step 9. AC Extension Cable

When AC extension cable is needed, users could connect the AC bus cable and AC extension cable in a junction box
or use a pair of male/female AC connectors that APsystems provides as optional accessory.
Bus Cable End Cap

Step 10. Complete the APsystems installation map

a. Each APsystems Microinverter has 2 removable serial number labels.
b. Complete installation map by sticking ID label of each microinverter at the right location.
c. The second serial number label, could be stuck on the solar module frame, which could help later to confirm the
position of the microinverter without dismantling the PV module.
NOTE: ①.The layout of the microinverters' serial numbers installation map is only suitable for
typical installation.
②.Installation Map is available in the last page appendix of this manual.
③.Use ECU_APP (available in the EMA Manager) to scan the serial numbers on the map
when setting up the ECU (see ECU instruction manual for more info).
Product information is subject to change without notice.(Please download manuals at www.APsystems.com).
Male/Female AC Connectors
AC Extension Cable
