Product Name:
SKU #:
Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest
standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged
parts. If any parts are missing or damaged, do not attempt to assemble or use the product.
CARTON CONTENTS:
Description
Fountain Base
Fountain Tiers
Pump
Nuts
Compatible Pumps for this fountain:
Pump Model No.
JR600
JB650
YH560
Tools required for assembly: No tools required for assembly.
Assembly Instructions:
1. Unpack the contents of the box and check to make sure that all items are accounted for and in good
condition.
2. Select a flat, level surface for the assembly and final location of your fountain.
3. Place Part A upside down, and attach the Part B base by turning Part B clockwise. Make sure it is tightened
and secure, and carefully turn the fountain right side up.
4. From the opening at the center of the fountain base, insert the water supply tube into the pump outlet.
Place the pump upright in the basin and draw the pump power cord out of the fountain base.
5. Place and insert the tube at the base of Part C to the pump. Attach Part C to Part B by aligning the bolts in
Part B with Part C's openings, and use nuts to secure the parts together. Do not overtighten the nuts to
avoid stripping.
6. Place and insert Part D to the tube of Part C, and Part E to the tube of Part G.
7. Add clean water to the fountain. The water level should be approximately 30mm lower than the edge of the
basin.
8. Connect the power cable to outlet. If installed properly, water flow in the fountain will begin shortly.
9. Please do not use the electrical plug in wet weather conditions. Please note: On first use, there may be air in
the pump. It may take several minutes until all the air escapes.

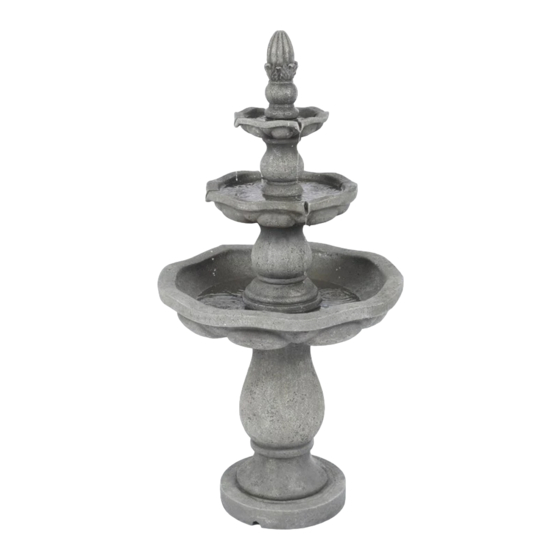

Resin 3-Tier Stone Finish Outdoor Fountain
WHF614
Quantity
1
4
1
2
Contact: cs@winsomehouse.com
Instruction Manual
SAVE THESE INSTRUCTIONS–This manual contains
important safety and operating instructions for power units.
Advertisement
Table of Contents
Related Manuals for LuxenHome WHF614
Summary of Contents for LuxenHome WHF614
- Page 1 Product Name: Resin 3-Tier Stone Finish Outdoor Fountain SKU #: WHF614 Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
- Page 2 Resin 3-Tier Stone Finish Outdoor Fountain SKU #: WHF614 10. To eliminate the possibility of water damage around your fountain, check for leaks and excessive splashing after the initial setup of your fountain. It is highly recommended that this fountain be placed in an area where it cannot be damaged.
- Page 3 Instruction Manual SAVE THESE INSTRUCTIONS–This manual contains important safety and operating instructions for power units. Product Name: Resin 3-Tier Stone Finish Outdoor Fountain SKU #: WHF614 Note: The above diagram is for illustrative purposes only. Contact: cs@winsomehouse.com...
- Page 4 Product Name: Resin 3-Tier Stone Finish Outdoor Fountain SKU #: WHF614 MAINTENANCE OF YOUR PUMP: • Keep the water clean – clean water will prolong the useful life of your pump. Use a pre-filter on your pump if available.
- Page 5 Product Name: Resin 3-Tier Stone Finish Outdoor Fountain SKU #: WHF614 Check the water level regularly to ensure the pump is completely submerged during operation. The pump • should be fully submerged during operation. Do not add water while operating the product. Always disconnect the pump from the power source before adding water.
