AWZ637 Features: DC 13,8 V/6 A uninterruptible power supply* EPS technical output indicating AC power loss – OC and relay type fitting battery: 17 Ah/12 V PSU technical output indicating PSU failure wide range of mains supply: ~200-240 V ...
AWZ637 1.2 Block diagram (fig.1) Fig.1. The block diagram of the PSU. 1.3 Description of PSU components and connectors (tab.1, fig.2). Element no. Description LED indicating presence of AC power LED indicating presence of DC power LED indicating correct battery voltage EPS - AC absence technical output –...

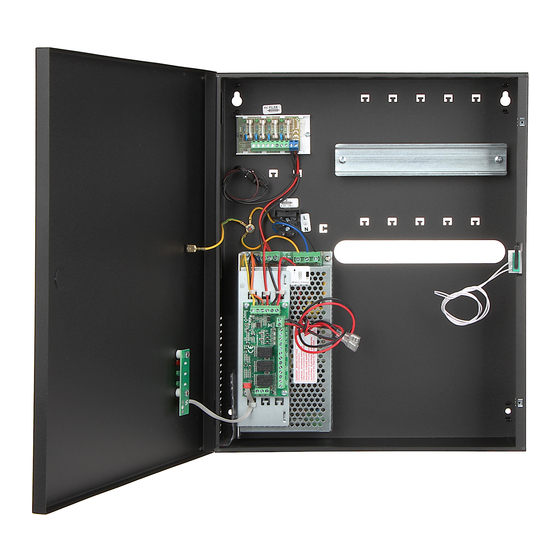

AWZ637 Element Description [Fig. 2] PSU module Fitting battery 17 Ah/12 V (SLA) TAMPER, contact, sabotage protection (NC) L-N 230 V power supply connector, protection connector Power cord for the controller, ended with a DC 2.1 / 5.5 plug...
Page 5
AWZ637 =40 °C Output current t 4,9 A + 1 A battery charge - refer to chart 1 3,9 A + 2 A battery charge - refer to chart 1 Voltage adjustment range 12÷14 V DC Ripple 120 mV p-p max.
AWZ637 Notes The enclosure does not touch the assembly surface so that cables can be led. Convectional cooling. Operation safety (tab.5) Protection class PN-EN 60950-1:2007 I (first) Protection grade PN-EN 60529: 2002 (U) IP20 Electrical strength of insulation: - between input and output circuits of the PSU 3000 V AC min.
Page 7
AWZ637 2.2 Installation procedure. Before installation, cut off the voltage in the 230 V power-supply circuit. To switch power off, use an external switch, in which the distance between the contacts of all poles in the disconnection state is not less than 3 mm.
Page 8
AWZ637 3.2 Technical outputs The PSU has indication outputs: EPS - absence of AC supply output: - OC type output that indicates AC power loss. Under normal status, with 230 V supply, the output is connected to ground (L level – 0V). In case of power loss, the PSU will switch the output into high impedance state hi- Z after approx.
Page 9
CAUTION! The power supply unit is adapted for cooperation with the sealed lead-acid batteries (SLA). After the operation period they must not be thrown but recycled according to the applicable law. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 E-mail: biuro@pulsar.pl,...
