- Page 1 EoSens 1.1CXP Camera Reference Guide V1.2...
-
Page 2: Table Of Contents
Reading the XML File ........... . . 4-5 MIKROTRON GmbH... - Page 3 TestErrorCount ............6-14 MIKROTRON GmbH...
- Page 4 UserSetDefaultSelector..........10-3 MIKROTRON GmbH...
- Page 5 Conclusions............C-3 MIKROTRON GmbH...
- Page 6 Side View with F mount adapter ..........D-4 MIKROTRON GmbH...
-
Page 7: Before You Start
CHAPTER Before You Start Please, read this chapter carefully. It provides important informa‐ tion on • how to use this reference guide • conformity and use of the product • the warranty and non‐warranty clause and how to ask for repair service •... -
Page 8: About This Reference Guide
It has been produced with care. Nev‐ ertheless, information might be erroneous or incomplete. MIKROTRON GmbH cannot be held responsible for any problems resulting from incomplete or erroneous information. In case you detect errors or need further information, please inform us via mail: info@mikrotron.de... -
Page 9: Registered Trademarks
You are herewith cautioned that any changes or modifica‐ Note tions not expressly approved in this description could void your authority to operate this equipment. 制造说明： 此设备的生产与测试依照 FCC 条例第 15 条条例，符合 A 类电子设备标 准。产品提供在商用使用环境中的合理保护，以防止使用过程中可能涉及 到的损害。 此设备会产生、使用并可发射出无线电波，如果未按照本手册中所述安装 和使用，可能会对无线通信设备产生干扰。如本设备在居民区操作出现干 扰等情况，用户需要自费处理。 备注：请注意，如未按照此使用说明操作而自行更改设备，那么您将无权 使用本设备。 MIKROTRON GmbH 1 ‐ 3... -
Page 10: Supplements
WARNING! MIKROTRON customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify MIKROTRON for any damages resulting from such improper use or sale. -
Page 11: Warranty And Non-Warranty Clause
+49 ‐ 89 ‐ 7263 4250 or service@mikrotron.de e‐mail: Then send the camera back to your distributor. If no distributor is available, send it back to MIKROTRON. You find the address on the last page of this reference guide. MIKROTRON GmbH 1 ‐ 5... -
Page 12: Technical Support
Step 1. www.mikrotron.de/en/services/support.html Fill in the form completely Step 2. Step 3. Click [Send] You will receive an automatic reply from our ticket system. Our field application engineer will answer your request as soon as possible. MIKROTRON GmbH 1 ‐ 6... -
Page 13: Eu Declaration Of Conformity
EU Declaration of Conformity EU-Konformitätserklärung MIKROTRON GmbH Phone: ‐‐+49 (0)89 72634200 Landshuter Str. 20‐22 Fax: ‐‐‐‐‐‐+49 (0)89 726342‐99 D‐85716 Unterschleissheim Mail: ‐‐‐‐‐info@mikrotron.de www.mikrotron.de We herewith declare under our sole responsibility that the products mentioned below: Hiermit erklären wir in alleiniger Verantwortung, dass die folgenden Produkte: Product type: 1.1CXP Camera... -
Page 14: Introduction
CHAPTER Introduction This chapter describes the camera in general, which means, it informs about: • the most important camera features and its sensor • where it can be used • what is part of the delivery • system requirements... -
Page 15: Overview

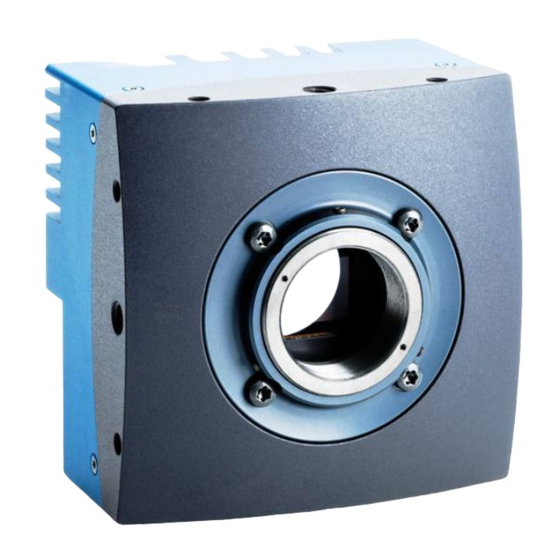

Introduction Overview Mikrotron’s EoSens 1.1CXP high‐speed camera is CoaXPress compli‐ ant. It comes with a 1.1 mega pixel sensor providing a resolution of 1280 (H) x 864 (V) pixels. This camera type is available in mono‐ chrome and color (Bayer Filter) and can be equipped with standard C‐... -
Page 16: Scope Of Delivery
, i n f o r m • F‐Mount or C‐Mount lens adapter as ordered M I K R O T R O N v i a m a i l : • MIKROTRON’s Support CD with info@mikrotron.de – VCAM2 software –... -
Page 17: Optional Accessories
• The cable KKRDDINBNCxx/6Gx4 with DIN 1.0/2.3 at one end number 1. and 4 BNC connectors at the other is available lengths of 5, 10, 15, 20 or 25 meters. It is used to connect a frame grabber with BNC sockets with the camera. MIKROTRON GmbH 2 ‐ 4... -
Page 18: System Requirements
Tip: Read more about frame grabbers that were tested • if wanted, an external power supply (NTCAM132x or NTCAM13xx) with MIKROTRON cameras in the Application Note Note All cables, connectors and the frame grabber have to be AN0036. CoaXPress V1.1 compliant. -
Page 19: The 1.1Cxp Camera
CHAPTER The 1.1CXP Camera The chapter describes the camera in general which means: • the available camera types and its differences • its operating temperature and additional cooling • how to connect a frame grabber and an external power supply •... -
Page 20: Camera Description
40 °C. In this case, take additional cooling measures as described below. Note The camera is not intended for use on an isolated mount‐ ing plate or in a closed housing because the temperature of the camera will rise continuously. MIKROTRON GmbH 3 ‐ 2... -
Page 21: Additional Cooling
• air‐ or water‐cooling system or by cooling is ensured but also a • air‐conditioned housings stable optical path. In addi‐ tion, vibrations will be mini‐ mized within the entire system. MIKROTRON GmbH 3 ‐ 3... -
Page 22: Interfaces Of The Camera
3‐ 7. In addition, take the trig‐ ger settings into account. For more information see "Acquistion Control" on page 5‐2. Image 3‐1: 1.1CXP camera with DIN connector MIKROTRON GmbH 3 ‐ 4... -
Page 23: Connecting A Frame Grabber
If you look at the back of the camera, the left DIN connector is the Tip: Pin 1 always has to be master connector number 1 (marked by a triangle). Connect it with connected. channel one of the frame grabber (please, read the frame grabber documentation). MIKROTRON GmbH 3 ‐ 5... -
Page 24: Din Connector
Tip: All connections are hot‐ pluggable. On DIN DIN cables from MIKROTRON (KKRDDINDINxx/6Gx4), pin1 is marked with a triangle on the connector housing. The assignment of the DIN‐cables KKRDDINDINxx/6Gx4 and KKRD‐ DINBNCxx/6Gx4 connector pins is as follows: DIN connector... -
Page 25: Connecting An External Power Supply Or I/O Signals
MIKROTRON offers the power supply unit NTCAM132xx with cables of 5 or 10 meters. In case you assemble your own cable, pay attention to the pinning described below. - Page 26 The 1.1CXP Camera Image 3‐2: Connecting in‐ and output signals with the internal circuit internally connected with: pin 4 pin 8 pin 6 pin 10 connected with pin 3 + 5 MIKROTRON GmbH 3 ‐ 8...
-
Page 27: Status Led
‐ 500 ms pulse error during data transfer slow flash alternate red/green/orange compliance test mode enabled fast flash red system error MIKROTRON GmbH 3 ‐ 9... -
Page 28: Resolution And Speed
If there are coarse particles on the lens or the window of the sensor, use a vacuum cleaner to remove them before cleaning. Otherwise, the lens or sensor might be scratched. WARNING! Don't use tools that may harm the sensor/lens. MIKROTRON GmbH 3 ‐ 10... -
Page 29: First Steps
CHAPTER First Steps In this chapter you learn • how to connect the camera with the image processing system • about initial settings the camera provides when being powered‐up • basics on the configuration of the camera via GenICam... -
Page 30: Connect Camera And Image Processing System
Hirose connector with the camera Step 6. In case you want to connect an external trigger take the pinning into account. For more information see "Connecting an External Power Supply or I/O Signals" on page 3‐6. MIKROTRON GmbH 4 ‐ 2... -
Page 31: Power-Up Profile
Number to read the serial number and the firmware revision. Read up profile will deliver all the chapter Bootstrap Registers for more information. necessary values. If you need the serial number only, you find it on the identification plate at one side of the camera. MIKROTRON GmbH 4 ‐ 3... -
Page 32: Configuring The Camera
First Steps Configuring the Camera All of MIKROTRON’s CXP cameras are compliant to the CoaXPress specification. CoaXPress standardizes down‐ and uplink protocols, interfaces, cables, and connectors used by CoaXPress compliant cam‐ eras and frame grabbers. All our CXP cameras use GenICam, which is a standardized generic programming interface. -
Page 33: Reading The Xml File
3 2 b i t unsigned integers, if not other mentioned. All strings are NULL terminated and consist of 8 bit characters. MIKROTRON GmbH 4 ‐ 5... - Page 34 Use the Software delivered by the frame grabber’s manufacturer to configure camera and frame grabber. In case you use a frame grabber from Active Silicon, MIKROTRON’s VCAM Software which is part of the delivery too, can be used alternatively. Please, refer to www.emva.org/standards‐technology/genicam...
-
Page 35: Acquisition Control
CHAPTER Acquisition Control This chapter provides information on available settings to control image acquisition and: • configure the trigger settings • control exposure • set and read the (maximal) acquisition frame rate • select a test image... -
Page 36: Acquistion Control
/ write Access enumeration Type continuous the camera records continuously a sequence of frames until it is stopped by the command AcquisitionStop the selected mode frame acquisition can be stopped with the feature Remark AcquisitionStop MIKROTRON GmbH 5 ‐ 2... -
Page 37: Acquisitionstart
FrameBurstStart trigger. For more information see "TriggerSelector" selected in TriggerSelector, ExposureMode has to be set on page 4. to Timed to make recording possible. read/write Access integer Type x00000001 number of frames to be acquired MIKROTRON GmbH 5 ‐ 3... -
Page 38: Triggerselector
ExposureTime (fixed Remark exposure time) or by the duration of the trigger signal itself (variable exposure time). The settings in ExposureMode will only become effective if triggered mode is ON. MIKROTRON GmbH 5 ‐ 4... -
Page 39: Triggersource
TriggerSource. Tip: When using Trigger‐ Software, the exposure time of the next frame cannot be defined by TriggerWidth of the feature ExposureMode. Instead, it has to be defined by the feature Exposure‐ Time. MIKROTRON GmbH 5 ‐ 5... -
Page 40: Triggeractivation
/ write Access integer Type min. max. zero is the only value accepted and is used to reset the trigger counter number of counted trigger signals Remark MIKROTRON GmbH 5 ‐ 6... -
Page 41: Triggerdebouncer
ExposureMode is enabled in trigger mode only. If you choose AnyEdge in TriggerActivator, Timed has to be set. Remark Timed also has to be set if the TriggerSelector is set to FrameBurstStart. MIKROTRON GmbH 5 ‐ 7... -
Page 42: Exposuretime
This feature defines the acquisition rate in [Hz] when TriggerMode is OFF . AcquisitionFrameRate will be disabled. read / write Access unsigned integer Type >10... highest possible frame rate AcquisitionFrameRate incremented by 1; min. 10 Remark MIKROTRON GmbH 5 ‐ 8... -
Page 43: Acquisitionframeratemax
CoaXPress lines used for image streaming. Remark: This feature will s o o n ex p i re . Swi tc h to AcquisitionFrameRate to get the highest possible frame rate. MIKROTRON GmbH 5 ‐ 9... - Page 44 CHAPTER Bootstrap The chapter provides information on: • bootstrap registers which are mainly used to deliver infor‐ mation about the camera in order to allow a communica‐ tion between frame grabber and camera...
-
Page 45: Bootstrap Registers
Integer 6‐9 PixelFormatAddress 0x00003014 Integer 6‐9 DeviceTapGeometrieAddress 0x00003018 Integer 6‐9 Image1StreamIDAddress 0x0000301C Integer 6‐9 ConnectionReset 0x00004000 W/(R) Integer 6‐10 DeviceConnectionID 0x00004004 Integer 6‐10 MasterHostConnectionID 0x00004008 Integer 6‐10 ControlPacketSizeMax 0x0000400C Integer 6‐11 StreamPacketSizeMax 0x00004010 Integer 6‐11 MIKROTRON GmbH 6 ‐ 2... -
Page 46: Standard
Access unsigned integer Type — bits 31 ‐ 16 major revision 15 ‐ 00 minor revision E.g. devices compliant to revision 1.1 of the specification shall Remark return the value 0x00010001. MIKROTRON GmbH 6 ‐ 3... -
Page 47: Xmlmanifestsize
0 SchemaMajorVersion; 23 ‐ 16 major version number of the XML file 15 ‐ 8 SchemaMinorVersion; minor version number of the XML file 7 ‐ 0 SchemaSubMinorVersion; sub‐minor version num‐ ber of the XML file MIKROTRON GmbH 6 ‐ 4... -
Page 48: Xmlschemeversion
This feature is meant for devices supporting the IIDC2 protocol (sec‐ not supported. tion 2.2 ref. 6) and will provide the starting address of the IIDC2 regis‐ ter space. read Access unsigned integer Type — 0x00000000 MIKROTRON GmbH 6 ‐ 5... -
Page 49: Xmlurladdress
GenICam XML file in the flash memory of the camera. The file can be read starting at address 8001000 and has a length of 16C34 Bytes. MIKROTRON does not support strings that reference a XML file located on the vendors homepage. DeviceVendorName This register provides the name of the manufacturer of the device as a string. -
Page 50: Devicemodelname
This register provides the model name of the device as a string. read Access string[0...32] Type — model name Example: MC2586 Remark DeviceManufacturerInfo This register provides extended manufacturer‐specific information about the device as a string. read Access string[0...48] Type — manufacturer information Example: MIKROTRON GmbH Remark MIKROTRON GmbH 6 ‐ 7... -
Page 51: Deviceversion
27 ‐ 29 FPGA version sub minor number DeviceSerialNumber This register provides the serial number for the device as a NULL‐terminated string read Access string[0...16] Type — serial number of the camera Example: 000000000000157 Remark MIKROTRON GmbH 6 ‐ 8... -
Page 52: Deviceuserid
PixelFormat PixelFormatAddress manufacturer‐specific address of DeviceTapGeometry DeviceTapGeometryAddress manufacturer‐specific address of Image1StreamID Image1StreamIAddress Manufacturer‐specific addresses allow non‐GenICam applications or black‐box format converters, to support the standard use‐case and allow continuous acquisition and display of images. MIKROTRON GmbH 6 ‐ 9... -
Page 53: Deviceconnectionid
Access unsigned integer Type host link ID host link ID The value 0x00000000 is reserved to indicate an unknown Host Remark ID. All writings to device extension connection will be ignored. MIKROTRON GmbH 6 ‐ 10... -
Page 54: Controlpacketsizemax
4 Bytes stream packet data size in multiples of 4 Bytes The device can use any packet size it wants to up to this size. Remark A connection reset sets the value to 0x00000000. MIKROTRON GmbH 6 ‐ 11... -
Page 55: Connectionconfig
Device to operate in default mode. This feature is used to start the camera with the default configuration that is stored in the custom profiles. read Access unsigned integer Type — 0x00000000 Remark MIKROTRON GmbH 6 ‐ 12... -
Page 56: Testmode
It holds a valid device connection ID 0 … n‐1, or n for the optional high‐speed up‐connection. read / write Access unsigned integer Type 0x00000000...0x00000003 0x00000000...0x00000003 A connection reset sets the value to 0x00000000. Remark MIKROTRON GmbH 6 ‐ 13... -
Page 57: Testerrorcount
Writing 0x0000000000000000 into this register will reset to zero the transmitted connection packet count for the connection Remark referred to by the register TestErrorCountSelector. A connection reset sets all connection test counters to zero. MIKROTRON GmbH 6 ‐ 14... -
Page 58: Testpacketcountrx
Access integer Type bits 1 ‐ 30: reserved; shall be 0 ON = 1 OFF = 0 0 if high speed up‐connection is OFF 1 if high speed up‐connection is ON MIKROTRON GmbH 6 ‐ 15... -
Page 59: Device Control
CHAPTER Device Control The chapter provides the only command on device control which is used to reset the camera. -
Page 60: Introduction
Device Control Introduction There is only one command to reset the camera. DeviceReset This feature resets the device into power‐up state. write Access unsigned integer Type 0x00000001 — length of 4 Bytes Remark MIKROTRON GmbH 7 ‐ 2... -
Page 61: Image Format Control
CHAPTER Image Format Control The chapter provides information on the image format control. You learn how to • read the size of the sensor • read the max. height and width of an image • read/write the pixel format • read the TapGeometry •... -
Page 62: Introduction
Integer 8‐3 Height Integer 8‐3 OffsetX Integer 8‐3 OffsetY Integer 8‐4 SensorWidth Integer 8‐4 SensorHeight Integer 8‐4 WidthMax Integer 8‐5 HeightMax Integer 8‐5 PixelFormat Enumeration 8‐5 TapGeometry Enumeration 8‐6 Image1StreamID Integer 8‐6 DeviceScanType Enumeration 8‐6 MIKROTRON GmbH 8 ‐ 2... -
Page 63: Regionselector
ON: ROI activated OFF: ROI deactivated region mode region 0 cannot be disabled Remark RegionDestination This feature allows to select the destination of the image stream. read / write Access enumeration Type stream0 region destination MIKROTRON GmbH 8 ‐ 3... -
Page 64: Width
Horizontal offset from the origin to the region of interest (in pixels). read / write Access unsigned integer Type 0 … OffsetXMax horizontal offset the maximal offset equals to SensorWidth. The offset has to be Remark incremented by 64 pixels. MIKROTRON GmbH 8 ‐ 4... -
Page 65: Offsety
1 line. SensorWidth Effective width of the sensor in pixels. read only Access unsigned integer Type — sensor width SensorHeight Effective height of the sensor in pixels. read only Access unsigned integer Type — sensor height MIKROTRON GmbH 8 ‐ 5... -
Page 66: Widthmax
BayerGR8 / GR10 order of the Bayer pattern in a color image ( chapter Bayer Color Filter) see above the available pixel formats depend on the camera type con‐ Remark nected MIKROTRON GmbH 8 ‐ 6... -
Page 67: Tapgeometry
This feature returns the stream ID of the primary image stream of the device. read only Access unsigned integer Type — 0x00000000 DeviceScanType This feature returns the value of the camera type (area scan). read only Access enumeration Type — Areascan (0x00000000) MIKROTRON GmbH 8 ‐ 7... -
Page 68: Analog Control
CHAPTER Analog Control The section provides information on how to control the brightness of an image by setting: • black level... -
Page 69: Introduction
0 (which is reserved for a shade of gray). It it is too small, it will deliver a pixel value of 0 for a shade of gray. read/write Access enumeration Type 0 to 255 current black level value can be incremented by 1 Remark MIKROTRON GmbH 9 ‐ 2... -
Page 70: Analog Gain
Increasing the analog gain value unfortunately reduces the dynamic range as well as the image quality. . read/write Access integer Type in three steps: X1, X2, and X3 current analog gain value Remark MIKROTRON GmbH 9 ‐ 3... -
Page 71: User Set Control
CHAPTER User Set Control The chapter provides information on how to • save the current camera configuration into the internal Flash memory of the camera • load a saved configuration • set the default configuration... -
Page 72: Introduction
Access command Type If the selected User Set has not been defined previously an error message occurs. Remark The default user set is a set of factory settings predefined by the MIKROTRON. MIKROTRON GmbH 10 ‐ 2... -
Page 73: Usersetsave
UserSet1 selects the first user set UserSet2 selects the second user set UserSet3 selects the third user set active default user set The user set selector Default is preselected. Remark MIKROTRON GmbH 10 ‐ 3... -
Page 74: Custom Features
CHAPTER Custom Features The chapter informs about • the connected device on page 11‐3... -
Page 75: Introduction
AnalogValue Integer 10‐5 InfoFieldFrameCounterEnable Boolean 11‐5 InfoFieldTimeStampEnable Boolean 10‐7 InfoFieldRoiEnable Boolean 10‐7 FixedPatternNoiseReduction Enumeration 11‐5 TxLogicalConnectionReset This feature resets the next packet transmission to connection 0. write Access command Type ‐ ‐ guru feature Remark MIKROTRON GmbH 11 ‐ 2... -
Page 76: Deviceinformationselector
0.5 degrees Celsius see row IN First set the selector to define the data you want to read, then Remark read the data by reading the register DeviceInformation (see below). MIKROTRON GmbH 11 ‐ 3... -
Page 77: Deviceinformation
0x00000040 for 32 degree Celsius 0xFFFFFF2C for ‐2 degree Celsius Model number, hardware revision, FPGA version, and firmware version are also Remark included in the string of the 'DeviceVersion' Bootstrap feature. MIKROTRON GmbH 11 ‐ 4... -
Page 78: Analogregistersetselector
/ write Access integer Type 0...15 active register incremented by 1 Remark AnalogValue This feature holds the analog value to read/write. read / write Access integer Type 0...1023 active value incremented by 1 Remark MIKROTRON GmbH 11 ‐ 5... -
Page 79: Infofieldframecounterenable
ROI is the same. For cameras without the Multi‐ROI feature or if only one ROI is defined, this value is always 1. In 10 bit mode the bits 1 … 0 in each pixel will be set to 0; Remark guru feature MIKROTRON GmbH 11 ‐ 6... -
Page 80: Infofieldtimestampenable
MSB with 256 and add the LSB to the multiplied HSB. Example: ROI width = pixel 10 and 11; value of pixel 10 = 224, Remark value of pixel 11 = 1 ROI width = 1 X 256 + 224 = 640 guru feature MIKROTRON GmbH 11 ‐ 7... -
Page 81: Fixedpatternnoisereduction
Fixed Pattern Noise. This feature reduces FPN by subtracting the dark current of pixels. read/write Access enumeration Type ON: MIKROTRON’s pixel FPN reduction is activated in order to improve the quality of the image OFF: MIKROTRON’s FPN is deactivated status (ON/OFF) MIKROTRON GmbH 11 ‐ 8... -
Page 82: I/O Control
CHAPTER I/O Control The chapter describes the features of I/O Control used to • change the signal level of a signal • select the output OUT1 or OUT2 to output signals • invert the output level • send a static level of a variable to OUT1 or OUT2... -
Page 83: Introduction
LineSource and LineInverter. Up to now, there are two output lines that can be selected: either OUT0 or OUT1. read/write Access enumeration Type OUT0 OUT1 selected output of the Hirose connector expert feature Remark MIKROTRON GmbH 12 ‐ 8... -
Page 84: Linesource
This feature controls whether the level of the output signal will be inverted or not. read/write Access enumeration Type inverted = 1 not inverted = 0 setting: inverted or not inverted default is 0 (not inverted); expert feature Remark MIKROTRON GmbH 12 ‐ 9... -
Page 85: Digital Control
CHAPTER Digital Control The section provides information on how to control the brightness of an image by setting: • gamma • digital gain... -
Page 86: Introduction
It is recom‐ mended to be used for 8‐bit‐images only. read/write Access float Type min: 1 ‐ 4 max: 1 ‐ 4 digital gain can be de‐/incremented in steps of 0.25 Remark MIKROTRON GmbH 13 ‐ 2... -
Page 87: Technical Data
APPENDIX Technical Data... -
Page 88: Sensor
Dimensions (H x W x D) 80 x 80 x 81 mm (F mount) between +5 and +50 °C Case temperature 450 g (C mount) Weight 490 g (F mount) C or F mount Lens mount MIKROTRON GmbH A ‐ 2... -
Page 89: Spectral Response
APPENDIX Spectral Response... -
Page 90: Monochrome And Color Version
Spectral Response Monochrome and Color Version The first chart below shows the spectral sensitivity of the monochrome and the second chart spectral sensitivity of the color sensor with Bayer pattern filter on the sensor glass lid. MIKROTRON GmbH B ‐ 2... -
Page 91: Bayer Pattern
APPENDIX Bayer Pattern... -
Page 92: Color Filter Array
Bayer Pattern Color Filter Array The sensor glass lid of MIKROTRON’s EoSens color cameras is covered with a Bayer color filter. In order to get the color information, the imaging software has to decode the information of each pixel into RGB by using the values of its neighbor pixels. -
Page 93: Conclusions
2. A Bayer pattern image has to have an even number of pixels and an even number of lines. 3. Changing the image size can only be done by steps of 2 in the horizontal and vertical direction. MIKROTRON GmbH C ‐ 3... -
Page 94: Camera Dimensions
APPENDIX Camera Dimensions... -
Page 95: Mc1186 And 1187
Camera Dimensions MC1186 and 1187 Rear View MIKROTRON GmbH D ‐ 2... -
Page 96: Side Views
Camera Dimensions Side Views There are three side views available. Side View without adapter MIKROTRON GmbH D ‐ 3... -
Page 97: Side View With C Mount Adapter
Camera Dimensions Side View with C mount adapter Distance from the active surface of the sensor to the mount adapter: 9.68 mm Side View with F mount adapter MIKROTRON GmbH D ‐ 4... - Page 98 This 1.1CXP Reference Guide was produced on 8th of April 2019 MIKROTRON GmbH Landshuter Str. 20-22 D-85716 Unterschleissheim / Germany Phone: 0049 (0)89 7263420 www.mikrotron.de info@mikrotron.de Copyright © 2019 Mikrotron GmbH...
