Mikrotron EoSens 3CL Manual

Hide thumbs Also See for EoSens 3CL:
Table of Contents

Advertisement

Quick Links

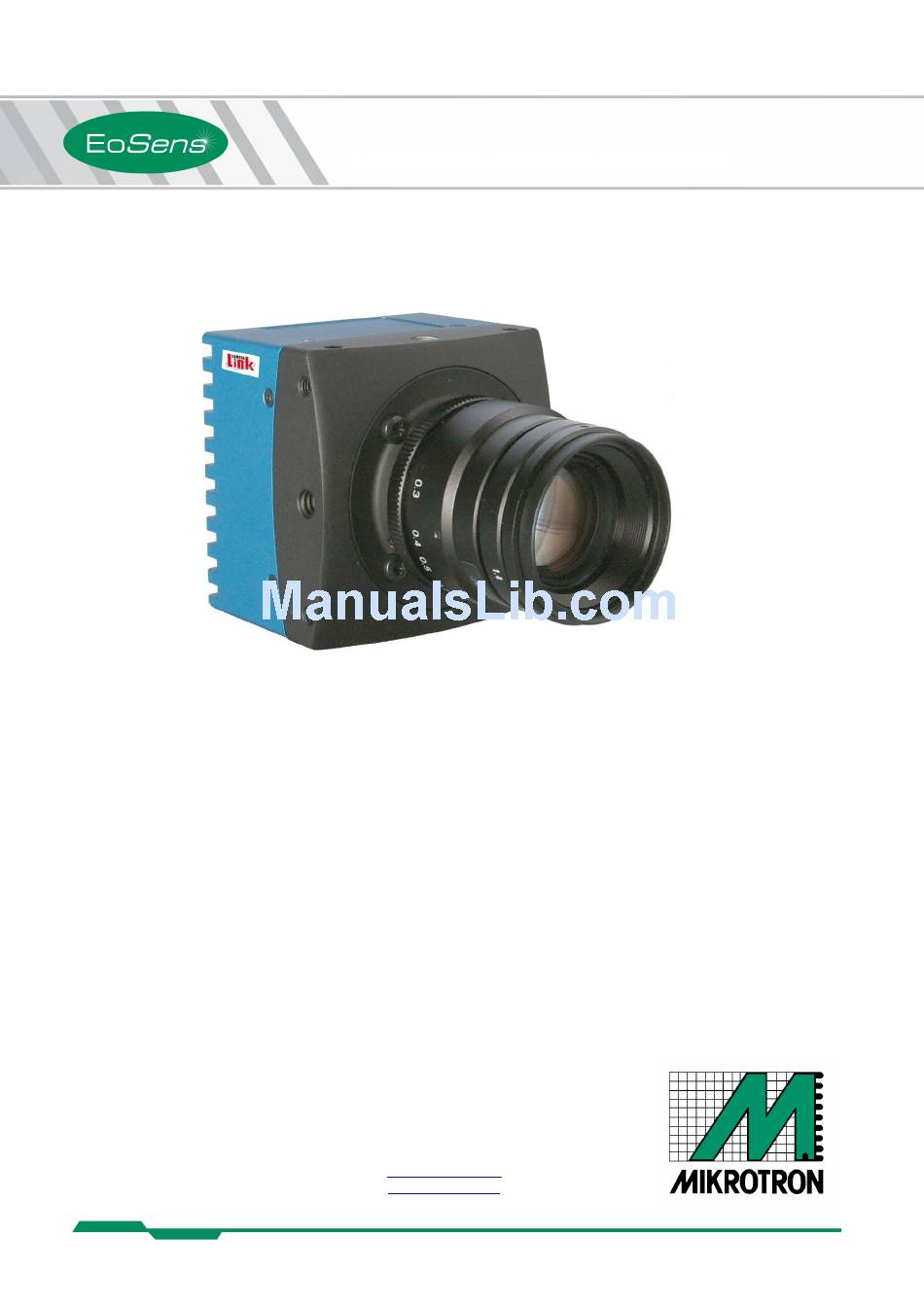

EoSens 3CL Camera Manual
Camera-Firmware:
Camera ID:
Functions described in this manual may not be available with firmware versions prior than above mentioned.
Information presented in this publication has been carefully checked for reliability; however, no responsibility is
assumed for inaccuracies. The information contained in this document is subject to change without notice.
Copyright © 2010 Mikrotron GmbH
Mikrotron GmbH
Landshuter Str. 20-22
D-85716 Unterschleissheim
Germany
®
E
S
3CL C
O
ENS
• H
S
• H
IGH
ENSITIVITY
Rev. 1.01
B2.04-V1.00-F1.00-G1.00
MC3010-11
Tel.: +49 89 726342 00
Fax: +49 89 726342 99
info@mikrotron.de
www.mikrotron.de
M
AMERA
S
• H
R
IGH
PEED
IGH
ESOLUTION
ANUAL
•

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EoSens 3CL and is the answer not in the manual?

Questions and answers

Related Manuals for Mikrotron EoSens 3CL

Summary of Contents for Mikrotron EoSens 3CL

  • Page 1 • H • H • H • ENSITIVITY PEED ESOLUTION EoSens 3CL Camera Manual Rev. 1.01 Camera-Firmware: B2.04-V1.00-F1.00-G1.00 Camera ID: MC3010-11 Functions described in this manual may not be available with firmware versions prior than above mentioned. Information presented in this publication has been carefully checked for reliability; however, no responsibility is assumed for inaccuracies.

  • Page 2: Table Of Contents

    EoSens 3CL Camera Manual Table of contents 1 General......................4 1.1 For customers in the U.S.A..........................4 1.2 For customers in Canada..........................4 1.3 Pour utilisateurs au Canada.......................... 4 1.4 Life Support Applications..........................4 1.5 Declaration of conformity ..........................5 1.6 Warranty Note............................... 6 1.7 Remarks, Warnings............................
  • Page 3 9.6.2 10*8-bit assignment..........................41 9.7 Timing diagrams............................42 9.7.1 Free run with electronic shutter......................42 9.7.2 Pulsewidth mode..........................42 9.7.3 External sync with internal timer......................42 9.8 Mechanical dimensions..........................43 9.8.1 EoSens 3CL with C-Mount........................43 9.8.2 EoSens 3CL with F-Mount........................43...

  • Page 4: General

    Mik- rotron customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Mikrotron for any damages resulting from such improper use or sale.

  • Page 5: Declaration Of Conformity

    General EoSens 3CL Camera Manual 1.5 Declaration of conformity Mikrotron GmbH Manufacturer: Landshuter Str. 20-22 Address: 85716 Unterschleissheim Germany Camera MC3010, MC3011 Product: The dedicated products conform to the requirements of the Council Directives 2004/108/EG for the approximation of the laws of the Member States relating to electromagnetic consist- ency.

  • Page 6: Warranty Note

    General EoSens 3CL Camera Manual 1.6 Warranty Note Do not open the body of the camera. The warranty becomes void if the body is opened. 1.7 Remarks, Warnings This document contains important remarks and warnings. See the corresponding symbols: ...

  • Page 7: Introduction

    Introduction EoSens 3CL Camera Manual 2 Introduction The CMOS high speed camera EoSens 3CL is a high resolution camera with 1696x1710 pixel. Benefits of CMOS technology are high speed, random access to pixels with free programmab- ility and low power.

  • Page 8: Differences Between The Camera Types

    Introduction EoSens 3CL Camera Manual 2.3 Differences between the camera types The CMOS cameras are available in different versions depending on the supported features monochrome or color. Features Data Color Full C/F- max. frame- Image pre- width Camera Mount rate@...

  • Page 9: Hardware

    Hardware EoSens 3CL Camera Manual 3 Hardware 3.1 CameraLink ® interface CameraLink ® is designed for digital cameras in machine vision applications. The “Full Camera Link ® ” interface can transfer up to 850 Mbytes/sec. 3.1.1 Serial interface The communication via the serial interface is incorporated in the Base CameraLink ®...

  • Page 10: Getting Started

    Getting started EoSens 3CL Camera Manual 4 Getting started Before starting to operate the camera, make sure that the following equipment is available:  Camera EoSens 3CL  C-Mount/F-Mount lens  Mikrotron Support CD  Image processing system, e.g.: PC and software ...

  • Page 11: Initial Setup

    Initial setup EoSens 3CL Camera Manual 5 Initial setup The EoSens 3CL is delivered with initial parameters and therefore does not need to be con- figured via the serial link. 5.1 Serial number and firmware revision Serial number and firmware revision is provided in EoSens 3CL non volatile memory. Use :v command (Read serial number and firmware revision) to read serial number and firmware revision.

  • Page 12: User Profiles

    Initial setup EoSens 3CL Camera Manual 5.5 User profiles The user can store up to eight User Profiles in non volatile memory. All load or write commands exchange data between the Camera Profile and one of the eight user profiles.

  • Page 13: Configuration

    EoSens 3CL Camera Manual 6 Configuration The content of all EoSens 3CL registers is called a profile. There is space in non volatile memory for 17 profiles: The PowerUpProfile, 8 user profiles and 8 factory profiles. Any change of a specific register through the serial interface is immediately processed and written to the volatile part of the memory and gets lost when power goes down.

  • Page 14: Table Of Commands

    Configuration EoSens 3CL Camera Manual 6.1 Table of commands Syntax Value range Answer Comment Chapter :A<x> <x> = y,Y,n,N -- ² command acknowledge flag yes or no 6.9.5 or ‘y’,’n’ ³ :b<x> <x> = 0...4 -- ² Select baudrate 0 = 9600 (default), 1 = 19200, 6.9.6...

  • Page 15: Read Camera Information

    Configuration EoSens 3CL Camera Manual 6.2 Read camera information 6.2.1 Read serial number and firmware revision, command :v The serial number and the firmware revision can be read with the :v command. Command: Response (e.g.): #01234-B2.02-V2.02-F0.71-G0.09 Serial number FPGA CL firmware version...

  • Page 16: Read Power Information, Command :U

    Configuration EoSens 3CL Camera Manual 6.2.4 Read power information, command :U The camera disposes an internal voltage and current sensor that can be read out. The values are delivered as decimal ASCII characters. Command: :U<x> x=0 for current in mA...

  • Page 17: Profile Processing

    Configuration EoSens 3CL Camera Manual 6.3 Profile processing All camera settings are loaded or stored as complete data blocks (= Profiles). There are 17 profiles. Eight factory profiles, eight user profiles and a power up profile. Power Up Factory Factory...

  • Page 18: Output Mode

    Configuration EoSens 3CL Camera Manual 6.4 Output mode 6.4.1 CameraLink ® output mode, command :M Command: :M<x> <x> = 5, 6 Response: * ACK/NAK if acknowledge on <x> <x> = actual value Description: This command selects the CameraLink ® output mode.

  • Page 19: Image Quality

    Each EoSens 3CL camera possesses a factory calibrated reference image of the fixed pattern that will be applied to each output frame. Therefore EoSens 3CL can remove the noise very effective.

  • Page 20: Image Size And Position

    Configuration EoSens 3CL Camera Manual 6.6 Image size and position Image size and position within the Sensor is defined by four parameters: Block Description Value <aaa> Address of first pixel (x-start) 0…600 (modulo 64) <bbb> Address of first line (y-start) 0…6AC...

  • Page 21: Framerate And Shutter

    Configuration EoSens 3CL Camera Manual 6.7 Framerate and shutter 6.7.1 Setting the framerate, command :q Command: :q<xxxxxx> <xxxxxx> = 1…24155 Response: * ACK/NAK if acknowledge on <xxxxxx>' '<ss>'-'<zzzzzz> <xxxxxx> = actual value <ss> = minimal value <zzzzzz> = maximal value Description: This command sets the framerate in free run mode.

  • Page 22: Setting The Slopes For Dynamic Range Adjustment, Command :I

    Configuration EoSens 3CL Camera Manual 6.7.3 Setting the slopes for dynamic range adjustment, command :i Command: :i<s><x> :i<s><xx> :i<s>? <s> = 'n' ==> <x> = 1…2 Number of slopes <s> = 'd' ==> <xx> = 1…63h Dual slope in percent...

  • Page 23: Exposure Control

    6.8.1 Type of exposure, commands :h, :H and :t The EoSens 3CL can expose the images in free run mode or with an external signal on CC1. The external modes are used to synchronize EoSens cameras to each other or to an external event.

  • Page 24: Pulsewidth Mode

    Configuration EoSens 3CL Camera Manual 6.8.3 Pulsewidth mode In this mode an external signal starts exposure and the exposed image is output immediately after the exposure ends. Exposure time is defined by the width of the external EXP (CC1) signal. The exposure of the next image can be started while the last image is transferred or at a later time.

  • Page 25: Other

    Description: If a sequence of frames is to be recorded for long time at a high frame rate, it can be useful to mark the images for later identification or check for completeness. EoSens 3CL has a 32-Bit image counter whose count can replace the first four pixel of every image. It is in- cremented by every new image.

  • Page 26: Get Last Error, Command :B

    Configuration EoSens 3CL Camera Manual 6.9.3 Get last error, command :B Command: Response: 'OK' or 'ERROR: xx message' Description: This command reads the actual status of the camera. It can be used to check the status after power up or to get the reason why a command returned NAK.

  • Page 27: Eosens 3Cl Configuration Tool

    EoSens 3CL configuration tool EoSens 3CL Camera Manual 7 EoSens 3CL configuration tool The EoSens configuration tool must be installed on a Windows PC by means of the setup software. See also to download the latest version. www.mikrotron.de This software provides an almost self explaining user interface to modify any camera paramet- Since the serial interface is integrated in the CameraLink ®...

  • Page 28: Firmware

    EEPROM’s. Upon power up or reset the FPGA’s are loaded with this configuration. Configuration data can be downloaded via the serial interface. Mikrotron may provide configuration files (*.ibf) on request. After download of configuration data, this data is permanently stored in EEPROM and the FPGA is configured with the new data.

  • Page 29: Firmware Update Procedure

    EoSens 3CL Camera Manual 8.3 Firmware update procedure The EoSens 3CL firmware consists of 3 files. Mikrotron always provides these files as one package. Be sure to always update all 3 firmwares. Do not mix firmwares of different packages. Before you begin please ensure that you have the adequate application firmwares to load.
  • Page 30 Firmware EoSens 3CL Camera Manual  Click “Select file” and choose the appropriate file (see above):  Click “Send” and the file transfer will start immediately:  While loading the camera LED will blink red:  Upload of *.ibf files via serial link takes several minutes depending on the used baudrate.
  • Page 31 Firmware EoSens 3CL Camera Manual  Repeat these steps for sensor FPGA and CameraLink FPGA by choosing the „Mode“ in the drop down menu.  After all modules have been updated verify the versions in “EoSens” info screen. The new firmware version will be displayed. If the version is identical to the expected the...

  • Page 32: Firmware Update Troubleshooting

    Firmware EoSens 3CL Camera Manual 8.4 Firmware update troubleshooting If the update procedure was not successful the camera should be powered off and on and the control tool should be restarted. There are two possible errors. When repeating the update the baudrate should be left at 9600.
  • Page 33 Firmware EoSens 3CL Camera Manual 2. Possible error: One of the FPGA programs were not loaded successful. The camera confirms this with 3x red blink after power up. The ‘Info’ tab of the control tool shows ‘F0.00’ or ‘G0.00’. In this case just repeat the ‘Update FPGA firmware’ procedure.

  • Page 34: Technical Data

    Technical Data EoSens 3CL Camera Manual 9 Technical Data 9.1 Overview MC3010 Monochrome MC3011 Bayer Filter Number of pixel 1696 x 1710 Pixel size 8 x 8 µm Active area 13.57 (H) x 13.68 (V) mm Fill factor Sensitivity 1270 V.m²/W.s at 600 nm with microlens Full well charge 27000eˉ...

  • Page 35: Sensor Defect Specifications

    Technical Data EoSens 3CL Camera Manual 9.2 Sensor defect specifications Parameter Description Limit Up to a maximum of 25 Number of bright pixels allowed in the full window size of bright pixels allowed. The 1696x1710. Bright Pixels bright pixel defects are...

  • Page 36: Spectral Response

    Technical Data EoSens 3CL Camera Manual 9.3 Spectral response The charts below show the sensitivity of the monochrome and the color sensor with a bayer pattern filter on the sensor glass lid. The color camera is by default equipped with a UV/IR cut filter with a transmittance of 370-670nm resulting in a sensitivity shown in the second chart.

  • Page 37: Bayer Pattern Filter

    Technical Data EoSens 3CL Camera Manual 9.4 Bayer pattern filter The EoSens color camera has a bayer pattern filter on the sensor glass lid. To get the color in- formation the imaging software must decode the information. The pattern beginning from first...

  • Page 38: Connector Pinning

    Technical Data EoSens 3CL Camera Manual 9.5 Connector pinning ® 9.5.1 CameraLink connector, MDR-26 „Base CameraLink ® “ pinning: signal signal XCLK- XCLK+ SERTC+ SERTC- SERTFG- SERTFG+ CC1- CC1+ CC2+ CC2- CC3- CC3+ CC4+ CC4- „Full CameraLink ® “ pinning:...

  • Page 39: Circular Power Connector, 6-Pin

    Technical Data EoSens 3CL Camera Manual 9.5.2 Circular power connector, 6-pin Signal Voltage level 8…24V DC 8…24V DC STROBE_OUT LVTTL 3.3V DGND* *DGND ... digital GND for signal STROBE_OUT Manufacturer: Hirose Order no.: HR10A-7P-6S Before applying power to the camera we strongly recommend to verify the used ...

  • Page 40: Cameralink Bit Assignments

    Technical Data EoSens 3CL Camera Manual ® 9.6 CameraLink bit assignments 9.6.1 Full CameraLink ® 8*8-bit assignment The following table shows the bit assignment of eight adjacent pixels. All unused bits are set to logical LOW level; the SPARE outputs are set to logical HIGH level.

  • Page 41: 10*8-Bit Assignment

    Technical Data EoSens 3CL Camera Manual 9.6.2 10*8-bit assignment The table below shows the assignment of 10 adjacent pixels, 8-Bit each. This assignment is compatible to Basler’s A504 camera. Plug 1, CameraLink ® Plug 2, CameraLink ® Plug 2, CameraLink ®...

  • Page 42: Timing Diagrams

    Technical Data EoSens 3CL Camera Manual 9.7 Timing diagrams 9.7.1 Free run with electronic shutter In this mode the camera controls framerate and exposure time. At the strobe output (in power connector) there is a high signal while the camera exposes a picture.

  • Page 43: Mechanical Dimensions

    Technical Data EoSens 3CL Camera Manual 9.8 Mechanical dimensions 9.8.1 EoSens 3CL with C-Mount C-Mount 1" 4x W1/4" x7 8x M4x7 9.8.2 EoSens 3CL with F-Mount F-Mount 4x W1/4" x7 8x M4x7...
