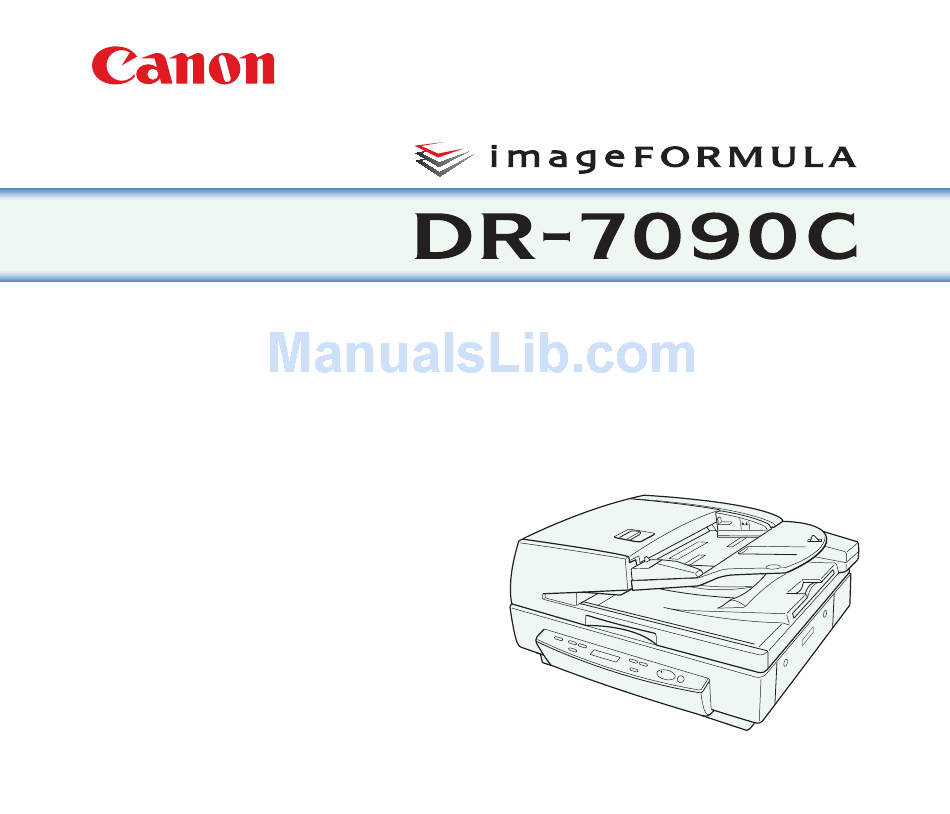

Page 1 User Manual Please read this manual before using the scanner. After you finish reading this manual, keep it in a safe place for future reference.
Page 2 If such changes or modifications should be made, you could be required to stop operation of the equipment. Canon U.S.A. Inc. One Canon Plaza, Lake Success NY 11042, U.S.A. Tel. No. (516)328-5000 RADIO INTERFERENCE REGULATIONS (For 120 V models)
Page 3 DR-7090C: Model M11067 Trademarks • Canon and the Canon logo are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries. • imageFORMULA is a registered trademark of Canon Electronics Inc.
Page 4: Introduction

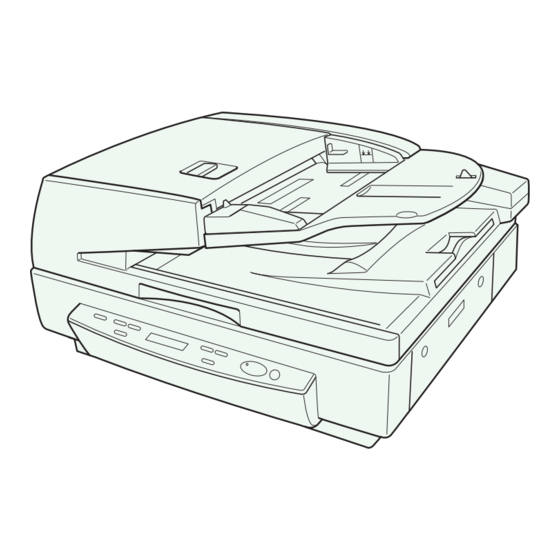

Introduction Thank you for purchasing the Canon imageFORMULA DR-7090C Document Scanner. Please read this and the following manuals thoroughly before using the scanner to become acquainted with its capabilities and make the most of its many functions. After reading the manuals, store them in a safe place for future reference.
Page 5: Symbols Used In This Manual
Symbols Used in This Manual The following symbols are used in this manual to explain procedures, restrictions, handling precautions, and instructions that should be observed for safety. WARNING Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the scanner safely, always pay attention to these warnings.
Page 6 User Manual Hardware Please read this manual before using the scanner. After you finish reading this manual, keep it in a safe place for future reference.
Page 7: Table Of Contents
Table of Contents Introduction...iii Manuals for the Scanner ... iii Symbols Used in This Manual ... iv How This Manual is Organized...iv Chapter 1 Before You Start Using the Scanner 1. Important Safety Instructions...1-2 Installation Location... 1-2 Removing the Transportation Screw ... 1-2 Installing the Securing Braces ...
Page 8 2. Troubleshooting...6-5 Trouble Categories ... 6-5 Problem and Solution ... 6-5 3. Uninstalling the Software...6-11 Uninstalling the ISIS/TWAIN Driver ... 6-11 Chapter 7 Appendix 1. Specifications ...7-2 Specifications for the Scanner... 7-2 Options ... 7-3 Consumables... 7-3 External Dimensions... 7-4 2.
Page 9 Chapter 1 Before You Start Using the Scanner 1. Important Safety Instructions ... 1-2 Installation Location ...1-2 Removing the Transportation Screw...1-2 Installing the Securing Braces...1-3 Power ...1-3 Checking the Rear Cables ...1-4 Opening and Closing the Feeder ...1-4 Moving the Scanner ...1-4 Handling ...1-5 Disposal ...1-7 2.
Page 10: Important Safety Instructions
Important Safety Instructions To ensure the safe operation of this scanner, be sure to read the safety warnings and precautions described below. Installation Location The performance of this scanner is affected by the environment in which it is installed. Make sure that the location where the scanner is installed meets the following environmental requirements.
Page 11: Installing The Securing Braces
● Keep the area around the power plug clear of objects so that the power cord can be disconnected easily in an emergency. ● If you have any questions regarding the power supply, contact your local authorized Canon dealer or service representative for further information.
Page 12: Checking The Rear Cables
Checking the Rear Cables Before connecting to the computer, make sure that cable connectors are properly connected at the rear of the scanner. Opening and Closing the Feeder ● Open the feeder carefully and slowly, taking care to avoid letting the feeder fall over backwards. Chapter 1 Before You Start Using the Scanner ●...
Page 13: Handling
● Make sure to disconnect the interface cable and power cord when moving the scanner. If the scanner is carried with these items connected, the plugs and connectors may be damaged or cause the scanner to fall and result in personal injury or damage to the scanner.
Page 14 Should the scanner ever become damaged, immediately turn the power switch OFF, and disconnect the power plug from the power outlet. Then, contact your local authorized Canon dealer or service representative to have the unit serviced. ■ Before moving the scanner, make sure to turn the power switch OFF, and disconnect the power plug from the power outlet.
Page 15: Disposal
■ Turn OFF the power switch for safety when not using the scanner for a long period of time, such as overnight. Also, turn OFF the power switch, and disconnect the power cord from the power outlet for safety when the machine will not be used for an extended period of time, such as during consecutive holidays.
Page 16: Features
Features The main features of the DR-7090C are described below. Scanner Features ● High-speed scanning The feeder supports scanning of LTR/A4-size documents at speeds up to 70 pages per minute. ● Single-pass duplex (two-side) scanning When scanning two-sided documents with the feeder, the front and back sides of the document are scanned simultaneously.
Page 17 Detection Functions ● Auto Paper Size Detection The document page size is detected before scanning. Fixed-Size Scanning Auto-Size Detection ● Text Orientation Detection The text orientation on each page is detected, and the scanned image is rotated in 90-degree increments as necessary for normalization.
Page 18 ● MultiStream Function The scanner supports MultiStream, which, depending on the software application, can create two images with different scanning conditions from a single scan pass. However, this function is only available when using CapturePerfect 3.0 (supplied with the scanner) or another application program that supports the Multi- Stream function.
Page 19: Names And Functions Of Parts
Names and Functions of Parts The names and functions of the DR-7090C parts are shown below. Feeder a Feeder Cover Open this cover to clear document jams and clean the rollers. (See p. 3-22 and p. 5-6.) b Opening Lever Operate this release lever when opening or closing the feeder cover.
Page 20: Rear
Rear a Air Vents b USB Connector Connect a Hi-Speed USB 2.0 compatible USB cable here. (See p. 2-6.) c DIP Switches Configure these switches to specify the SCSI ID or terminator ON or OFF. (See p. 2-7.) d SCSI Connectors Connect a SCSI cable (50-pin half pitch, pin type) here.
Page 21 e Job Keys Use these keys to scroll through registered job numbers (01 through 99) on the display panel. (See “About the Job Function” on p. 3-11.) Pressing the Start key while a job number is displayed starts the scanning of the document and forwards the scanned image to the destination registered for the job.
Page 22: Optional Products
Optional Products The following options can be purchased and used on the DR-7090C, if they are necessary. Contact your sales representative. Stamp Unit The stamp unit affixes a stamp on document pages that are scanned using the feeder. The application can be used to turn stamping on or off.
Page 23: Chapter 2 Setup
Chapter 2 Setup 1. Setup Procedures ... 2-2 2. Installation Requirements ... 2-3 3. Software Installation ... 2-4 About the Setup Menu ...2-4 4. Connecting the Scanner to the Computer ... 2-6 Interface Connector Locations ...2-6 Using a USB Connection ...2-6 Using a SCSI Connection ...2-7 5.
Page 24: Setup Procedures
Setup Procedures Perform the following setup procedures to prepare the scanner for use. Step 1: Confirm the installation requirements. Step 2: Install the Software. (See p. 2-4) Step 3: Connect the scanner to the computer. Step 4: Turn the power ON (Scanner recognition). IMPORTANT •...
Page 25: Installation Requirements
USB interface is USB Full-Speed (equal to USB 1.1). – Use the most recently available USB 2.0 driver provided by Microsoft. Contact your local authorized Canon dealer for more detailed information. – Not all USB interfaces provided as standard with personal computers are guaranteed.
Page 26: Software Installation
Software Installation This section describes how to install the software. About the Setup Menu When you insert the included Setup disc into the computer’s CD drive, the menu shown below should appear. If the menu does not appear, use Explorer to access the CD drive and execute the file “SETUP.EXE”.
Page 27 ■ The Custom Installation Screen This screen appears when you click “Custom Installation” on the Menu screen. Select the check boxes next to the software that you want to install. Click [Install] to install the selected software. ■ The Read Manual Screen From this screen you can select one of the supplied electronic manuals to read: the Easy Start Guide (a printed copy is also supplied), the Reference Guide, the User...
Page 28: Connecting The Scanner To The Computer
Connecting the Scanner to the Computer There are two methods for connecting the DR-7090C scanner to a computer: a USB connection to a standard USB port built in to the computer, or SCSI connection to a SCSI card installed in an expansion slot of the computer. Select the method that is best suited to your computer environment.
Page 29: Using A Scsi Connection
Using a SCSI Connection IMPORTANT Make sure that the computer is turned OFF before connecting the SCSI cable. If the cable is connected while the computer is on, the scanner may not be properly recognized by the computer. Shut down Windows and turn the computer’s power OFF.
Page 30 <When only the scanner is connected to your computer, or when the scanner is the last device in a daisy chain> Set the terminator switch to ON. In such a connection, make sure that the terminators on all other SCSI devices are set to OFF. Terminator ON Terminator OFF <When another SCSI device is the last device in a...
Page 31: Turning The Power On (Scanner Recognition)
Turning the Power ON (Scanner Recognition) When you turn ON the computer and the scanner, the Windows Plug and Play function recognizes the scanner and automatically installs the required device driver. About the Power Switch The power switch is located on the scanner’s side panel, and the following appears on the display panel when the power switch is turned ON.
Page 32 • Windows XP • Windows Vista • The DR-7090C device driver is installed in Device Manager under [Imaging Devices] as [CANON DR-7090C USB] or [CANON DR-7090C SCSI]. • From the Control Panel, you can display the Device Manager using the following procedure: –...
Page 33: Chapter 3 Basic Operation
Chapter 3 Basic Operation 1. Documents... 3-2 Types of Documents ...3-2 Feeder Capacity...3-3 2. Placing Documents onto the Scanner ... 3-4 Loading a Document into the Feeder...3-4 Positioning a Document on the Flatbed (Platen Glass) ...3-5 3. Document Feeding ... 3-8 Scan Procedure ...3-8 4.
Page 34: Documents
Documents This section describes the various types of documents that can be scanned with the feeder. CAUTION Handle documents with care. Improper handling of paper can cause paper cuts or other personal injury. Types of Documents The following are the dimensions of the documents that can be fed by the feeder: Width: 55"...
Page 35: Feeder Capacity
• To avoid paper jams, damage to documents, and a scanner malfunction, do not feed the following types of paper. For such documents, scan one page at a time from the flatbed (platen glass). Wrinkled or creased Carbon-backed paper paper Curled paper Coated paper Torn paper...
Page 36: Placing Documents Onto The Scanner
Placing Documents onto the Scanner This section describes how to load documents into the feeder and how to position a document page on the flatbed (platen glass) for scanning. CAUTION Handle documents with care. Improper handling of paper can cause paper cuts or other personal injury. Loading a Document into the Feeder Perform the following steps to load the pages of a document into the feeder for scanning.
Page 37: Positioning A Document On The Flatbed (Platen Glass)
• When scanning NCR paper that is 11" x 17"/A3 or other large sizes, as well as paper that is very thin, the document may occasionally get caught in the paper eject mechanism. In this case, place an auxiliary sheet of paper in the document eject tray before scanning the document.
Page 38 Place the document onto the flatbed (platen glass) with the scanning side facing downwards. With the scanning side of the document facing downwards, align its corner with the arrow mark in the upper left corner of the flatbed (platen glass). Chapter 3 Basic Operation Slowly and carefully lower the feeder back down.
Page 39 Hint Leave the feeder raised when scanning thick documents like books, or operate the feeder as shown in the procedure below. 1. Open the feeder. 2. While pressing on the bottom of the feeder a, pull the feeder down and forward b. Chapter 3 Basic Operation 3.
Page 40: Document Feeding
Document Feeding This section describes the various different document feeding modes that are available, and the basic steps to use each mode for scanning. CAUTION • Avoid wearing loose fitting clothing, dangling jewelry, long ties, or even long hair that could become entangled with moving parts, especially the rollers that feed the paper.
Page 41: Panel Feeding
IMPORTANT See “Placing Documents onto the Scanner” on p. 3-4 information about placing documents onto the scanner. From the application you are using, execute the required command to start scanning. Scanning starts. When scanning of the document is complete, the application goes into the Ready Mode.
Page 42: Automatic Feeding
■ Automatic Feeding Automatic feeding can be used when feeding a document from the feeder. After you execute the scan start command from the application, the scanner starts scanning automatically whenever it detects a document loaded into the feeder. Select [Automatic Feeding] in [Feeding Option] on the scanner settings screen.
Page 43: Scanning
Use the following procedure to execute jobs that have been registered by the Job Registration Tool. Set the Events function. Function” on p. 3-13.) From the Windows task bar, click [Start] ➔ click [All Programs] ➔ [Canon DR-7090C] ➔ [Job Registration Tool]. 3-11 Chapter 3 Basic Operation (See...
Page 44 Job Registration Tool starts. Use Job Registration Tool to register a job. Hint For details on how to register jobs with Job Registration Tool, Chapter 9 “Job Registration Tool Settings”. Chapter 3 Basic Operation Press the Job [ ] key to enter the Job Mode. The job number screen appears on the display panel.
Page 45 Double-click [Scanners and Cameras]. The Scanners and Cameras dialog box appears. Hint The dialog box that appears may vary depending on the Windows version you are using. Chapter 3 Basic Operation Select [Canon DR-7090C] and click [Properties]. Click the [Events] tab. 3-13...
Page 46: Captureperfect 3.0
Chapter 3 Basic Operation CapturePerfect 3.0 CapturePerfect 3.0 is an ISIS-compatible application developed for Canon document scanners. CapturePerfect 3.0 includes the following modes. Select the desired scan mode from the Scan menu to perform scanning. For more information on CapturePerfect 3.0, refer to the CapturePerfect 3.0 Operation Guide.
Page 47: Using Captureperfect
Scan Batch to File Documents are scanned with the preset scanning conditions, and the scanned image data is saved to a specified folder. Scan Batch to Printer Documents are scanned with the preset scanning conditions, and the scanned image data is printed on a specified printer.
Page 48 The [Select Scanner] dialog box opens. Select [Canon DR-7090C] and click [Settings]. The [Configure Device Settings] dialog box opens. IMPORTANT If [Canon DR-7090C] is not displayed in [Scanner Name], you must re-install the ISIS/TWAIN driver. Set the [Default Page Size]. IMPORTANT If you select [Default] in the ISIS driver properties dialog box, that setting is applied here.
Page 49 The Properties dialog box for the scanner driver opens. Set the scan settings. (See “ISIS/TWAIN Driver Settings Dialog Boxes” on p. 8-4.) Hint • To scan using the flatbed, set the scanning side to [Flatbed] or [Auto]. • If the scanning side is set to [Auto], documents placed in the feeder tray will be scanned.
Page 50 When the [Continue Scanning] dialog box appears, verify that a document is loaded, and click either [Continue Scanning] or [Stop Scanning]. Hint If Use Continue Scanning dialog in the [Scan] menu is not checked, scanning finishes without displaying the Continue Scanning dialog box.
Page 51: Using Patchcode Sheets
Using Patchcode Sheets A patchcode sheet is a sheet on which a special pattern is printed that allows file separation without interrupting scan processes. Patchcode sheets can be used with applications that support patchcode file separation. When the patchcode sheet is scanned and the pattern is recognized, the document pages that follow can be saved as a separate file.
Page 52: How To Use Patchcode Sheets
How to Use Patchcode Sheets This section describes how to use patchcode sheets with CapturePerfect 3.0. Print the patchcode sheets on a printer. IMPORTANT • Print (at original size) PATCH T (A4) and PATCH II (A4) sheets on A4 paper, or PATCH T (LTR) and PATCH II (LTR) on LTR paper.
Page 53: Count Only Mode
Count Only Mode In Count Only Mode, document pages are sent through the feeder in order to count them. The documents are not scanned in this mode. Operations for Count Only Mode can be performed without a computer. Press the Menu key and display “Count Only Mode” on the display panel.
Page 54: Clearing Paper Jams
Clearing Paper Jams A paper jam is indicated when scanning stops unexpectedly and the message shown below appears on the display panel. Use the procedure below to clear a paper jam. J a m P x x x Hint • The document set indicator on the feeder cover flashes when a paper jam occurs. •...
Page 55 Rotate the dial on your side of the scanner to remove any paper jammed inside the feeder. Hint • Rotating the dial to the right a reverse feeds any paper jammed inside the feeder. Gently pull the paper from the feeder as you rotate the dial. •...
Page 56: Paper Jam Causes
Remove any paper jammed inside the feeder. Slowly and carefully close the feeder. CAUTION Lower the feeder slowly, taking care to avoid pinching your fingers. Failure to do so might result in personal injury. Chapter 3 Basic Operation Paper Jam Causes Any of the following factors can cause paper to jam.
Page 57: Chapter 4 User Modes
Chapter 4 User Modes 1. About the User Modes ... 4-2 User Mode Functions ...4-2 How to Set the User Modes ...4-3...
Page 58: About The User Modes
About the User Modes You can configure the scanner settings with the user modes described below. User Mode Functions User mode functions are as follows: ■ Count Only Mode C o u n t O n l y M o d e [ O F F ] ON: Counts the number of pages in a document using stand-alone scanner operations.
Page 59: How To Set The User Modes
■ Setting SCSI Transfer Speed S C S I S p e e d [ 2 0 ] Set the maximum value for synchronous transfer speed for the SCSI interface. 20: 20 Mbyte/sec (Ultra SCSI) (default) 10: 10 Mbyte/sec (First SCSI) 5: 5 Mbyte/sec (non-synchronous) If the scanner does not operate correctly when the output speed is set to ‘20’...
Page 60: Chapter 5 Maintenance
Chapter 5 Maintenance 1. Changing the Stamp Cartridge ... 5-2 2. Daily Cleaning... 5-4 About the Cleaning Cloth and Cleaning Paper ...5-4 Cleaning the Main Unit...5-4 Cleaning the Flatbed (Platen Glass) and Pressure Board ...5-5 Cleaning the Feeder...5-6 Cleaning the Power Plug...5-12...
Page 61: Changing The Stamp Cartridge
Changing the Stamp Cartridge When using the optional stamp unit (see p. 1-14) the stamp cartridge whenever the stamp mark becomes smudged or faint. Contact your sales reprentative or service representative to purchase a new stamp cartridge. Open the feeder cover. Operate the opening lever, and then slowly raise the cover until it stops.
Page 62 Close the feeder guide and inner cover. CAUTION Take care to avoid pinching your fingers when closing the feeder guide and inner cover. Close the feeder cover. CAUTION Take care to avoid pinching your fingers when closing the feeder cover. Chapter 5 Maintenance...
Page 63: Daily Cleaning
Daily Cleaning To maintain high-quality scanning, you should periodically clean the following: • Main unit • Flatbed (Platen glass) • Pressure Board • Feeder CAUTION • Before you clean the scanner, turn OFF the scanner and computer and disconnect the power cord from the power outlet. Otherwise, an electrical shock may result.
Page 64: Cleaning The Flatbed (Platen Glass) And Pressure Board
Cleaning the Flatbed (Platen Glass) and Pressure Board A dirty flatbed (platen glass) or pressure board can cause soiling of scanned images, or document size detection errors. Clean the flatbed (platen glass) and pressure board periodically. Open the feeder. CAUTION Open the feeder carefully and slowly, taking care to avoid letting the feeder fall over backwards.
Page 65: Cleaning The Feeder
Slowly and carefully close the feeder. CAUTION Lower the feeder slowly, taking care to avoid pinching your fingers. Failure to do so might result in personal injury. Cleaning the Feeder Without periodic cleaning, a problem may be caused on the scanned image or the document may become soiled.
Page 66 Wipe the 13 rollers on the feeder guide with a cloth moistened with plain water and thoroughly wrung out. Next, wipe the rollers dry with a soft, dry cloth. Grasp the tab in the front to open the feeder guide. Wipe the four rollers with a cloth moistened with plain water and thoroughly wrung out.
Page 67 Close the feeder guide. CAUTION Take care to avoid pinching your fingers when closing the feeder guide. Close the feeder cover. CAUTION Take care to avoid pinching your fingers when closing the feeder cover. Open the feeder. Wipe the feeder roller (white) and platen roller (black) with a cloth moistened with plain water and thoroughly wrung out.
Page 68 IMPORTANT When you open the feeder cover and turn the dial located in the front, the platen roller rotates. When cleaning the platen roller, rotate the roller slowly while wiping it. Dial Pull the lever on the upper part of the feeder to open the scanning area on the feeder.
Page 69 Attach the cleaning paper to the scanning area cleaning tool. Open the inner cover. Wipe the platen roller located behind the inner cover with a cloth moistened with plain water and thoroughly wrung out. Next, wipe the roller with a soft, dry cloth.
Page 70 Close the inner cover. CAUTION Take care to avoid pinching your fingers when closing the cover. Remove the cleaning paper from the scanning area cleaning tool, and place the cleaning tool inside the cover. Close the cover for the feeder’s scanning area. CAUTION Take care to avoid pinching your fingers when closing the cover.
Page 71: Cleaning The Power Plug
Slowly and carefully lower the feeder back down. CAUTION Lower the feeder slowly, taking care to avoid pinching your fingers. Failure to do so might result in personal injury. Cleaning the Power Plug If you leave the power plug connected to the power outlet for a long period of time, dust may accumulate at the power outlet, and cause a fire or electrical shock.
Page 72: Chapter 6 Practical Examples
Chapter 6 Practical Examples 1. Messages ... 6-2 2. Troubleshooting ... 6-5 3. Uninstalling the Software ... 6-11 Status Display ...6-2 Error Messages...6-3 Trouble Categories...6-5 Problem and Solution...6-5 Uninstalling the ISIS/TWAIN Driver...6-11...
Page 73: Messages
Messages There are two types of display panel messages: “status indicator messages” and “error messages” that appear when the scanner encounters a problem. Status Display The following messages appear on the display panel to indicate the scanner’s operating state: ■ Count Only Mode C o u n t O n l y M o d e...
Page 74: Error Messages
Error Messages When one of the following messages appears on the display panel, an error has occurred in the scanner. Follow the indicated procedure to resolve the error. ■ Cover Open C o v e r O p e n C x x x Error Code: C001 Cause: The feeder is open.
Page 75 Press any key on the operation panel to clear the message and enable normal scanning. Contact your local dealer or Canon service representative, and replace the reverse-side scanning sensor.
Page 76: Troubleshooting
Make sure that the cables at the rear of the scanner are properly connected, and then restart the scanner. If the message does not disappear after restarting the scanner, contact your local Canon dealer or service representative. W a i t . . .
Page 77 The scanner does not support your USB interface. Solution This product is not guaranteed to operate with all types of USB interfaces. Contact your local authorized Canon dealer or service representative for more information. Cause The scanner does not support the USB cable.
Page 78 ■ Scanning Is Not Performed If scanning does not start when it should, first confirm the following: ✔ Are the scanner and PC correctly connected with the proper cable? ✔ Is the scanner’s power switch turned ON? If this does not solve the problem, consider the following possible causes: Cause The ISIS/TWAIN driver and Job...
Page 79 Check your documents carefully before loading. • Replacement rollers can be purchased as consumables. If performance is not improved after cleaning the rollers, contact your local Canon dealer or service representative. If this does not solve the problem, consider the following possible problems and causes: Problem Cannot scan from the feeder.
Page 80 If lines still appear on the image even after you clean the scanning glass and rollers, the scanning glass inside the scanner may be scratched. Contact your local authorized Canon dealer or service representative. Chapter 6 Practical Examples Problem The scanned image is abnormal for certain documents.
Page 81 ■ The Display Panel Does Not Display Properly Consider the following possible problem and causes: Problem The panel display is in Japanese. Cause The panel display is set to Japanese in the user mode settings. Solution Set the panel display to English in the user mode settings.
Page 82: Uninstalling The Software
Uninstalling the Software Some scanner malfunctions can be resolved by reinstalling the software. Before reinstalling the software, make sure to completely uninstall any previous installation first. Uninstalling the ISIS/TWAIN Driver The following procedure uses the ISIS/TWAIN driver as an example. Follow the same procedure to uninstall the Job Registration Tool and CapturePerfect 3.0.
Page 83 The file-deletion confirmation screen appears. Click [Yes] to proceed with uninstallation. When uninstallation is finished, click [Finish]. Chapter 6 Practical Examples 6-12...
Page 84 Chapter 7 Appendix 1. Specifications... 7-2 Specifications for the Scanner ...7-2 Options...7-3 Consumables ...7-3 External Dimensions ...7-4 2. Index ... 7-5...
Page 85: Chapter 7 Appendix 1. Specifications
Specifications Specifications for the Scanner Type Desktop ADF/flatbed scanner Document Size Width: 5.5" to 11.7" (139.7 mm to 298.1 mm) Length: 5.0" to 17.0" (128 mm to 431.8 mm) (Normal Mode) 5.0" to 24.8" (128 mm to 630 mm) (Long Document Mode) Document Thickness Black-and-white Documents •...
Page 86: Options
Weight Approximately 90.4 lb (41 kg) Power Requirement AC 120 V (60 Hz), 1.8 A (max) AC 220-240 V (50/60 Hz), 1.2 A (max) Power Consumption 120 V model Operating: 218 W maximum Standby: Under 3.5 W 220-240 V model Operating: 210 W maximum Standby: Under 4.3 W Noise...
Page 87: External Dimensions
Chapter 7 Appendix External Dimensions 24.3" (618 mm) 14.8" (377 mm) 23.1" (586 mm) 1.3" (32 mm)
Page 88: Index
Index Automatic Feeding ... 3-10 Cleaning Feeder ... 5-6 Flatbed ... 5-5 Main Unit ... 5-4 Platen Glass ... 5-5 Power Plug ... 5-12 Cleaning tool ... 5-10 Connecting to a Computer ... 2-6 Consumables ... 7-3 Count Only Mode ... 4-2 Custom Installation ...
Page 89: Chapter 7 Appendix
Patchcode Pattern ... 3-19 Patchcode Sheets ... 3-19 Power ... 1-3 Power Cord Connector ... 1-12 Power Switch ... 1-11, 2-9 Practical Examples ... 6-1 Pressure Board ... 1-11 Read Manual ... 2-5 Scanning area cleaning tool ... 1-11 SCSI Cards ... 2-3 SCSI Connection ...
Page 90 User Manual Software Please read this manual before using the scanner. After you finish reading this manual, keep it in a safe place for future reference.
Page 91 Table of Contents Chapter 8 ISIS/TWAIN Driver Settings 1. Before Use ...8-2 2. ISIS/TWAIN Driver Settings Dialog Boxes ...8-4 Basic Setup Dialog Box ... 8-5 Scan Area Dialog Box ... 8-9 Orientation Settings Dialog Box... 8-11 Advanced Settings Dialog Box ... 8-12 Gamma Settings Dialog Box ...
Page 92 Chapter 8 ISIS/TWAIN Driver Settings 1. Before Use... 8-2 2. ISIS/TWAIN Driver Settings Dialog Boxes... 8-4 Basic Setup Dialog Box...8-5 Scan Area Dialog Box ...8-9 Orientation Settings Dialog Box ...8-11 Advanced Settings Dialog Box...8-12 Gamma Settings Dialog Box ...8-15 Other Settings Dialog Box...8-16...
Page 93: Chapter 8 Isis/Twain Driver Settings
Before Use An application program that supports the ISIS or TWAIN driver is required to use the DR-7090C. The DR-7090C requires that it be selected for use as a scanner. The supplied CapturePerfect 3.0 application uses the ISIS driver. This section describes how to select the scanner using CapturePerfect 3.0 (an ISIS-compatible application program).
Page 94 Click [Select Scanner] in the [Scan] menu. The [Select Scanner] dialog box appears. Select [Canon DR-7090C] ➔ click the [Settings] button. If [Canon DR-7090C] does not appear, try installing the ISIS/TWAIN driver again. Set a default page size. IMPORTANT • The default page size becomes the ISIS driver default setting.
Page 95: Isis/Twain Driver Settings Dialog Boxes
Chapter 8 ISIS/TWAIN Driver Settings ISIS/TWAIN Driver Settings Dialog Boxes This settings dialog boxes for the ISIS/TWAIN driver consist of the Basic Setup dialog box, Advanced Settings dialog box, and Other Settings dialog box. The contents of the settings dialog boxes depend on whether the ISIS or TWAIN driver is used. For details, see the description of each dialog box.
Page 96: Basic Setup Dialog Box
Basic Setup Dialog Box This dialog box allows you to make settings for the basic scanning conditions. The items you can set differ depending on the application program you use. Make the settings as needed for the screen actually displayed. ■...
Page 97 ■ Settings of Basic Setup Dialog Box You can configure the following settings in the Basic Setup dialog box. User Preference Click [Save] to open the [Save User Preference] dialog box. The [Save User Preference] dialog box saves the current settings under an assigned name.
Page 98 Page Size Select the page size of the document to be scanned. IMPORTANT • Select [Auto-detection] to scan the following kinds of documents. – Documents of a non-standard size – Documents including mixed page sizes – When using the Long document mode (See “Long Document Mode”...
Page 99 [Simplex] Scans the front side of documents. [Duplex] Scan both sides of documents. [Skip Blank Page] As each document page is scanned, whether the scanned image is blank is judged, and if blank, the image is not saved. • When [Scan Options] is set to [Scan Single Page] for the TWAIN driver, [Duplex] and [Skip Blank Page] are not displayed for [Scanning Side].
Page 100: Scan Area Dialog Box
Buttons [Area] button Open the [Scan Area] dialog box to specify the area to scan. (See “Scan Area Dialog Box” on p. 8-9.) The [Area] button is not displayed if the application program provides its own function to specify the scan area. [More] Button Click this button to display the Advanced Settings dialog box.
Page 101 The Area window and [Preview] button are not displayed when using application programs like Job Registration Tool that display the [OK] button in the settings dialog box. Page Size Select the size of the document to scan. This setting is linked to the [Page Size] setting in the Basic Setup dialog box.
Page 102: Orientation Settings Dialog Box
[OK] button Click this button to accept changes and close the dialog box. [Cancel] button Click this button to reject changes and close the dialog box. [Help] button Click this button to display help for this dialog box. Orientation Settings Dialog Box This dialog box appears when you click the [Orientation] button in the Basic Setup dialog box or in the extended version of the Advanced Settings dialog box (for the ISIS...
Page 103: Advanced Settings Dialog Box
[Calendar type] Specify this mode when scanning a document with the top and bottom of the front and back sides oriented in the opposite direction. The image of the scanned back side is rotated 180 degrees and then saved. Front Back Buttons [OK] button Click this button to accept changes and close the dialog box.
Page 104 Hint For details on [Text Enhanced Mode], [Detect Page Size], [Skip Blank Page], and [Deskew], see the descriptions for the following settings. • [Text Enhanced Mode] ➔ [Mode] • [Detect Page Size] ➔ [Page Size] • [Skip Blank Page] ➔ [Scanning Side] •...
Page 105 Apply first page size to next pages When [Scan Ahead] is selected in the settings of the application program, this setting is enabled and the document size of the first page detected with auto detection is applied to the next pages. This minimizes the reduction in scanning speed caused by the auto detection of document sizes.
Page 106: Gamma Settings Dialog Box
Gamma Settings Dialog Box This dialog box appears when you click the [Gamma] button in the Advanced Settings dialog box. This dialog box allows you to change the settings for the gamma correction value. [Custom] Check Box Select this check box to enable custom settings for gamma correction.
Page 107: Other Settings Dialog Box
Hint Gamma table data (*.pxg files) consists of 258 lines of text used to create the desired image data. Refer to “Gamma Table Files” in the ISIS/TWAIN driver Help for details. Buttons [OK] button Click this button to accept changes and close the Basic Setup dialog box.
Page 108 [Automatic Feeding] Once scanning is started from an application program, whenever a document is loaded in the feeder, the scanner automatically detects it and begins scanning. To finish scanning, press the stop button on the scanner or stop scanning from the application program. Selecting this item enables the [Setting] button.
Page 109 Patchcode Orientation (ISIS Driver Only) This function is enabled when batch separation is set to [Patchcode]. Set the orientation to match that of the patchcode of the patchcode sheet. Hint [Patchcode Orientation] must be set as follows to match that in the document.
Page 110: Chapter 9 Job Registration Tool Settings
Chapter 9 Job Registration Tool Settings 1. Before Use... 9-2 Job Function...9-2 Starting Job Registration Tool...9-2 2. Job Registration Tool... 9-3 3. Settings Dialog Boxes... 9-4 [New/Editing] Dialog Box...9-4 [Admin] Dialog Box...9-9...
Page 111: Before Use
Starting Job Registration Tool Follow the procedure below to start Job Registration Tool. From the Windows task bar, click [Start] ➔ click [All Programs] ➔ [Canon DR-7090C] ➔ [Job Registration Tool]. Chapter 9 Job Registration Tool Settings see “About the Job Function” on...
Page 112: Job Registration Tool
Job Registration Tool Job Registration Tool consists of the main window below and the [New/Editing] and [Admin] dialog boxes. For details on the dialog boxes, see the description of each dialog box. Menu Bar [Edit] Menu Select a job from the job list, and register a new job or edit, copy, or delete the job.
Page 113: Settings Dialog Boxes
Settings Dialog Boxes The settings dialog boxes of Job Registration Tool include the [New/Editing] dialog box and [Admin] dialog box. For details, see the description of each dialog box. [New/Editing] Dialog Box In the [New/Editing] dialog box, you can register new jobs and edit registered jobs.
Page 114 Hint The setting items that appear in the [New/Editing] dialog box vary depending on the [Function] setting. (See “[Function]” on p. 9-5.) Function Send by Save as file Print E-Mail Setting Item ✔ ✔ ✔ ✔ ✔ ✔ Job title ✔...
Page 115 Scanner Setting Click the [Setting] button to configure the scanner settings. [Mail address] Enter the e-mail address of the recipient for the scanned image files. [Add] button To send to multiple recipients, click the [Add] button. The following dialog box appears for entering additional recipient e-mail addresses.
Page 116 Hint When a mode other than [256-level Gray] or [24-bit Color] is selected, an error is displayed if [JPEG] is selected when you click the [OK] button. If the error appears, change the file format or scanner mode. [Setting] Button This button is enabled to display the corresponding settings dialog box when the [TIFF] or [PDF] file format is selected.
Page 117 IMPORTANT The Compression rate setting is enabled when the scanner is set to [256-level Gray] or [24-bit Color] mode. When [Black and White] or [Error Diffusion] binary image scanning mode is selected, file size depends on the content of the scanned document.
Page 118: [Admin] Dialog Box
[Admin] Dialog Box The [Admin] dialog box allows you to configure settings for monitoring the storage folder for images, settings for the mail server and settings for backing up job data. ■ Opening [Admin] Dialog Box Click [Admin setting] in the [Admin] menu to open the [Admin] dialog box.
Page 119: Mail Server Settings
IMPORTANT • When saving to removable storage media such as CD-R, specify the maximum capacity of the media. • When folder monitoring ([Display Warning Dialog]) is enabled, a warning message appears when scanning is started if the total size of the files in the specified folder exceeds the specified limit.
Page 120 Chapter 9 Job Registration Tool Settings ■ Job Back Up Settings Set this function to back up the registered jobs when the same job is to be executed in a different environment, such as occurs when multiple users log on to Windows or when multiple scanners are used.
Page 121: Chapter 10 Practical Examples
Chapter 10 Practical Examples 1. About Basic Condition Settings ... 10-2 Confirming Basic Conditions for Scanning...10-2 2. Practical Examples ... 10-4 Scanning Documents of Unregistered Page Sizes ...10-4 Specifying Scanning Area ...10-5 Configuring Scanner Settings According to Purpose...10-5 Registering Your Settings ...10-8...
Page 122: About Basic Condition Settings
About Basic Condition Settings This section provides an overview of the basic setting items that are the minimum requirements when configuring the scanner settings. For details on settings, see Chapter 8 “ISIS/TWAIN Driver Confirming Basic Conditions for Scanning When you scan a document, make sure to confirm the [Mode], [Page Size], [Dots per inch], and [Scanning Side] basic conditions in the Basic Setup dialog box.
Page 123: Practical Examples
Scanning Side Select which page side(s) to scan. Hint • To scan using the flatbed, set the scanning side to [Flatbed] or [Auto]. • If the scanning side is set to [Auto], documents placed in the feeder tray will be scanned. If there are no documents in the feeder tray, the flatbed will be scanned.
Page 124: Scanning Documents Of Unregistered
Practical Examples This section provides an overview of the basic setting items that are the minimum requirements when configuring the scanner settings. For details on settings, see Chapter 8 “ISIS/TWAIN Driver Scanning Documents of Unregistered Page Sizes Configuring the following settings allows you to scan a document of an unregistered page size.
Page 125: Specifying Scanning Area
■ Registering of non-standard page sizes You can register a non-standard page size that has not been registered as a page size by naming and registering it as a custom page size in the [Page Size] setting of the Scan Area dialog box, which is opened from the [Area] button in the Basic Setup dialog box.
Page 126 ■ When you want to enhance a particular color Select the color (red, blue, or green) to be enhanced in [Color drop-out] in the Advanced Settings dialog box, and that color will be enhanced. ■ When you want to enhance contours in images Adjust the [Edge emphasis] setting in the Advanced Settings dialog box.
Page 127 ■ When you want to remove the black spots from scanned images when scanning documents with punch holes Select the [Punch Hole Removal] check box in the Advanced Settings dialog box. The black spots from punch holes in documents are removed from scanned images.
Page 128: Registering Scanning Conditions
Hint Images are rotated as follows according to the orientation of the loaded document and the selected angle. Flatbed Document: Face Down Feeder Document: Face Up Document Orientation Image Rotation 0 degrees 90 degrees 180 degrees (Clockwise) Output Image ■ When you want to delete the images of the blank pages in two-sided documents If you set the scanning side setting to [Skip Blank Page] in the Basic Setup dialog box, the images of blank pages in...
Page 129 CANON ELECTRONICS INC. 1248, SHIMOKAGEMORI, CHICHIBU-SHI, SAITAMA 369-1892, JAPAN CANON U.S.A. INC. ONE CANON PLAZA, LAKE SUCCESS, N.Y. 11042, U.S.A. CANON CANADA INC. 6390 DIXIE ROAD, MISSISSAUGA, ONTARIO L5T 1P7, CANADA CANON EUROPA N.V. BOVENKERKERWEG 59-61, P.O.BOX 2262, 1180 EG AMSTELVEEN, THE NETHERLANDS CANON LATIN AMERICA, INC.
