3. Please refer to Menu 7. The specific meaning of each cable depends
on the terminal signal of the Dry Contact to which it is connected.
depends on the terminal signal of Dry Contact it connected. If Cable
#1(red) is connected to the Back Up terminal in the Dry Contact bank,
Menu 7 will display '1' when the UPS is in backup mode. Users can
define the meaning of #'s 1, 2, and 3 according to the terminals of Dry
Contact bank to which they are connected.
4. Connect either of the RJ11 ports on the rear side of the RECEIVING
MASTER to the corresponding plug on the telephone used for receiving
calls.
5. During installation, If the dialing function has been triggered
inadvertently, by inserting the USB port or pressing the black TEST
button, the green dialing LED will be lit continuously. To conserve power,
open the case and reset the battery.

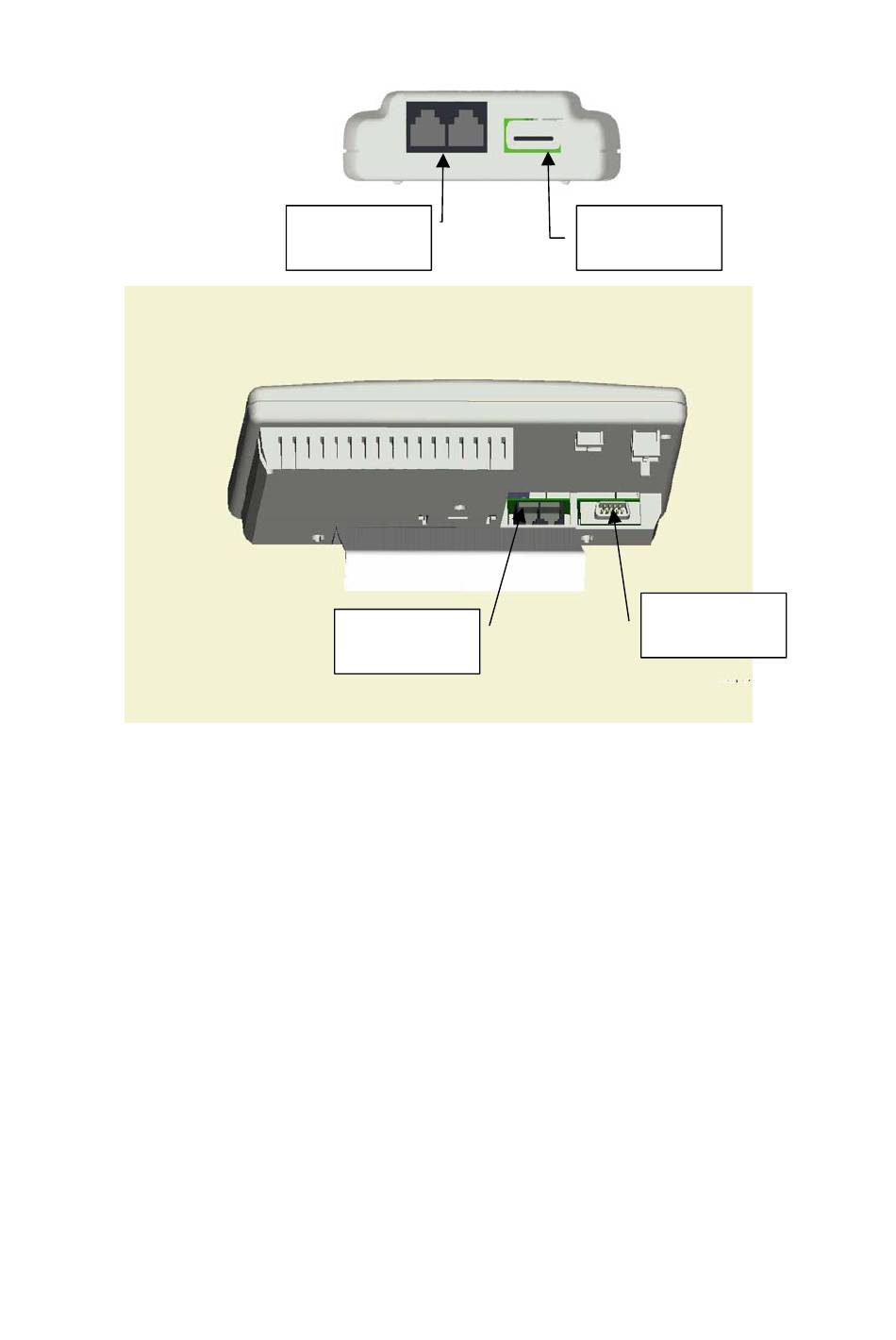

RJ11Port
on the rear
RJ11 Port
on the back
USB Port
on the rear
DB9 Port
on the back
