For single phase output UPS, the current is very much larger in single phase terminal,
therefore the terminal looks bigger than it is needed.
RT
RESERVE
INPUT

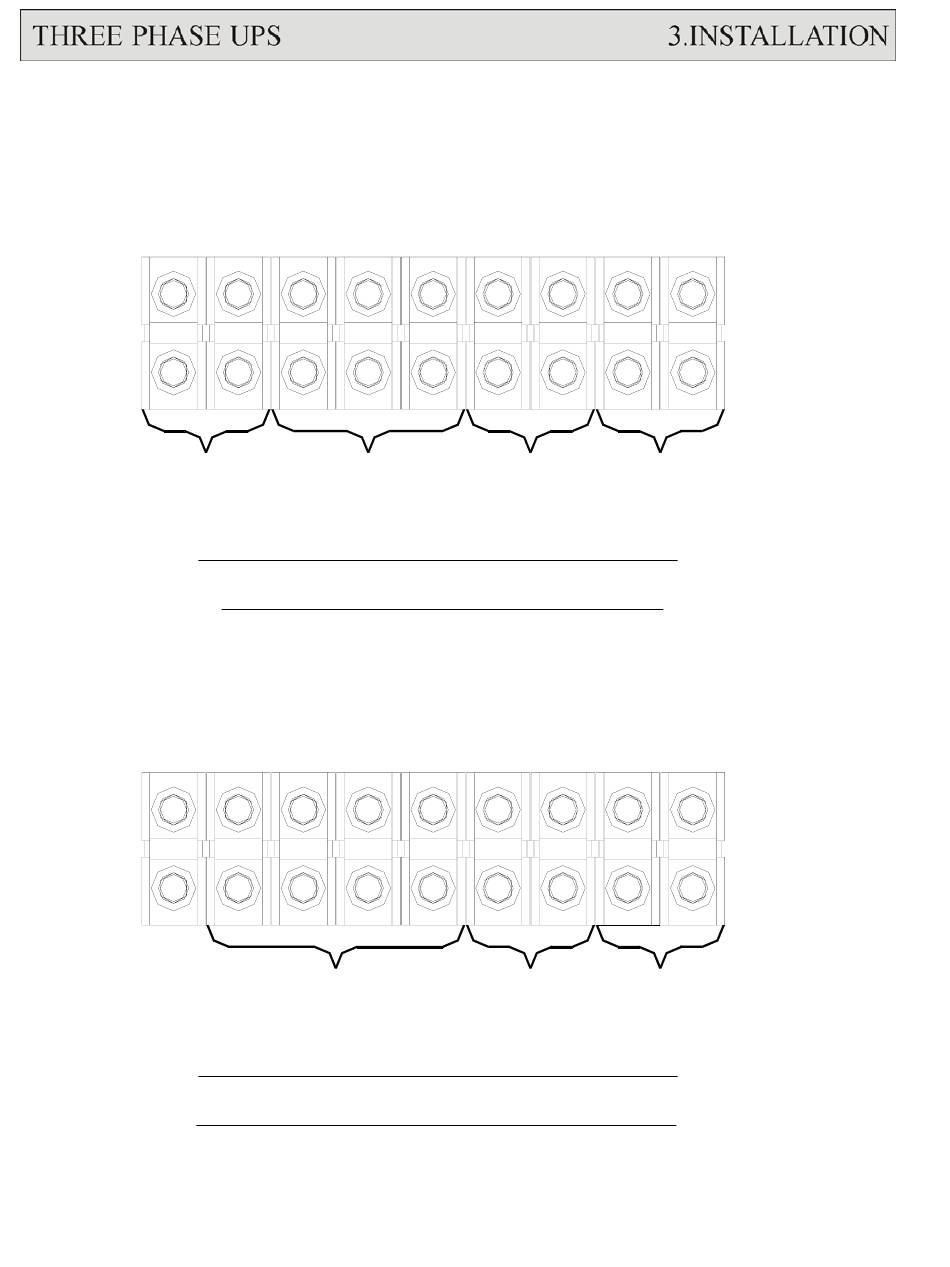

3 PHASE INPUT / 1 PHASE OUTPUT
RT
3 PHASE INPUT / 1 PHASE OUTPUT
TERMINAL WITH SINGLE SOURCE
☆☆☆ Extra empty terminals are installed for convenience of changing the unit to
separate reserve input.
IN IR IS
RECTIFIER
INPUT
TERMINAL WITH TWO SOURCE
IN IR IS
RECTIFIER & RESERVE
INPUT
IT OR ON
UPS
OUTPUT
IT OR ON
UPS
OUTPUT
3-11
B+ B-
BATTERY
INPUT
B+ B-
BATTERY
INPUT
