- Page 1 ELECTRONIC ENGINEERING LTD. EDS-2000 Outdoor PIR + MW detector INSTALLATION INSTRUCTIONS & USER MANUAL P/N 7101720 Rev. D...
-
Page 3: Table Of Contents
General ............................5 Features ............................ 5 Assembly description......................... 6 Detection Pattern ........................7 Selecting mounting location ....................... 9 Detector Installation ......................... 10 Terminal Block Connections ....................12 Wire Size Requirements ....................12 Settings & Adjustments ......................13 Detection beam direction ....................13 Sensitivity and Range Adjustment .................. -
Page 5: General
The EDS-2000 is designed to protect large areas and can easily be installed on walls in order to provide a solid protection of the area while rejects interferences from birds and small animals due to “PET MASK”... -
Page 6: Assembly Description

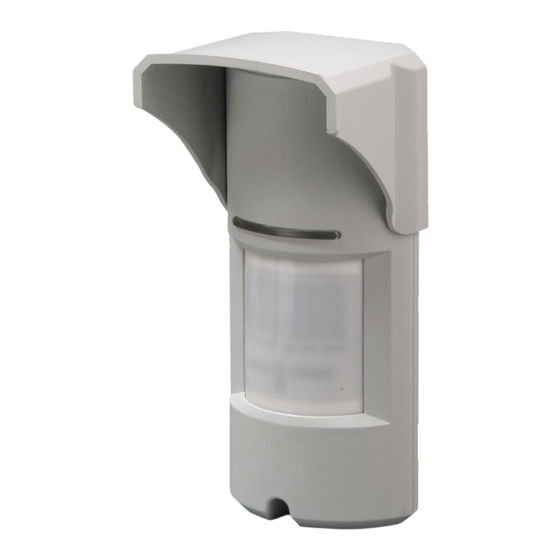

Assembly description The EDS-2000 is a robust yet small detector which includes big indication led prism that can be easily observed from long distance. Having a back metal bracket, the EDS-2000 can be easily mounted to walls using mounting screws (supplied). -
Page 7: Detection Pattern
Detection Pattern The EDS-2000 has a 90° top view PIR and MW detection pattern with over 15m (49 ft) detection distance (when installed at 2.4m (7.9 ft) above the ground surface). Standard Lens (49ft) - Page 8 When using a curtain lens (optional, sold separately) the EDS-2000 has a 3° top view PIR and MW detection pattern with over 20m (65 ft) detection distance (when installed at 2.4m (7.9 ft) above the ground surface). Curtain Lens Having MW movement detection combined with PIR detection beam, the EDS-2000 can differentiate between pets and human bodies and alert accordingly.
-
Page 9: Selecting Mounting Location
The EDS-2000 performs best when provided with a constant and stable environment. In order to ensure suitable operation of the EDS-2000 type of ground should be one of the following: Asphalt concrete, Cement, Soil, Clay, Gravel or Grass (mown). -
Page 10: Detector Installation
Detector Installation Important! Prior to installation, read both “Operation” and “Selecting the mounting location” sections carefully. 1. Install the detector in such manner that the intruder is 2. The detector is to be installed at height of 1.8 to 2.4 most likely to cross the detection area from side to side. - Page 11 7. Release the detector body from the metal bracket by 8. Attach the rear bracket to the wall using mounting pulling to front and up. screws or metal bands. 9. Slide the wires from the rear side internally. 10. Attach the sealing sponge pad to the wire opening from the rear side after the wires connection and prior to final product affixing to the mounted bracket.
-
Page 12: Terminal Block Connections
Terminal Block Connections Terminal 1 - Marked “+” (+12V) - Connect to a positive Voltage of 9.6 -16Vdc source (usually from the alarm CP) Terminal 2 - Marked “-” (GND) - Connect to the ground of the CP. Terminals 3 & 4 - Marked “TAMPER” - If a Tamper function is required connect these Terminals to a 24-hour normally closed protective zone in the CP. -
Page 13: Settings & Adjustments
Settings & Adjustments 8.1 Detection beam direction The EDS-2000 detection beam direction is fixed. As a result, it is recommended to face the intrusion area with the detector. 8.2 Sensitivity and Range Adjustment There are 6 groups of environments for which different setting are required: ... -
Page 14: Pet Immunity Setting
8 o’clock Note: Adjust sensitivity according to environmental conditions! 8.3 Pet immunity setting The EDS-2000 has a detachable Pet immunity filter. As such the Pet immunity level may vary between: 1. 36kg (80 lbs) with pet immunity filter assembled 2. 15kg (33 lbs) if no pet immunity filter is used. -
Page 15: Indications Setting
8.4 Indications setting The EDS-2000 has 3 LEDs that each points at different indication: 1. Green LED indicates PIR detection. 2. Yellow LED indicates MW detection. 3. Red LED - alarm indication (logic AND of both MW and PIR). The installer has an option to control LEDs operation, using the LED control jumper, between “ON”... -
Page 16: Operation
Operation Note! Connect the EDS-2000 to a positive Voltage output of 9.6 -16VDC source. Use only a listed power limited source. The detector shall be provided with minimum of 4 hours of standby power from either a listed compatible control unit or power supply. -
Page 17: Test Procedure
10 Test procedure Walk Test Make sure LEDs control is set to “ON” Allow 30 seconds of warm up time. Make sure that the protected area is cleared of all people. Start walking across the detection zone. Look at the LEDs whenever motion is detected - all LEDs are turned ON. Allow 5 sec. -
Page 18: Specifications
11 Specifications Detection Method PIR AND MW X-band (9.9GHz / 10.525GHz / 10.687GHz) Microwave Frequency K-band (24.125 GHz) Power Input 9.6 to 16Vdc, 120 mA Active: 24mA (±5%) Current Draw Standby: 21mA (±5%) Temp Compensation Yes, Dual slop temperature compensation Alarm Period 2 sec (±0.5sec) Form C (NC, NO, Common) - Page 19 There are no warranties, expressed or implied, of merchantability or fitness for a particular purpose or otherwise, which extend beyond the description on the face hereof. In no case shall CROW be liable to anyone for any consequential or incidental damages for breach of this or any other warranty, expressed or implied, or upon any other basis of liability whatsoever, even if the loss or damage is caused by CROW’s own...
- Page 20 12 Kineret St. Airport City, 70100 Israel Tel. +972 3 9726000 Fax. +972 3 9726001 sales@crow.co.il support@crow.co.il www.thecrowgroup.com CROW LATIN AMERICA USA INC. 7200 NW 19 st. Suite 307 Miami FI 33126, USA Tel. +305 513 4001 Fax. +305 513 4005 rejane@crowlatinamerica.com www.crowlatinamerica.com...
