ELECTRONIC ENGINEERING LTD.
Outdoor PIR + MW detector
Outdoor PIR + MW detector
Outdoor PIR + MW detector
Outdoor PIR + MW detector
EDS- - - - 2000
EDS
EDS
EDS
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
USER MANUAL
USER MANUAL
USER MANUAL
USER MANUAL
2000
2000
2000
& & & &
1
P/N 7102720 Rev. A
Advertisement
Table of Contents
Related Manuals for Crow EDS-2000
Summary of Contents for Crow EDS-2000

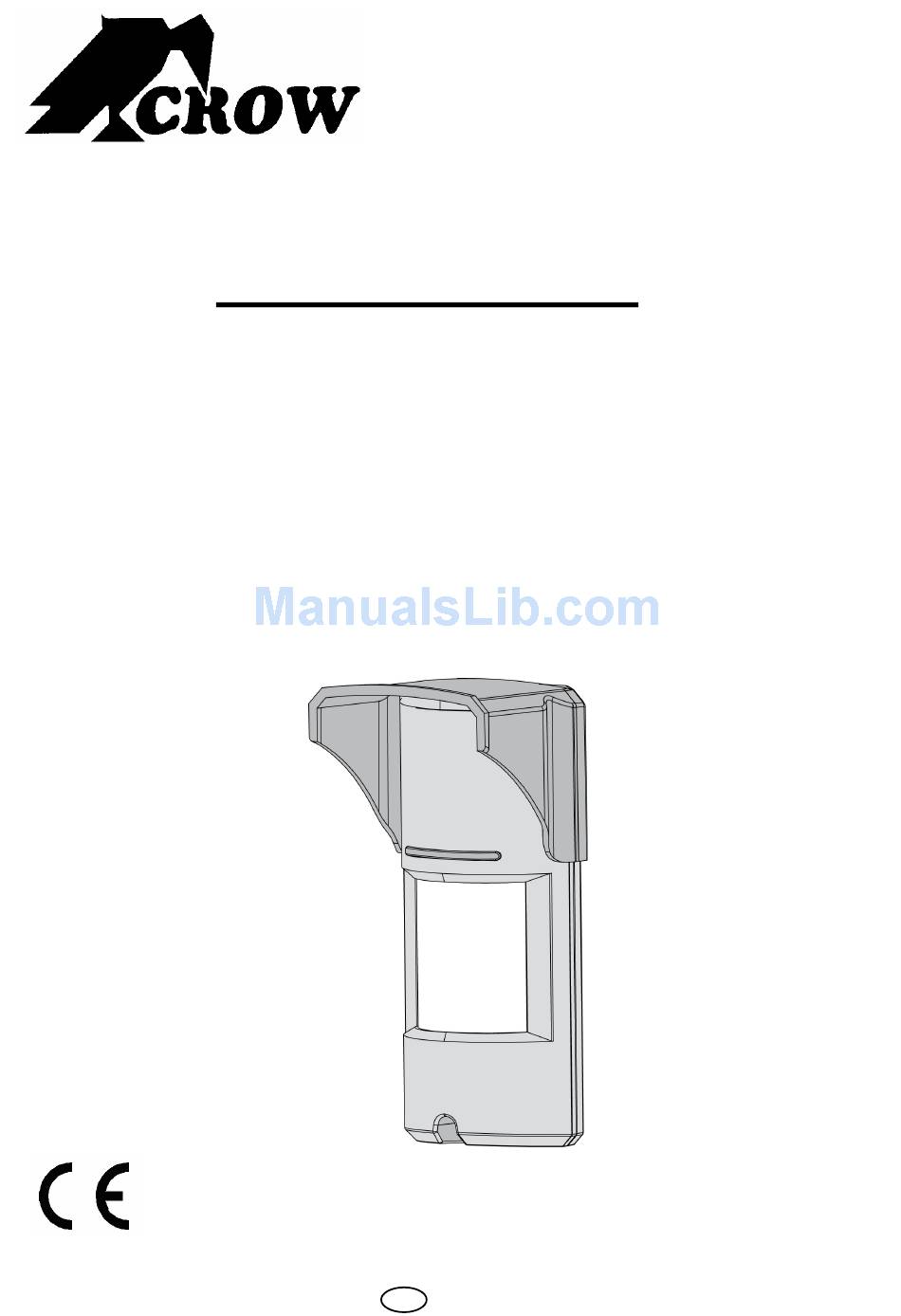

- Page 1 ELECTRONIC ENGINEERING LTD. EDS- - - - 2000 2000 2000 2000 Outdoor PIR + MW detector Outdoor PIR + MW detector Outdoor PIR + MW detector Outdoor PIR + MW detector INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS & & & & USER MANUAL USER MANUAL USER MANUAL...
-
Page 3: Table Of Contents
General............................5 Features ............................ 5 Assembly description......................... 6 Detection Pattern........................7 Selecting mounting location....................... 8 Detector Installation........................9 Terminal Block Connections....................11 Wire Size Requirements....................11 Settings & Adjustments ......................12 Detection beam direction....................12 Sensitivity and Range Adjustment..................12 Pet immunity setting ...................... -
Page 5: General
The EDS-2000 is designed to protect large areas and can easily be installed on walls in order to provide a solid protection of the area while rejects interferences from birds and small animals due to “PET MASK”... -
Page 6: Assembly Description

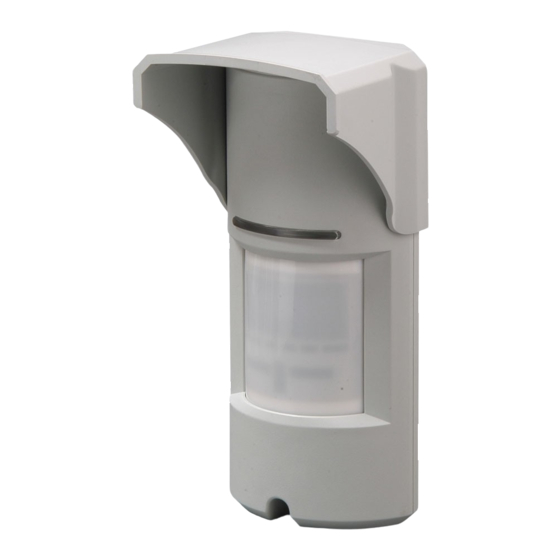

Assembly description The EDS-2000 is a robust yet small detector which includes big indication led prism that can be easily observed from long distance. Having a back metal bracket, the EDS-2000 can be easily mounted to walls using mounting screws or metal bands (supplied). -
Page 7: Detection Pattern
Detection Pattern The EDS-2000 has a 90° top view PIR and MW detection pattern with over 15m (49 ft) detection distance (when installed at 2.4m (7.9 ft) above the ground surface). (49ft) Having MW movement detection combined with PIR detection beam, the EDS-2000 can differentiate between pets and human bodies and alert accordingly. -
Page 8: Selecting Mounting Location
The EDS-2000 performs best when provided with a constant and stable environment. In order to ensure suitable operation of the EDS-2000 type of ground should be one of the following: Asphalt concrete, Cement, Soil, Clay, Gravel or Grass (mown). -
Page 9: Detector Installation
Detector Installation Important! Prior to installation, read both “Operation” and “Selecting the mounting location” sections carefully. 1. Install the detector in such manner that the intruder is 2. The detector is to be installed at height of 1.8 to 2.4 most likely to cross the detection area from side to side. - Page 10 7. Release the detector body from the metal bracket by 8. Attach the rear bracket to the wall using mounting pulling to front and up. screws or metal bands. 9. Slide the wires from the rear side internally. 10. Attach the sealing sponge pad to the wire opening from the rear side after the wires connection and prior to final product affixing to the mounted bracket.
-
Page 11: Terminal Block Connections
Terminal Block Connections Terminal 1 - Marked “+” (+12V) - Connect to a positive Voltage of 9.6 -16Vdc source (usually from the alarm CP) Terminal 2 - Marked “-” (GND) - Connect to the ground of the CP. Terminals 3 & 4 - Marked “TAMPER” - If a Tamper function is required connect these Terminals to a 24-hour normally closed protective zone in the CP. -
Page 12: Settings & Adjustments
Settings & Adjustments 8.1 Detection beam direction The EDS-2000 detection beam direction is fixed. As a result, it is recommended to face the intrusion area with the detector. 8.2 Sensitivity and Range Adjustment There are 6 groups of environments for which different setting are required: •... -
Page 13: Pet Immunity Setting
8 o’clock Note: Adjust sensitivity according to environmental conditions! 8.3 Pet immunity setting The EDS-2000 has a detachable Pet immunity filter. As such the Pet immunity level may vary between: 1. 36kg (80 lbs) with pet immunity filter assembled 2. 15kg (33 lbs) if no pet immunity filter is used. -
Page 14: Indications Setting
8.4 Indications setting The EDS-2000 has 3 LEDs that each points at different indication: 1. Green LED indicates PIR detection. 2. Yellow LED indicates MW detection. 3. Red LED - alarm indication (logic AND of both MW and PIR). The installer has an option to control LEDs operation, using the LED control jumper, between “ON”... -
Page 15: Operation
Operation Note! Connect the EDS-2000 to a positive Voltage output of 9.6 -16VDC source. Use only a listed power limited source. The detector shall be provided with minimum of 4 hours of standby power from either a listed compatible control unit or power supply. -
Page 16: Test Procedure
10 Test procedure Walk Test Make sure LED's control is set to “ON” Allow 30 seconds of warm up time. Make sure that the protected area is cleared of all people. Start walking across the detection zone. Look at the LED's whenever motion is detected - all LED's are turned ON. Allow 5 sec. -
Page 17: Specifications
11 Specifications Detection Method PIR AND MW Microwave Frequency 24.125 GHz Power Input 9.6 to 16Vdc Active: 24mA (±5%) Current Draw Standby: 21mA (±5%) Temp Compensation Yes, Dual slop temperature compensation Alarm Period 2 sec (±0.5sec) Form C (NC, NO, Common) Alarm Outputs 28Vdc 0.1 A with 10 Ohm Two Switches... - Page 19 There are no warranties, expressed or implied, of merchantability or fitness for a particular purpose or otherwise, which extend beyond the description on the face hereof. In no case shall CROW be liable to anyone for any consequential or incidental damages for breach of this or any other warranty, expressed or implied, or upon any other basis of liability whatsoever, even if the loss or damage is caused by CROW’s own...
- Page 20 ELECTRONIC ENGINEERING LTD. ISRAEL: Crow Electronic Engineering Ltd. 12 Kineret St. Airport City P.O. Box 293, Ben Gurion Airport, 70100 Tel: +972-3-9726000 Fax:+972-3-9726001 E-mail: support@crow.co.il USA: 2160 North Central Road, Fort Lee, N.J. 07024 Tel: 1-800-GET CROW (201) 944 0005...
