Crow SH-PIR-8F, SH-PIR-9F - TWO WAY WIRELESS PIR MOTION DETECTOR Manual

PRODUCT FEATURES

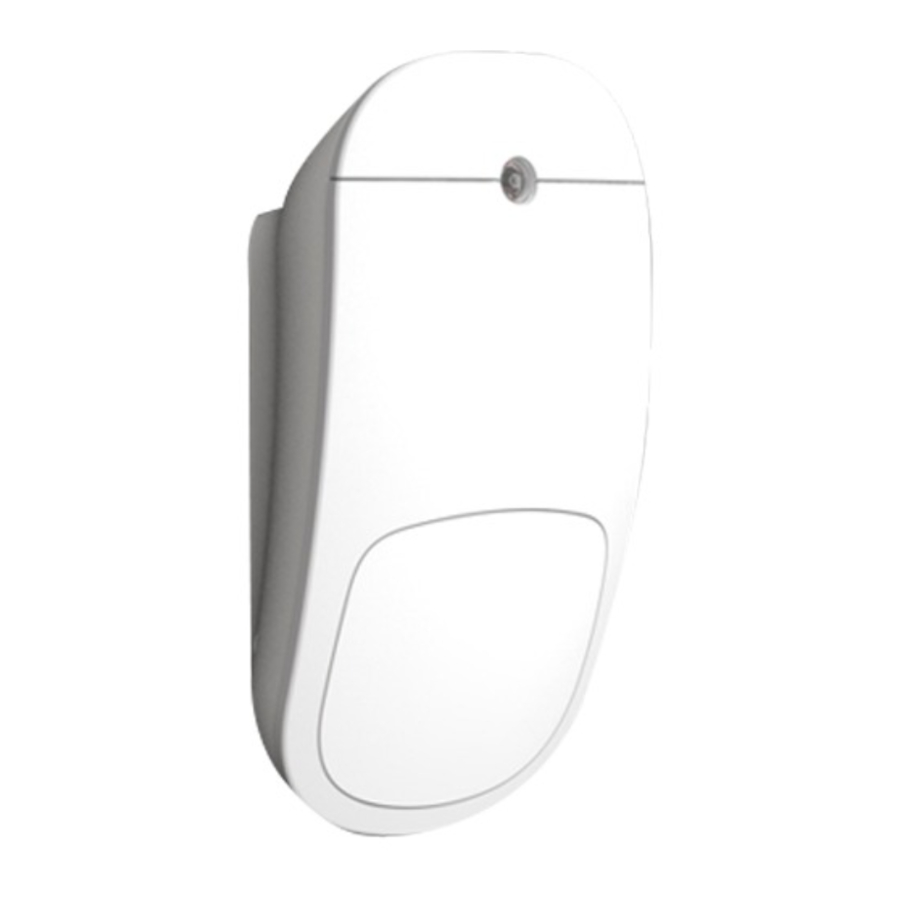

The SH-PIR is an advanced, fully supervised low-current wireless motion detector that includes a FW2 transceiver for reliable system operation combined with the most advanced Mirror Optics detection method.

  • Freewave2™ Two Way ISM
  • GFSK with 5 frequencies & LBT.
  • Ultra Low current consumption.
  • Immunity to attenuation feature
  • Powered by a 3V Type CR123A Lithium battery.
  • Motion Detection up to 12 meters
  • Battery life up to 5 years.
  • Operating Frequencies: 868MHz / 916MHz
  • Event Transmission:
    • Alarm
    • Tamper Open/Close
    • Supervision
    • Battery status
  • Bi-Color LED indications
  • Up to 500m transmission range in open space.
  • Remotely configurable.
  • Pet immune up to 25kgs.

DETECTOR OPENING

DETECTOR OPENING

BRACKET REMOVAL

BRACKET REMOVAL

BATTERY INSERTION

BATTERY INSERTION
The battery can be replaced by the user Battery type: 3V Type CR123A Lithium

DETECTOR MOUNTING

DETECTOR MOUNTING

Avoid the following locations:

  • Facing direct sunlight.
  • Facing areas that may change temperature rapidly.
  • Areas where there are air ducts or substantial airflows.

DETECTION COVERAGE

DETECTION COVERAGERecommended mounting height – 2.1m to 2.3m

LEARNING PROCESS

For pairing process, please refer to your control panel instructions.
To pair your device with Shepherdpanel, please proceed as follows:

  1. Enter in installing mode via the "Installer Webpage"
  2. Go to "Zones" and select the zone # you want to learn
  3. Add Zone - (Reminder: insert Link Type "ISM", device's ID, Device Type "Infrared motion detector".)
  4. Set the detector configuration: supervision time. Pulse count...and etc. and save configuration.
  5. Place a battery as instructed in Figure 3 and wait until the Red LED stops blinking.
  6. The device should register to the Control Panel.
  7. When registration process is successfully completed, the Green LED will constantly light ON for 3 seconds and then turn OFF.
  8. If Green LED continues flashing more than 5 minutes and stopped. Please check PIR settings details, remove batteries and repeat step 4,5,6

DETECTOR TESTING

After pairing and installing the detector, we recommend performing walk and transmission tests.

Motion Transmission Test
Walk crossing in front of the detector from one side to the other will cause motion alert transmissions. Verify receiving the indication on your control panel. Pay attention that due to APS feature it is required waiting 30 seconds between 2 consecutive indications.

Walk Test

  • Activate walk test mode via Web Installer (in the overview level), for walk test institutions use Panel manual.
  • Make few walk crossing in front of the detector and see results in Overview display.

Tamper Transmission Test
Changing the tamper switch state (by attaching / removing the device to / from the Bracket) will cause tamper transmissions.

EVENT TRANSMISSION

SUPERVISION – A periodical transmission (configurable) indicating detector's presence.
ALARM – Alarm transmission triggered by the device indicating Motion detection. The Red LED will blink once.
LOW BAT– Whenever the battery reaches the low level (2.8V), a Battery Low signal will be sent. When Battery level drops below Cut Off level (2.6V) the device will stop functioning and the Red LED will blink for 10 seconds and then turned Off.
TAMPER – Whenever the cover is removed from Bracket or the device is tear off from the wall, a message will be transmitted with "Tamper ON" signal. When cover will be returned a "Tamper OFF" signal will be transmitted.

BATTERY REPLACEMENT

BATTERY REPLACEMENT

The battery must be replaced by 3V Lithium
Models such as

  1. VARTA CR123A
  2. GP CR123A


RISK OF EXPLOSION IF BATTERY IS REPLACED BY DIFFERENT TYPE / MODEL. DISPOSE USED BATTERIES ACCORDING TO ITS INSTRUCTIONS

SPECIFICATION

Detection Method PYRO Element
Communication Protocol Freewave2™ Two Way ISM GFSK with 5 frequencies & LBT
Operating Frequencies 868-869MHz or 916-917MHz
Identification Unique ID serial number – 24 bit
Events Transmission Alarm, Tamper, Supervision, Low Bat, Keep Alive.
Supervision Time 7 min by default
(configurable between 1 to 30 min)
Transmission Range 500m in open space
Battery 3V Type CR123A Lithium
Battery life Up to 5 years
Current Consumptions Standby ~11 A
Receive mode ~24 mA
Transmit mode ~45 mA
Transmit power up to 14dBm
Low Bat 2.8V
Cut Off 2.6V
Tamper Switch Front Cover and Wall Removal
Operating temperature -10ºC to +55ºC
Dimensions 108mm x 58mm x 43mm
Weight (incl. battery) 90 gr.

STANDARDS APPROVALS

The SH-PIR conforms to the essential requirements set out by:

  • RTTE directive: 1999/5/EC
  • EMC directive: 2004/108/EC
  • Low Voltage directive: 2006/95/EC

Harmonized Standards applicable to this products are:

  • EN 50130-4
  • EN 61000-6-3
  • EN 301 489-1
  • EN 301 489-3
  • EN 300 220-1
  • EN 300 220-2
  • EN 60950-1

Additional Standards and Directives applicable to this product are:

  • EN 50131-1
  • EN 50131-2-2
  • EN 50131-6
  • EN 50131-5-3
  • EN 50130-5

Security Grade2, Environmental Class II
Power supply Type C
Certification body: Telefication B.V.

WARRANTY POLICY CERTIFICATE

Crow warrants these products to be free from defects in materials and workmanship under normal use and service for a period of 24 months from the last day of the week and year whose numbers are printed on the printed circuit board inside these products.

sales@crow.co.il
support@crow.co.il
www.thecrowgroup.com

These instructions supersede all previous issues in circulation prior to December 2017
