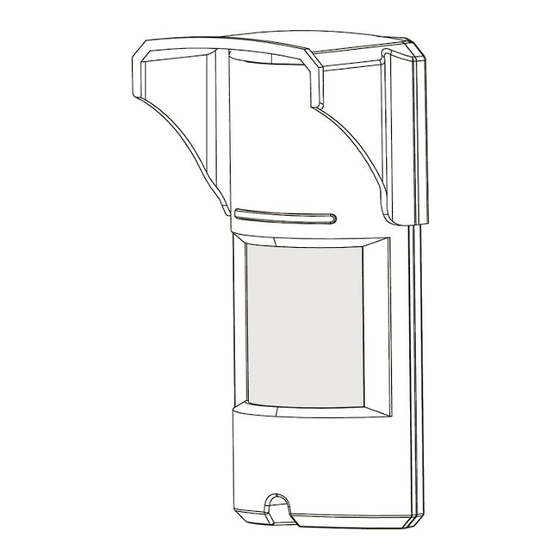

Crow EDS-2000-AM Installation Instructions Manual
Outdoor dual-tech motion sensor
(single pir, microwave and antimask)
Hide thumbs
Also See for EDS-2000-AM:
- Installation instructions manual (18 pages) ,
- Installation instructions & user manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Crow EDS-2000-AM
Summary of Contents for Crow EDS-2000-AM
- Page 1 EDS-2000-AM Outdoor Dual-Tech Motion Sensor (Single PIR, Microwave And Antimask) INSTALLATION INSTRUCTIONS & USER MANUAL P/N: 7101796 Rev. D D.Z...
- Page 2 The EDS-2000-AM is designed to protect large areas and can easily be installed on walls in order to provide a solid protection of the area while rejecting interferences from birds and small animals with the optional “PET MASK”...
- Page 3 Assembly description The EDS-2000-AM is a robust yet small detector which includes a large LED indicator that can be easily observed from long distances to provide indication of intrusion. Using the supplied mounting bracket, the EDS-2000-AM can be easily mounted to walls using the provided mounting screws.
- Page 4 Detection Pattern The EDS-2000-AM has a 90° top view PIR and MW detection pattern with 12m detection distance (when installed at 2.4m above the ground surface). Standard Lens – Grade 2 Standard Lens – Grade 3...
- Page 5 Corridor Lens – Optional (sold separately) Note: This option is not suitable for EN50131-2-4 compliant installation. Having MW movement detection combined with PIR detection beam, the EDS-2000-AM can differentiate between pets and human bodies and alert accordingly. By having both PIR detection beam and MW crossing an object it will be defined as intrusion,...
- Page 6 The EDS-2000-AM performs best when provided with a constant and stable environment. In order to ensure suitable operation of the EDS-2000-AM, the type of ground should be one of the following: Asphalt concrete, Cement, Soil, Clay, Gravel or Grass (mown).
- Page 7 Detector Installation Important! Prior to installation, read both “Operation” and “Selecting the mounting location” sections carefully. 1. Install the detector in such manner that the intruder is 2. The detector is to be installed at height of 2.1m (6.9 most likely to cross the detection area from side to side. ft.) for Grade 2 or 1.2m (3.9 ft.) for Grade 3 3.
- Page 8 7. Release the detector body from the metal bracket by 8. Attach the rear bracket to the wall using mounting pulling the detector up and out. screws. 9. Insert wires through provided access hole and wiring 10. Use double side adhesive washer before channels.
- Page 9 (Usually from the alarm CP) Terminal 2 - Marked “-” (GND) - Connect to the ground of the CP. Terminal 3 –Marked "Test" 9-16 v on this pin will enter the EDS-2000-AM to walk test mode even if SW2 position 1 is off Terminals 4 &...
- Page 10 End Of Line In case there is a need to use EOL connection method, it is necessary to choose different resistances for different functions/outputs (Tamper/Alarm/Trouble). End-Of-Line resistors are intergarded on the EDS-2000-AM. These resistances are obtained on the table below: Jumper group...
- Page 11 Settings & Adjustments 9.1 Detection beam direction The EDS-2000-AM detection beam direction is fixed. As a result, it is recommended to face the intrusion area with the detector. 9.2 Sensitivity and Range Adjustment There are 2 options for PIR sensitivity option: PIR potentiometer adjust SW 2 position 3 –...
- Page 12 General configuration setting table (for SW2) Feature SW position On (up) Off (down) Indication LEDs Indication LEDs on (*) Indication LEDs off Anti Mask ON (*) PIR pulse count 2 pulses(*) 3 pulses Pet immunity Off (*) Factory setting is marked with (*) and match the EN50131-2-4 compliance test setups. The sensitivity adjustment is performed by setting a potentiometer and MW jumper as Follows (using clock needle positioning): Environment type...
- Page 13 8.3 Pet immunity setting The EDS-2000-AM has a detachable Pet immunity filter. As such the Pet immunity level may vary between: 1. 36kg (80 lbs) with pet immunity filter assembled 2. 15kg (33 lbs) if no pet immunity filter is used.
- Page 14 8.4 Indications setting The EDS-2000-AM has 3 LEDs that each points at different indication: a. Green LED indicates PIR detection. b. Yellow LED indicates MW detection. c. Red LED - alarm indication (logic AND of both MW and PIR). d. Masking indication: Yellow LED blinking e.
- Page 15 The EDS-2000-AM has an ambient light sensor. The EDS-2000-AM self calibrates for anti mask 30 minutes after power up. Please verify during installation that the EDS-2000-AM is closed well before 30 minutes from power up. In case initial calibration is done while facing direct sunlight, the calibration process will be automatically reinitiated after 30 mins until the direct light intensity is reduced adequately.
- Page 16 At this time the detector is ready for operation. 11. Self-test Self test is meant to ensure that the detector functionalities (PIR & MW) are working properly. Self-test occurs on initial warm-up and every 10h afterwards. Following the self-test, if any technical failure is obtained, the yellow LED will flash constantly –...
-
Page 17: Specifications
This Warranty Certificate is given in favor of the purchaser (hereunder the "Purchaser") purchasing the products directly from Crow or from its authorized distributor. Crow warrants these products to be free from defects in materials and workmanship under normal use and service for a period of 24 months from the last day of the week and year whose numbers are printed on the printed circuit board inside these products (hereunder the "Warranty Period"). - Page 18 12 Kineret Street. Airport City, 70100 Israel Tel. +972 3 9726000 Fax. +972 3 9726001 sales@crow.co.il support@crow.co.il www.thecrowgroup.com These instructions supersede all previous issues in circulation prior to January 2019...
