Adirondack Collection

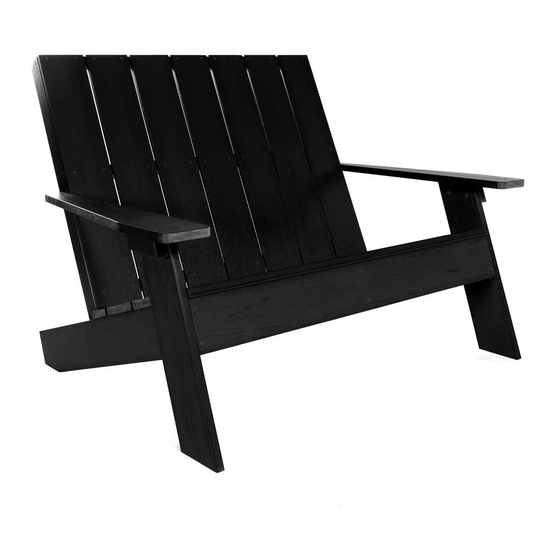

Barcelona Double Wide Modern Adirondack Chair
Assembly Guide
SEAT
B
B
highwood
NATURE'S CLOSEST RIVAL
BACK
1) Attach Back to Seat Using
(6) "B" Bolts.
For information on Care and Cleaning or to register your
highwood product, please visit www.highwood-usa.com.
HARDWARE
A
1/4"-20 X 1.5"
B
1/4"-20 X 1.75"
IMPORTANT!
DO NOT fully tighten the bolts until all
bolts are started. Once all bolts are inserted,
go back & tighten all the bolts.
Retain these instructions for future reference
INCLUDED TOOLS
5/32" HEX KEY
x8
x8
AD-CHRAD02
03.13.19
PAGE 1 OF 2
Advertisement
Table of Contents
Related Manuals for highwood Adirondack Barcelona Double AD-KITAD02-BKE
Summary of Contents for highwood Adirondack Barcelona Double AD-KITAD02-BKE
- Page 1 INCLUDED TOOLS BACK 5/32" HEX KEY 1) Attach Back to Seat Using (6) "B" Bolts. AD-CHRAD02 highwood For information on Care and Cleaning or to register your 03.13.19 highwood product, please visit www.highwood-usa.com. PAGE 1 OF 2 NATURE'S CLOSEST RIVAL...
- Page 2 Seat Using (2) "A" Bolts. Attaching Right Leg and Arm. 5) Tighten All Bolts. AD-CHRAD02 highwood For information on Care and Cleaning or to register your 03.13.19 highwood product, please visit www.highwood-usa.com. PAGE 2 OF 2 NATURE'S CLOSEST RIVAL...
