REACH Wireless®
Open-Area Wall Sounder

Product overview

Product
Part No.
Digital Communication

Approvals

Product information

The RW1500-110APO and RW1500-120APO comprise of a
wireless addressable interface and conventional open-area
wall sounder that can be used as a stand-alone notification
device.
• Compatible only with REACH Wireless
• 16 tone pair settings (primary and secondary for alert
and evacuation), selectable via on-board DIL Switches
• Four Volume Settings
• Bi-directional wireless communication
• Dual channel redundancy
• Five year battery life
• Five year product warranty
36 Brookside Road, Havant
Hampshire, PO9 1JR, UK.
MANAGEMENT MANAGEMENT
SYSTEMS SYSTEMS
Assessed to ISO 9001:2015 Assessed to ISO 14001:2015
Cert/LPCB ref. 010 Cert/LPCB ref. 010 EMS

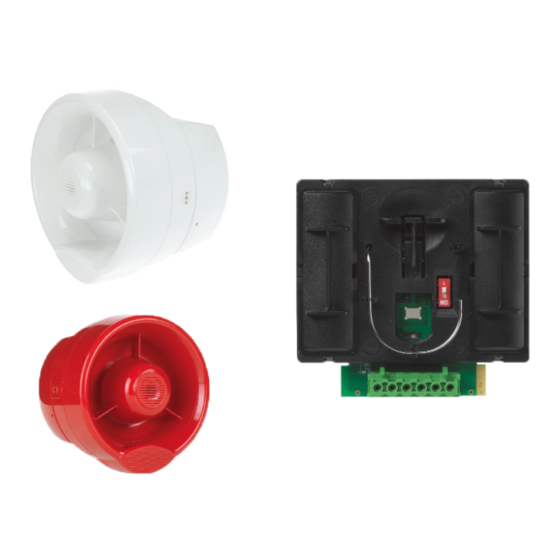

REACH Wireless Open-Area
Wall Sounder
RW1500-110APO (White Body)
RW1500-120APO (Red Body)
Apollo protocol compatibility is
handled via the Loop-Interface device,
RW1700-030APO.
See product for more detail.
Tel: +44 (0)23 9249 2412 Email: enquiries@apollo-fire.com
Fax: +44 (0)23 9249 2754 Web: www.apollo-fire.co.uk
PRODUCT CT
CERTIFICATION TION
© Apollo Fire Detectors Ltd 2022
Cert/LPCB ref. 010

Technical data

All data is supplied subject to change without notice. Specifications
are typical at 24 V, 25°C and 50% RH unless otherwise stated.
Number of Tone Pairs 16 (see table 2)
Volume Levels Four (see table 3)
Sound Output (Typical) 88 - 91 dBA (tone dependant)
Communication Range 100 m (in open space)
between Loop-Interface and
Devices
Field Device Radio Frequency 22 pairs
Channel Pairs
Radiated Power 14 dBm (25 mW)
Battery Type 2x VARTA CR123A Lithium 3 V,
1250mAh typical
Battery Lifespan Five years in normal operation with
good signal strength (no dropped
messages)
Operating Temperature -10°C to +55°C
Maximum Relative Humidity
95%
(non-condensing)
IP Rating IP 35 (Type B Indoor Use)
Standards and approvals EN54-3, EN54-25
Dimensions 126 mm diameter x 132 mm height
x 125 mm depth
Weight (including base and 350 g
Batteries)
77 mm
65 mm
126 mm
132 mm
All information in this document is given in good faith but Apollo
Fire Detectors Ltd cannot be held responsible for any omissions
or errors. The company reserves the right to change the
specifications of products at any time and without prior notice.
PP5105/2022/Issue 1
Page 1 of 4
35 mm
30 mm
80 mm
90 mm
