Apollo REACH WIRELESS RW1500-110APO Quick Start Manual

RW1500-110APO
REACH O-A Sndr – WT Bdy
UNBOXI NG
• When unboxing the sounder you will find the unit, its mounting base, a gasket
and a security key.
• The device comes with pre-formed mounting mould to ensure ease of drilling.
• Security key prongs are fitted to protect againts unwanted removal of the
attached device.
• DIP switches are found inside the sounder to select your desired tone
and volume.
For more information, please refer to the user manual. Available on apollo-fire.co.uk
Apollo Fire Detectors Ltd. 36 Brookside Road, Havant, Hampshire, United Kingdom, PO9 1JR
T: +44 (0)23 9244 2706 - E: techsales@apollo-fire.com - W: www.apollo-fire.co.uk
REACH O-A Sndr – WT Bdy

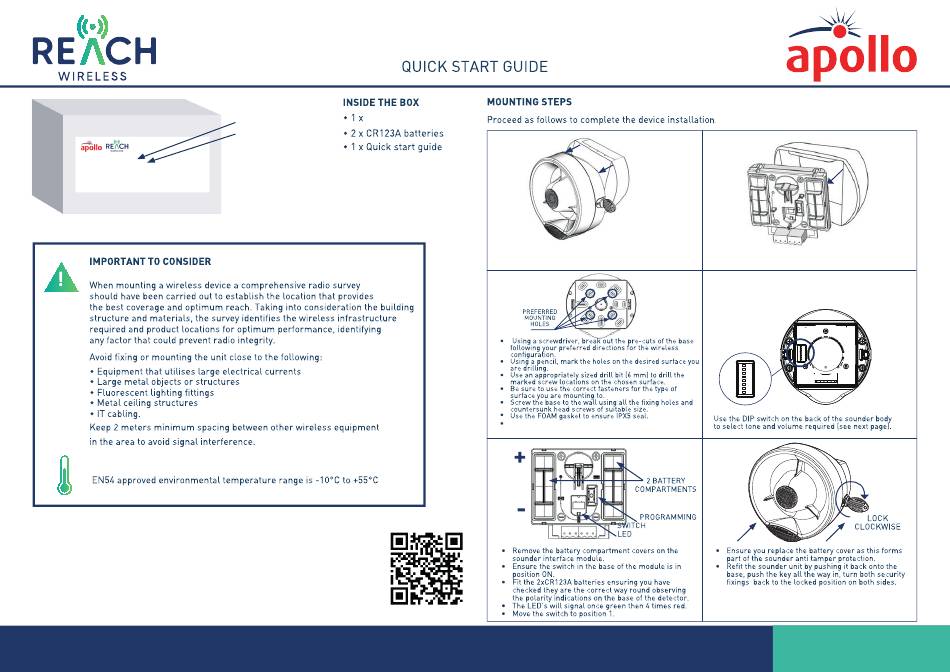

THE BOX

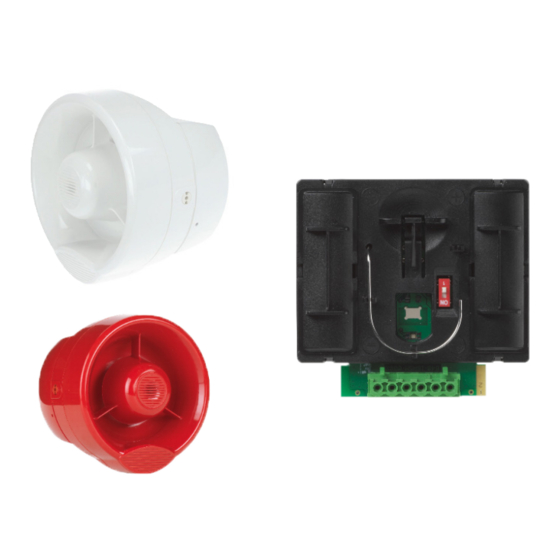

Open-Area Sounder
Product Part Number
Product Description
,
Scan QR code
for full user manual
RW1500-110APO
RW1500-110APO
Remove the mounting from the sounder by
pulling apart the two pieces.
Insert the sounder interface module into the base
locating the bottom tags and pushing back in.
1
Remove the sounder interface module
from the base.
3
5
-
RW_QSG_AV_OA_SNDR_WT_A.5
2
4
6
