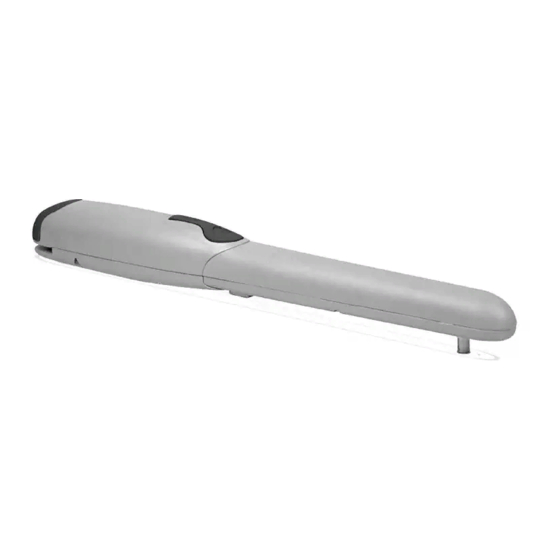

- Page 1 Wingo4024 Swing gate opener EN - Instructions and warnings for installation and use www.metalines.com sales@metalines.com...
-
Page 2: General Safety Warnings And Precautions
3.4 - Preparing for installation [d] - metal parts (screws, washers, etc.) Fig. 3 shows an example of an automation system designed with Nice compo- [e] - keys to manually unlock the gear motor nents. These components are positioned according to a typical and usual scheme. - Page 3 GRAPH 1 - Limits of use of the product Kg 400 320 mm 770 mm 98 mm 95 mm kg: Maximum weight of the gate leaf m: Maximum length of the gate leaf Making reference to fig. 3, decide the approximate position in which to install each component envisaged by the system and the most appropriate connection GRAPH 2 r.i.l.
- Page 4 90° ÷ 100° 90° ÷ 100° 100° ÷ 110° 100° ÷ 110° 110° ÷ 120° 110° ÷ 120° 110° ÷ 120° 120° ÷ 130° 120° ÷ 130° TABLE 1 A (mm) E (mm) 100 –––––– > 600~ 110 –––––– > 590~ 120 ––––––...
- Page 5 mensions A and B. mum clearance between the parts. Note – The rear bracket provided with the gearmotor has a length of 150 • Installing the gear motor on the front bracket: mm; in the case of special applications or an outward opening gate (fig. 6) 01.
-
Page 6: Electrical Connections
90 mm max ELECTRICAL CONNECTIONS INSPECTING THE AUTOMATION CAUTION! This is the most important phase in realising the automation to guarantee max- imum safety. The inspection can be used also to periodically check the devices • A wrong connection can cause faults or danger; therefore follow scrupu- which make up the automatism. -
Page 7: Product Maintenance
CAUTIONS: • The technical features set out refer to an ambient temperature of 20°C (± 5°C). • Nice S.p.a. reserves the right to make alterations to the product any time it deems it necessary, keeping the same functionality and destination of use. - Page 8 Note: The content of this declaration corresponds to declaration made in To establish the probable durability of your automatism proceed as follows: the official document filed in the offices of Nice S.p.a., and particularly the latest version thereof available prior to the printing of this manual. The text 01.
- Page 9 • Maintenance: As with each machine your automation needs periodic main- tenance so that it can function as long as possible and in complete safety. Agree a periodic maintenance plan with your fitter; Nice recommends mainte- nance every 6 months for normal domestic use, but this period may vary depending on the intensity of use: Any control, maintenance or repair work must be performed by qualified personnel.
- Page 10 www.metalines.com 10 – English sales@metalines.com...
- Page 11 Nice SpA Oderzo TV Italia www.niceforyou.com info@niceforyou.com www.metalines.com sales@metalines.com...
