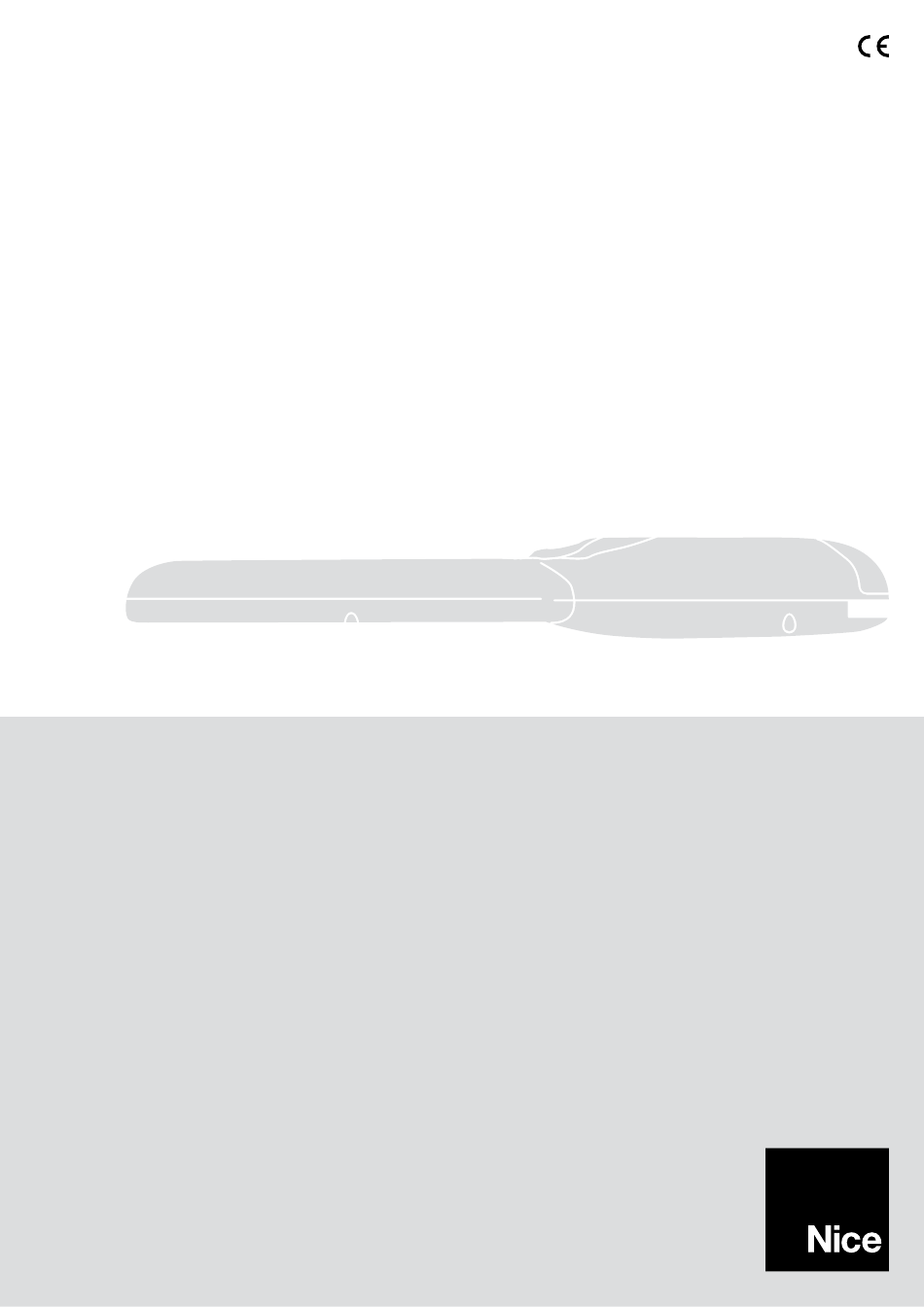

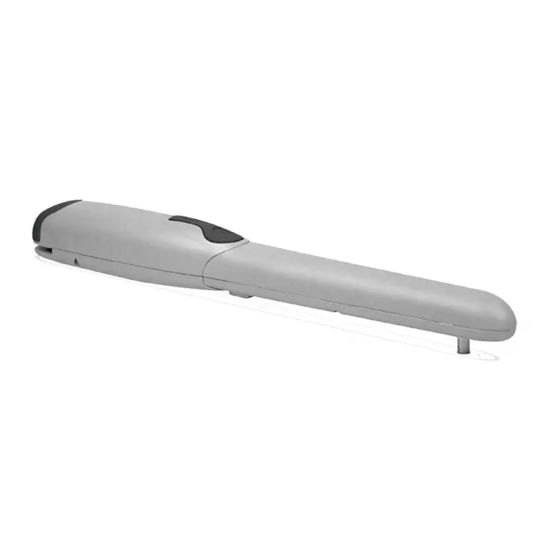

- Page 1 Nice 4024 Kit 5024 Kit 4000 Kit 5000 Kit WG3524HS Swing gate opener EN - Instructions and warnings for installation and use IT - Istruzioni ed avvertenze per l’installazione e l’uso FR - Instructions et avertissements pour l’installation et l’utilisation ES - Instrucciones y advertencias para la instalación y el uso...
- Page 3 Nota - Il contenuto di questa dichiarazione corrisponde a quanto dichiarato nell’ultima revisione disponibile, prima della stampa di questo manuale, del documento ufficiale depositato presso la sede di Nice Spa. Il presente testo è stato riadattato per motivi editoriali. / Note - The content of the present declaration corresponds to the latest available revision, before the printing of the present manual, of the document registered at the head offices of Nice S.p.a.
-
Page 4: General Safety Warnings And Precautions
All these activities can damage and cause malfunctions or dangerous situations. If this occurs, stop Fig. 3 shows an example of an automation system designed with Nice com- the installation immediately and contact the Nice Assistance Department. -
Page 5: Electrical Connections
WARNING – In the event of applications with a gate equipped with determines the value of dimension B (*) as shown in the example of fig. 5; the meeting point with line “r.i.l” (installation line recommended) deter- opening towards the outside (fig. 7) it is necessary to invert the power supply wires. -
Page 6: Product Maintenance
Demand index PRODUCT MAINTENANCE WG4024 WG5024 TABLE 2 WG4000 WG5000 WG3524HS WG4000/V1 WG5000/V1 To keep the level of safety consistent and to guarantee maximum life of the en- > 100 kg 10 % 10 % tire automation it is necessary to maintain it regularly. >... - Page 7 TECHNICAL FEATURES OF THE PRODUCT CAUTIONS: • The technical features set out refer to an ambient temperature of 20°C (± 5°C). • Nice S.p.a. reserves the right to make alterations to the product any time it deems it necessary, keeping the same functionality and destination of use.
-
Page 8: Guide De L'utilisateur
- OPERATION MANUAL - MANUALE D’USO - GUIDE DE L’UTILISATEUR - MANUAL DE USO - GEBRAUCHSANLEITUNG - INSTRUKCJA OBSŁUGI - GEBRUIKSHANDLEIDING... - Page 9 Agree a manual and cautions for the user provided by the fitter. Keep the manual for any fu- periodic maintenance plan with your fitter; Nice recommends maintenance every 6 ture doubt and deliver it to any new proprietor of the automation.
- Page 10 - Images - Immagini - Images - Imágenes - Bilder - Zdjęcia - Afbeeldingen...
- Page 11 EN GRAPH 1 “Limits of use of the product” GRAFICO 1 “Limiti d’impiego del prodotto” FR GRAPHIQUE 1 “Limites d’utilisation du produit” ES GRÁFICO 1 “Límites de empleo del producto” DE GRAPHIK 1 “Verwendungsgrenzen des Produkts” PL SCHEMAT 1 “Ograniczenia używania produktu” NL GRAFIEK 1 “Gebruiksbeperkingen van het product”...
- Page 12 EN GRAPH 2 DE GRAPHIK 2 GRAFICO 2 PL SCHEMAT 2 FR GRAPHIQUE 2 NL GRAFIEK 2 ES GRÁFICO 2 WG4024 - WG4000 - WG4000/V1 90° ÷ 100° 100° ÷ 110° recommended installation line 110° ÷ 120° 120° ÷ 130° (mm) WG5024 - WG5000 - WG5000/V1 - WG3524HS ...°...
- Page 13 - WG4000/V1 WG4024 - WG4000 98 mm 320 mm 95 mm 770 mm - WG5000/V1 - WG3524HS WG5024 - WG5000 98 mm 470 mm 920 mm...
- Page 14 XIII...
- Page 15 90° ÷ 100° 90° ÷ 100° 100° ÷ 110° 100° ÷ 110° 110° ÷ 120° 110° ÷ 120° 110° ÷ 120° 120° ÷ 130° 120° ÷ 130° (mm)
- Page 16 WG4024 - WG4000 - WG4000/V1: F = 30 mm WG5024 - WG5000 - WG5000/V1 - WG3524HS : F = 30 mm...
- Page 17 90 mm max...
- Page 18 XVII...
- Page 19 Nice SpA Oderzo TV Italia www.niceforyou.com info@niceforyou.com...
