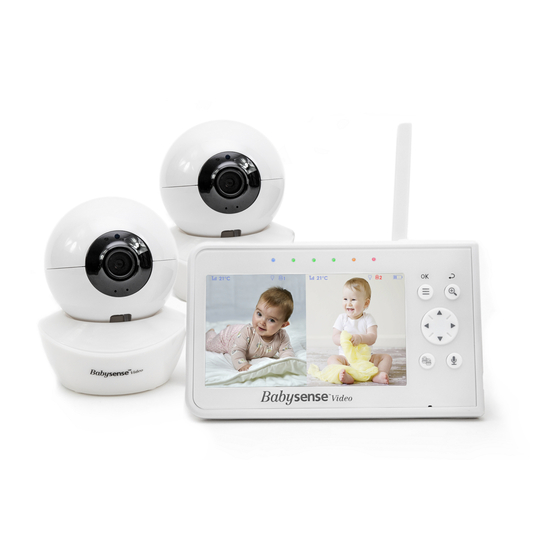

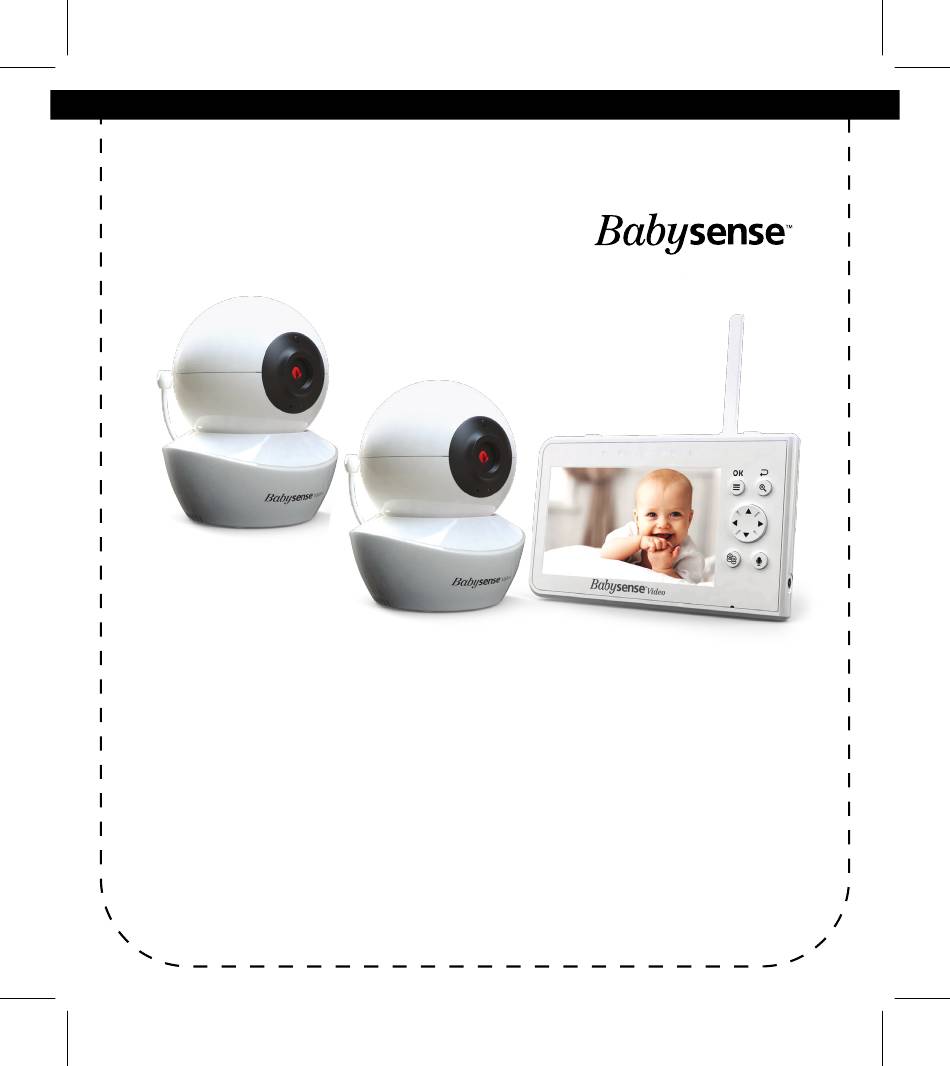

- Page 1 Video Baby Monitor Camera model V43TX(PTZ) User Manual Wireless Digital Video Baby Monitor Watch, Listen and Talk to Your Baby Model: V43RX Baby Monitor For any product related quest on please contact us at service@hisense.co.il or Toll Free Number (833) 568-2229...
-
Page 2: Table Of Contents
Table of Contents 1 Warnings and Safety Instruc�ons 1.1 WARNINGS: 1.2 Safety Instruc�ons for AC Power Adapter 1.3 Safety Instruc�ons for Li-ion ba�ery 1.4 Informa�on on disposal of ba�ery and product 2 Overview 2.1 Pack Contents 2.2 Parent Unit Overview 2.3 Baby Unit Overview 2.4 Icons Overview 3 Ge�ng Started... -
Page 3: Warnings And Safety Instruc�Ons
Never place the Baby Unit or Parent Unit inside your baby's crib, bed or playpen. • DO NOT HANDLE ROUGHLY, DROP OR THROW: Babysense Video Monitor is a high quality electronic device which must be handled with care. -
Page 4: Safety Instruc�Ons For Ac Power Adapter
• If the product becomes dirty, use a lightly damp so� cloth to wipe surfaces, taking care to not allow water into any openings. IMPORTANT: Babysense Video Monitor is designed only for hearing the baby’s voice and seeing the images of the baby. This product is not a medical device and should not be used as a subs�tute for responsible adult supervision. -
Page 5: Safety Instruc�Ons For Li-Ion Ba�Ery
Always dispose of your ba�ery and product at the end of their life in an environmentally responsible way and in accordance with your local waste disposal requirements. All cardboard and paper packaging materials should be recycled in accordance with your local council waste regula�ons. Thank you for choosing Babysense Video Monitor from Hisense Ltd. -
Page 6: Overview
2. Overview 2.1 Pack Contents • Parent Unit x 1 • Baby Unit (Camera) x 1 • AC Power Adapter x 2 • Rechargeable Lithium Ion Ba�ery (pre-installed) x 1 • Set for wall moun�ng x 1 • User Manual x 1 2.2 Parent Unit Overview 1. -
Page 7: Baby Unit Overview
2.3 Baby Unit Overview 1. Infrared LEDs 7. Temperature Sensor 2. Lens 8. ON/OFF switch 3. Light sensor (Night Vision) 9. DC Jack 4. Power LED 10. Speaker 5. Night Light 11. PAIR Bu�on 6. Microphone 2.4 Icons Overview ------- Signal ------- Volume ------- Brightness ------ Night Light... -
Page 8: Ge�Ng Started
• Press and hold the Power bu�on (1) on the top le� side of the Parent Unit for 2 seconds to turn the unit on. • Once the Parent Unit is turned on, the green power LED (3) will light up and “Babysense Video”... -
Page 9: Opera�Ng The Monitor
• Never place the Baby Unit inside the crib, bed or playpen. • Make sure the unit, cords and mains adaptor are out of reach of the baby and other young children. • To avoid a strangula�on hazard, the power cords should be secured and never be hung on the crib or near the baby. -
Page 10: Scan Mode - Automa�C Switching Between The Paired Baby Units
4.3 Scan Mode - Automa�c switching between the paired Baby Units (Cameras) You can set the SCAN (loop) mode and each paired Baby Unit will be displayed on the screen for 10 seconds and then the screen will automa�cally change to the next paired Baby Unit. •... -
Page 11: Audio Only Mode (Video Off - Audio On)
4.6 Audio Only Mode (Video OFF – Audio ON) • Briefly press the power bu�on (1) to turn the LCD screen ON or OFF. NOTE: This mode will turn the video transmission off but s�ll allow you to hear sounds from the camera/s. •... -
Page 12: Temperature Se�Ng
• Press the MENU/OK bu�on (6) on your Parent Unit and the menu screen will pop up. • Navigate using the PAN/TILT/MENU NAVIGATION keys (8) un�l the Temperature icon is highlighted in red. • Press the PAN/TILT/MENU NAVIGATION keys (8) to select the desired temperature scale (°F or °C) and press the MENU/OK bu�on (6) to confirm. -
Page 13: Night Light
4.14 Night Light This monitor features a night light integrated into the Baby Unit (5), allowing you to remotely ac�vate a comfor�ng glow in baby's room. There are 3 light levels (from low to high) to choose from. • Press the MENU/OK bu�on (6) on your Parent Unit and the menu screen will pop up. •... - Page 14 Cannot hear the baby sounds • Volume se�ng on the Parent Unit may be too low. Increase the volume. on the Parent Unit • Ba�ery power may be too low. Recharge the ba�ery. Background noises • In a quiet environment, surrounding the Parent Unit, decrease the volume on your Parent Unit to level 3 and below.
-
Page 15: Fcc Statements
7. SPECIFICATIONS Product Model V43RX(Present Unit),V43TX(PTZ)(Baby Unit) Frequency 2.4GHz FHSS Type of Modulation GFSK Data Rate 4 Mbps Channel Bandwidth 3.5 M Transmission Range Up to 960 feet / 300 meters (open space – no obstructions) Input Voltage 5V, 700mA Input: 240-100VAC 50/60 Hz, 300mA Max;... -
Page 16: Specifica�Ons
9. IC Statements This device complies with Industry Canada license-exempt RSS standard(s): Opera�on is subject to the following Two condi�ons: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired opera�on of the device.
