Summary of Contents for BabySense PC01-CR

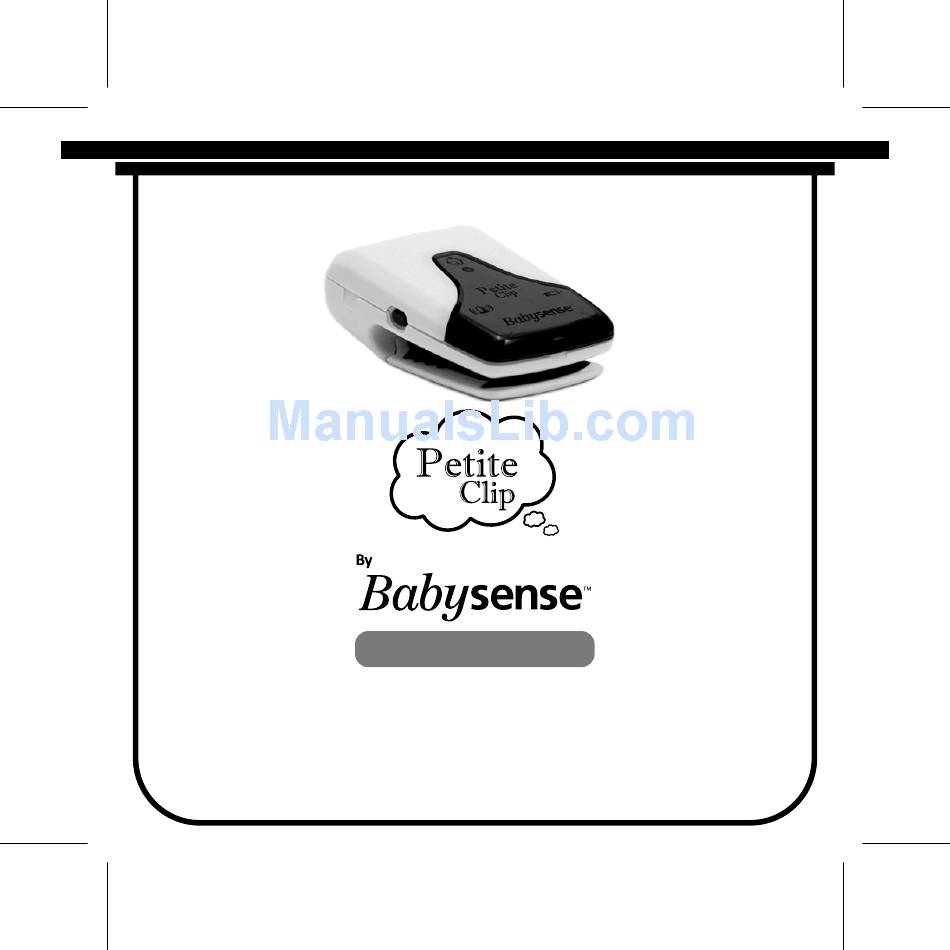

- Page 1 User Guide -English- Model: PC01-CR To be used with CR2 3V Lithium Battery only...
- Page 2 IMPORTANT: • Before installing and using Petite Clip, make sure you read all the instructions carefully. • Keep these instructions for future reference. • Do not use improvised straps to hold the monitor as they might create a restriction and choking hazards. •...
- Page 3 • Keep the monitor safely stored and away from children when not in use. • Contains small parts that could be dangerous to children if taken apart. • Discard parts of the packaging that may be hazardous to children. • Use the monitor only when baby is in motionless location.
-
Page 4: Safety Warnings
SAFETY WARNINGS: • Petite Clip should not be exposed to rain, moisture, dripping or splashing. • Petite Clip should not be exposed to direct heat sources such as candle, fireplace, radiator, heat register, stove or other appliances that emit heat. The unit should not be left in direct sunlight. - Page 5 in respect of the monitor, and all warranties, whether express, implied or tacit, and any other liability from whatsoever cause arising, are hereby expressly excluded and the customer hereby indemnifies and holds harmless Hisense in respect of such liability. What's in the Box •...
- Page 6 Principal of Operation BABYSENSE Petite Clip constantly monitors baby’s movements and activates a gentle vibrating stimulation if no tummy movement is detected at all for a period of 15 seconds. In some cases, such tactile stimulation is enough to reassert baby’s movement, and in this case Petite Clip will revert to monitoring mode.
- Page 7 Fitting your monitor Fitting to a Diaper: A properly fitted diaper is essential for the proper function of your Petite Clip. Fasten the diaper with the two stretchy tabs (Fig. B). The thin flap of material at the top of the diaper must be folded over the fastened tabs (Fig.C).
- Page 8 Fig E Fig F Fitting on baby’s clothing (over the diaper): Set the device to sensitive mode as described in "Sensitive Mode" section below. Petite Clip Petite Clip can also be used clipped onto the waistband of elasticated pants and on a thin layer of clothing separating the sensor from the skin, as long as the movement sensor is snugly fitted in the baby's tummy area.
-
Page 9: Understanding The Indicator Light
IMPORTANT: Use the monitor only when baby is in a motionless area. Do not use in car seat, stroller, swing or mobile carrier while they are moving, as their motion negates the functionality of the monitor. IMPORTANT: Whenever baby is put to sleep make sure the device is properly fitted and the green Movement Indicator Light is blinking. - Page 10 Note: when turning on the unit, all indicator lights are turned on in an automated sequence and an audible signal is heard. • When turning on the unit, while the battery is low, 10 clicks will sound indicating that the battery needs to be replaced.
- Page 11 In order to switch back the device to the regular mode, turn the device OFF and back ON. NOTE: After turning sensitive mode on, make sure the green Movement Indicator Light is blinking. Ticking mode Re-pressing the power button briefly while the device is already ON, will add an audible TICK with every blink of the green Movement Indicator Light.
- Page 12 Daily Performance Test Checking the proper performance of the device: • Test the proper operation of the device by pressing briefly the ON / OFF button. All indicator lights should momentarily turn on, accompanied by an audible signal. • Make gentle sliding movements with your finger over the monitor’s sensor pad to simulate movement.
- Page 13 • The Performance Test must be conducted daily. * In case the alarm does not sound, refer to the Troubleshooting Guide. Replacing the Battery • Use only CR2 3V Lithium Battery • To replace the battery, follow the instructions on our website: www.babysensellc.com/product/petite-clip Care and Maintenance Fig I...
-
Page 14: Specifications
Storing and reusing the device When you are no longer using your Petite Clip, always store the product safely to avoid damage. - Store in a dry shaded place. - Do not place heavy objects on the product and avoid shocks. - If you choose to reuse the product again, ensure you read all the Instructions and test the product carefully in accordance with the user instructions. -
Page 15: Troubleshooting Guide
Troubleshooting Guide Symptom Possible Cause Solution The Petite Clip • Battery is not inserted • Check that battery is does not turn correctly or may be inserted, observing the flat. correct polarity. If indicator lights are still OFF, change the battery. Low Battery •... - Page 16 Troubleshooting Guide Symptom Possible Cause Solution • Fold the diaper over on top so it's really secure when you clip the monitor on. Folding down the top of the diaper seems to reduce significantly the risk of false alarms. • If your baby is rolling over a lot, it is also possible to put a onesie and a pair of sweat pants on, and then...
