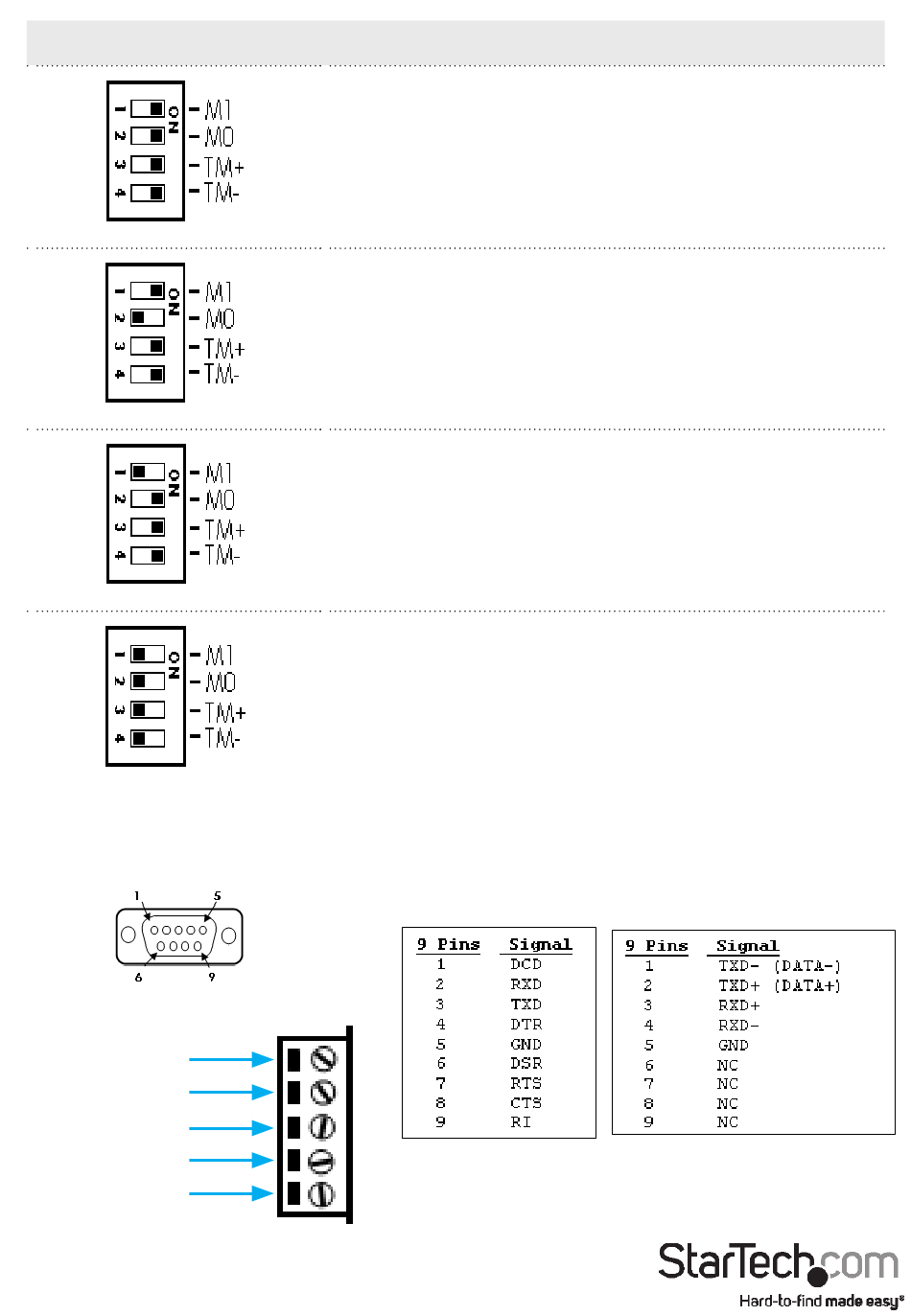

DIP Switch Setting
Pinout Diagram
S1
S2
TxD+ (Data+)
TxD- (Data-)
RxD+
RxD-
GND
Instruction Manual
Description
NOTE: switch 3 and 4 must be set to OFF for RS232
mode to work correctly.
RS232
4
RS485 - 2-wire
(default)
RS485 - 4-wire
RS422
RS232
RS422(4-wire)/485 (4-wire/2-wire)
