2 Port Industrial USB to RJ45 Serial Adapter
ICUSB2322RJ
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 12/01/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com ICUSB2322RJ
Summary of Contents for StarTech.com ICUSB2322RJ
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 12/01/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Verifying Installation ..........................4 Pinout .......................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction

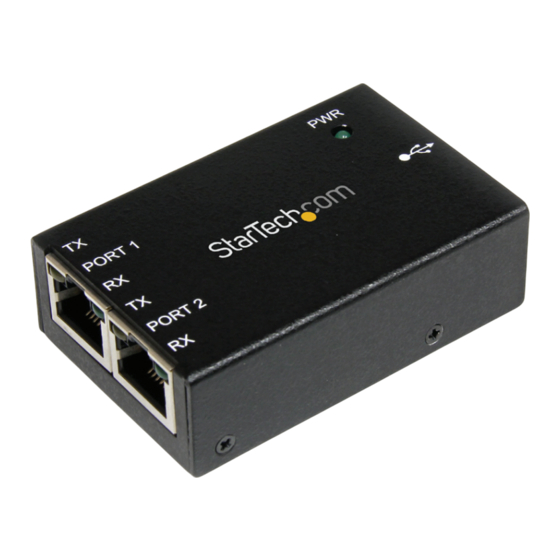

Introduction The ICUSB2322RJ 2 Port Industrial USB to Serial RJ45 Adapter (Wallmount and DIN Rail) allows you to add two RS232 serial connections using RJ45 signaling ports to a PC or Server through a single USB 2.0 port. The RS232 to RJ45 adapter features COM port retention to maintain your port number assignments across a reboot and supports serial data rates up to 921 Kbps. -
Page 5: Installation
Installation Hardware Installation Windows 2000/XP/Server 2003 1. Plug the USB adapter into an available USB port on the computer. 2. When the Found New Hardware wizard appears on the screen, insert the Driver CD into your CD/DVD drive. If you are prompted to connect to Windows Update, please select the “No, not this time”... - Page 6 Windows Vista/7/Server 2008 R2 1. Plug the USB adapter into an available USB port on the computer. 2. When the Found New Hardware window appears on the screen, click on the “Locate and install drivers software (recommended)” option. If prompted to search online, select the “Don’t search online”...
-
Page 7: Verifying Installation
Verifying Installation Windows 2000/XP/Vista/7 From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select “Manage”. In the Computer Management window, select “Device Manager” from the left window panel. Double-click on the “Ports (COM & LPT)” option. Additional COM port(s) should be visible. -
Page 8: Specifications
Specifications Number of Ports Host Interface USB 2.0 Chipset ID FTDI FT232R 1 x USB 2.0 type B female Connectors 2 x RJ45 Ethernet female 1 x Power LEDs 2 x Data Transmit 2 x Data Receive Supported Protocols RS232 Maximum Data Rate 921.6 Kbps Data Bits... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
