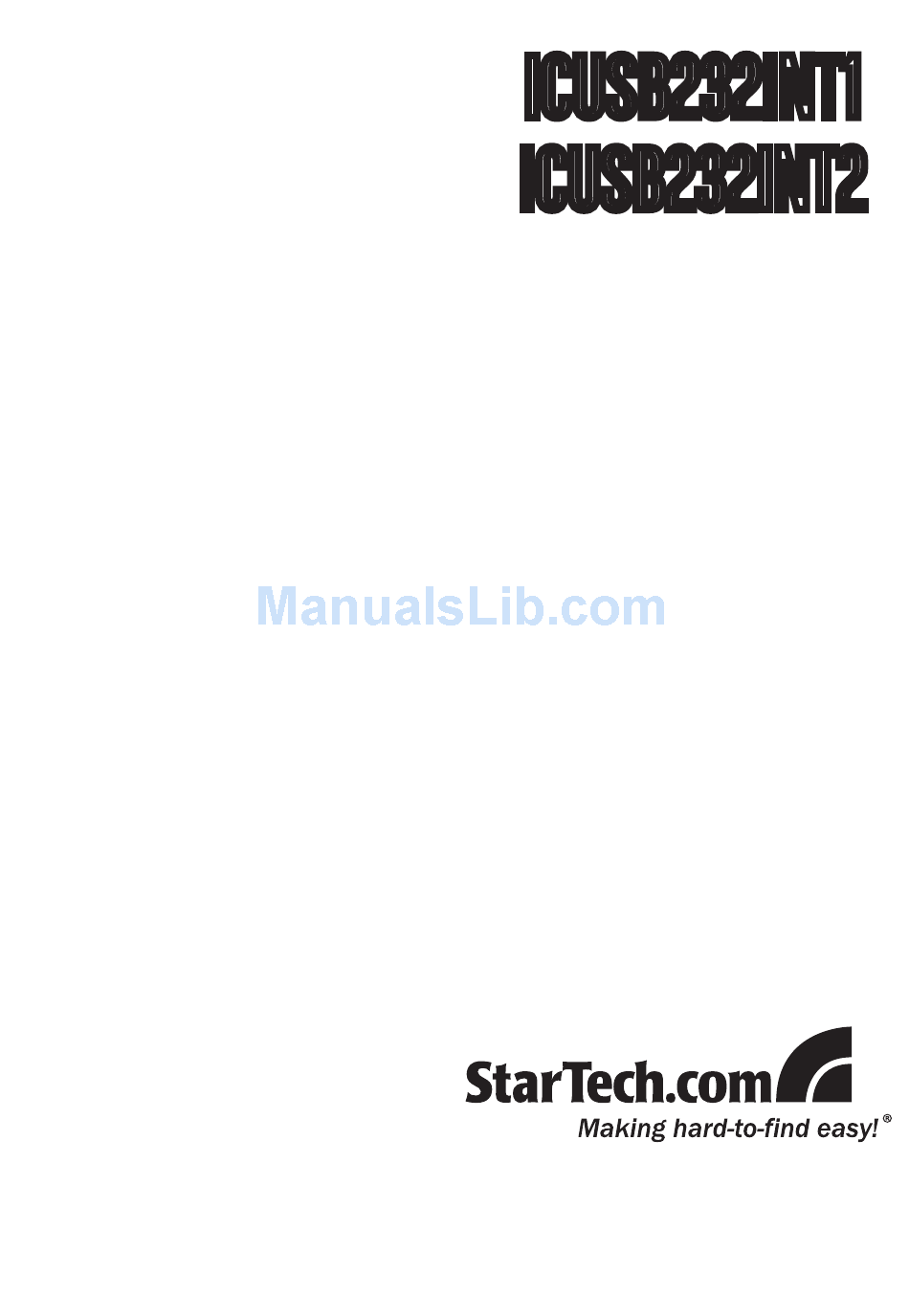

- Page 1 ICUSB232INT1 ICUSB232INT2 Instruction Manual USB to Serial Adapter Internal 1/2-Port USB to Serial Adapter with Rear Expansion Slot Bracket Manual Revision:07/26/2010 For the most up-to-date information, please visit www.startech.com...
- Page 2 Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
-
Page 3: Table Of Contents
Table of Contents Introduction .............. 1 Packaging Contents.............1 System Requirements ............1 Installation ..............2 Hardware Installation ............2 Driver Installation ..............2 Specifications ............4 Technical Support ............ 5 Warranty Information ..........5... -
Page 4: Introduction

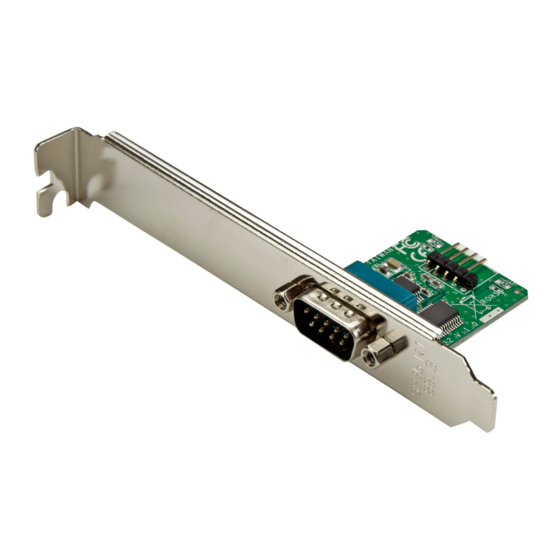

Introduction The StarTech.com Internal 1 or 2-Port USB to Serial Converter Adapter provides the ability to add 1 or 2 RS232 serial ports to any desktop system equipped with an available USB motherboard header. Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed. -
Page 5: Installation
WARNING! Computer parts can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. - Page 6 3. Windows should now start searching for the drivers. Once this has completed, click the Finish button. Windows Vista/7/Server 2008 R2 1. When the Found New Hardware window appears on the screen, click on the “Locate and install drivers software (recommended)” option. If prompted to search online, select the “Don’t search online”...
-
Page 7: Specifications
Specifications ICUSB232INT1 ICUSB232INT2 Bus Interface USB 2.0 Form Factor Full/Low Profile Chipset ID FTDI FT232R 1 x DB9 male 2 x DB9 male Connectors 1 x 9-pin IDC 1 x 9-pin IDC female female Supported Protocols RS232 Maximum Data 115.2 Kbps... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech. com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,... - Page 9 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products,...
