2 Port USB to RS232/422/485 Serial

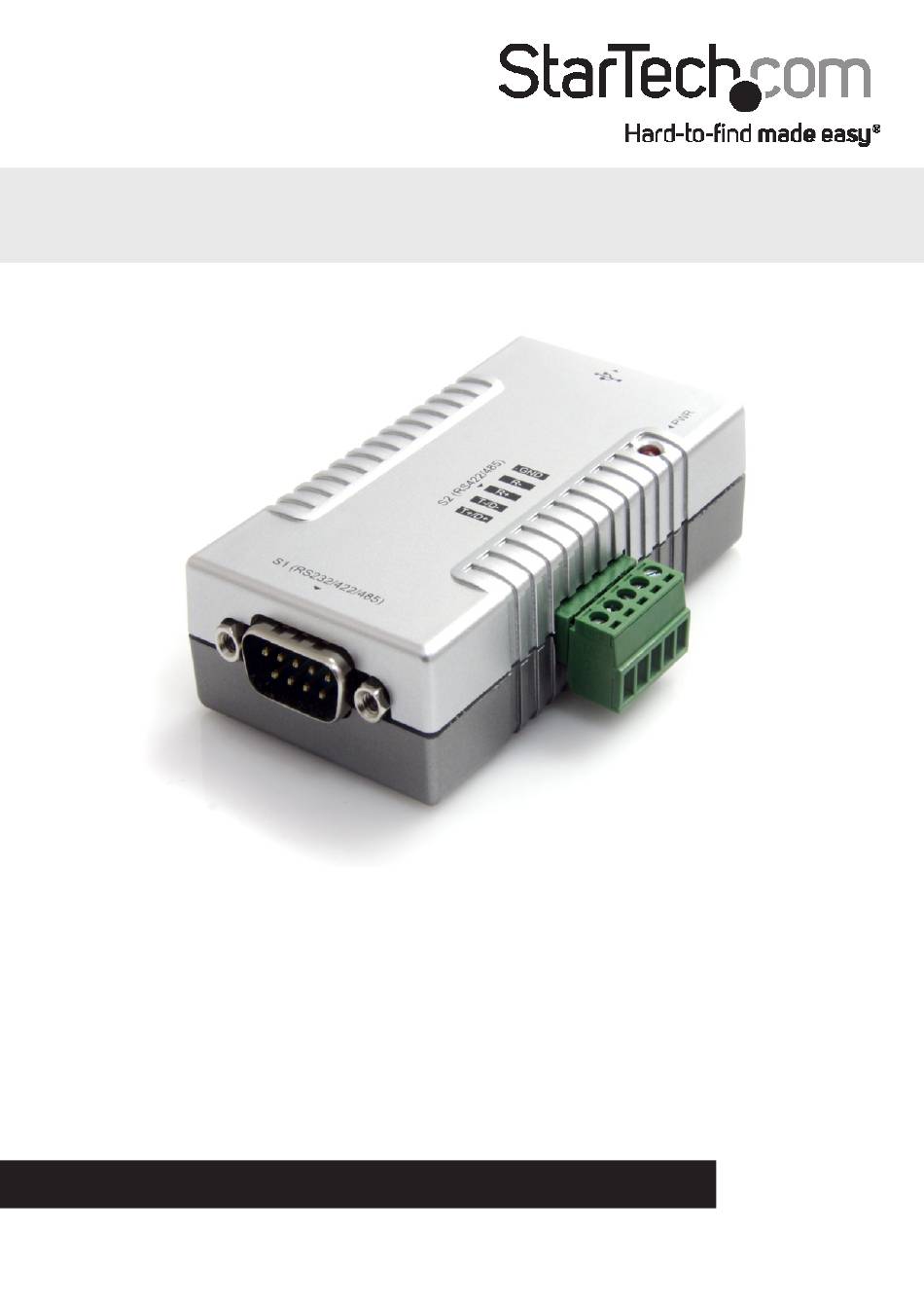

Adapter with COM Retention
ICUSB2324852
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/10/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ICUSB2324852
Summary of Contents for StarTech.com ICUSB2324852
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/10/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Side 1 View ..............................2 Side 2 View ..............................2 Installation ....................3 Dip Switch Settings ..........................3 Pinout Diagram ..................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
Introduction The StarTech.com 2-Port USB to RS232/422/485 Serial Adapter provides two serial ports to a USB compatible desktop, laptop or netbook computer system. Capable of RS232/422/485 serial modes, and both a DB9 and 5-wire terminal block connector, this serial adapter is a versatile solution for adding external serial connectivity to a newer computer system that does not have any serial ports. -
Page 5: Side 1 View
Side 1 View Power connector USB connector (Host) Side 2 View Power LED Terminal Block (S2) Supports RS422/485 DB9 connector (S1) Supports RS232/422/485 *actual product may vary from photos Instruction Manual... -
Page 6: Installation
Installation 1. Connect the USB adapter into an available USB port on the computer. If the USB adapter is unable to draw enough power from the USB port, connecting an external power adapter (not included) may be required. 2. Insert the Driver Installation CD into the computer’s CD/DVD drive. 3. -
Page 7: Pinout Diagram
DIP Switch Setting Description RS485 - 2-wire (default) RS485 - 4-wire RS422 RS232 NOTE: switch 3 and 4 must be set to OFF for RS232 mode to work correctly. Pinout Diagram RS232 RS422(4-wire)/485 (4-wire/2-wire) TxD+ (Data+) TxD- (Data-) RxD+ RxD- Instruction Manual... -
Page 8: Specifications
Specifications Bus Interface USB 2.0 Chipset ID FTDI FT2232H 1 x DB9 male Connectors 1 x 5-wire Terminal Block 1 x USB type B female LEDs 1 x Power Supported Protocols RS-232/422/485 Maximum Data Transfer Rate 921.6 Kbps Operating Temperature 0°C ~ 55°C (32°F ~ 131°F) Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F) -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
