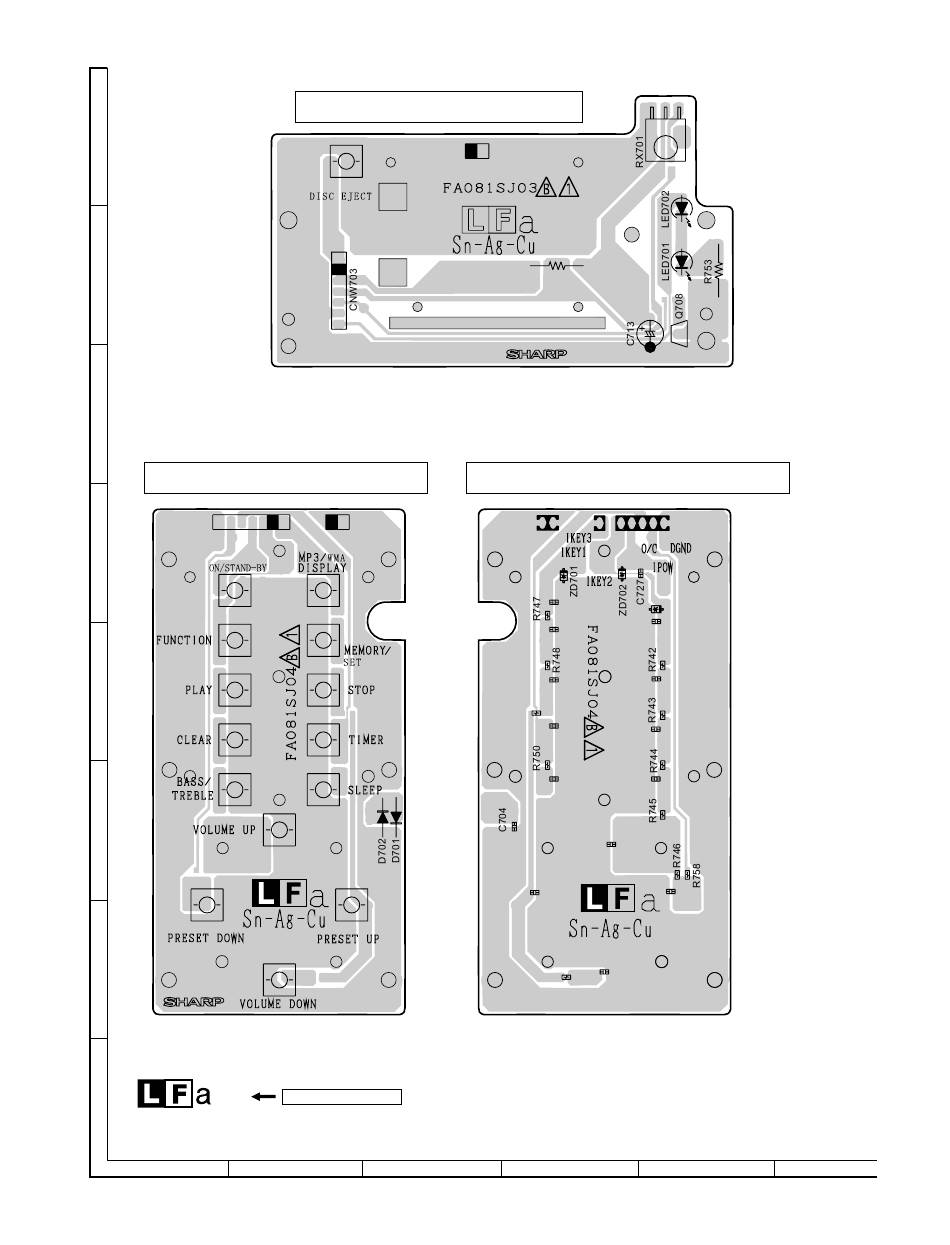

[11] WIRING SIDE OF PWB DISPLAY/SWITCH
A
B
C
SWITCH PWB-A4 (TOP VIEW)
D
SW707
SW701
E
SW702
SW703
SW704
F
SW706
G
H
Lead-free solder is used in there DISPLAY,SENSOR,SWITCH PWB.
Refer to "Precautions for handling lead-free solder" for instructions
and precautions.
1
SENSOR PWB-A3 (TOP VIEW)
SW708
CNW705
CNW702
SW709
SW710
SW711
SW712
SW713
CFW701
SW705
SW714
SW715
Lead-free solder indication
2
Figure 6-18 WIRING SIDE OF PWB (9/10)
CNP705
R755
SWITCH PWB-A4 (BOTTOM VIEW)
C729
C730
C731
R751
C732
C733
C725
C734
C735
R752
3
4
6 – 18
ZD703
C721
C722
C723
C724
C726
5
6
