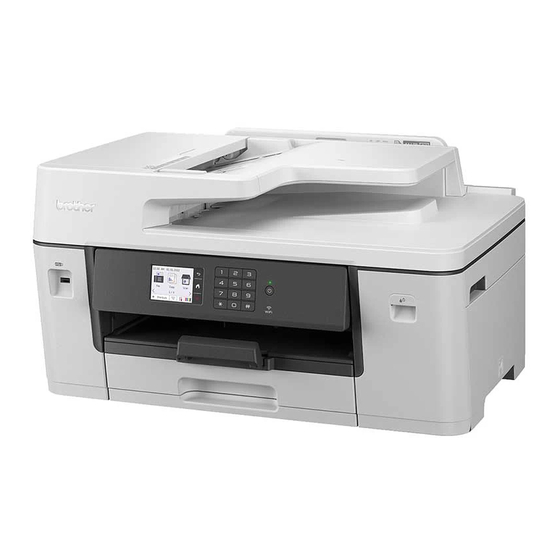

Brother MFC-J3540DW Quick Setup Manual

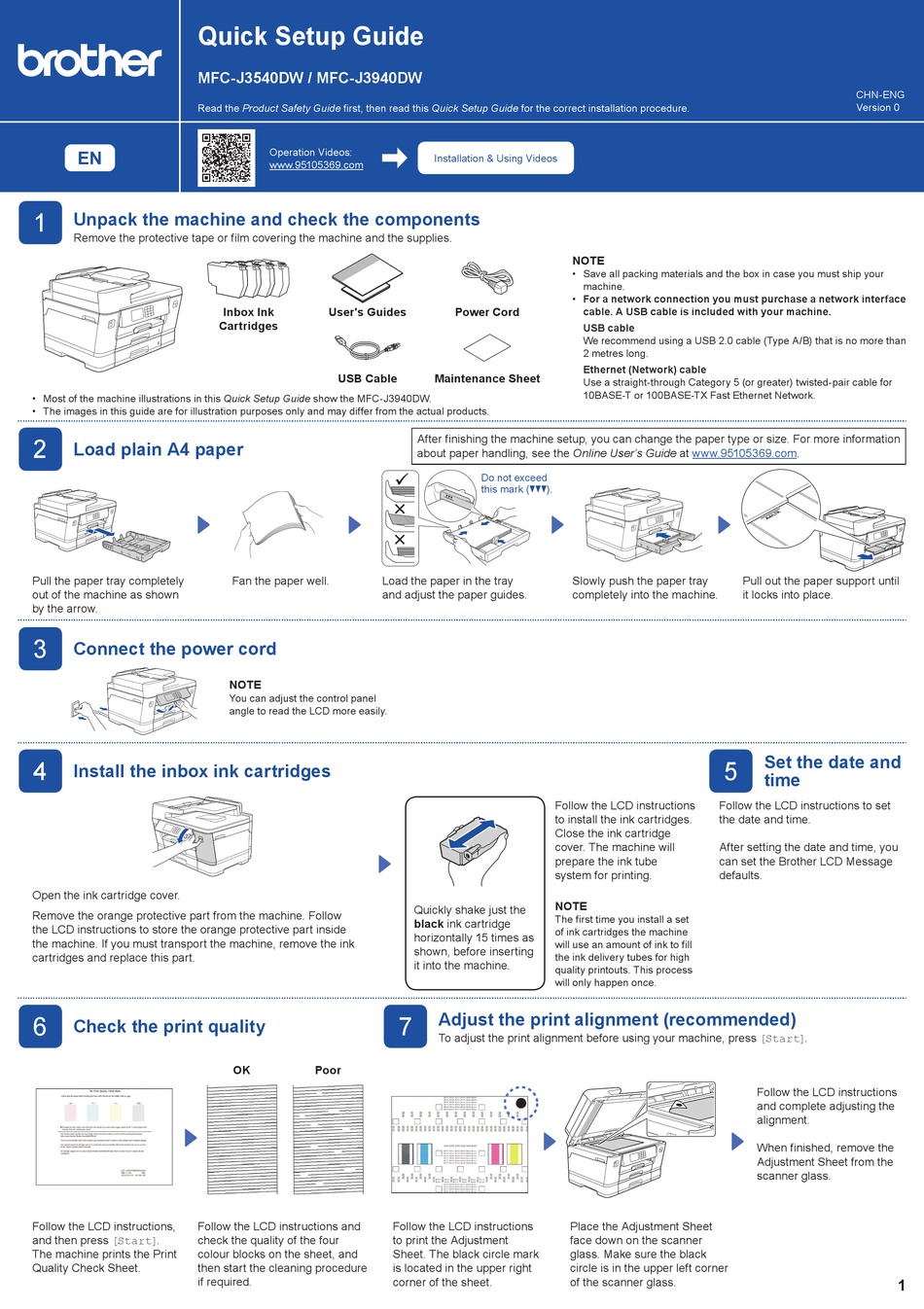

Quick Setup Guide
MFC-J3540DW / MFC-J3940DW
Read the Product Safety Guide first, then read this Quick Setup Guide for the correct installation procedure.
EN
1
Unpack the machine and check the components
Remove the protective tape or film covering the machine and the supplies.
• Most of the machine illustrations in this Quick Setup Guide show the MFC-J3940DW.
• The images in this guide are for illustration purposes only and may differ from the actual products.
2
Load plain A4 paper
Pull the paper tray completely
out of the machine as shown
by the arrow.
3
Connect the power cord
4
Install the inbox ink cartridges
Open the ink cartridge cover.
Remove the orange protective part from the machine. Follow
the LCD instructions to store the orange protective part inside
the machine. If you must transport the machine, remove the ink
cartridges and replace this part.
6
Check the print quality
Follow the LCD instructions, Follow the LCD instructions and
and then press [Start].
check the quality of the four
The machine prints the Print colour blocks on the sheet, and
Quality Check Sheet. then start the cleaning procedure
if required.
Operation Videos:
www.95105369.com
Inbox Ink User's Guides
Cartridges
USB Cable
Fan the paper well. Load the paper in the tray
and adjust the paper guides.
NOTE
You can adjust the control panel
angle to read the LCD more easily.
OK Poor
Follow the LCD instructions
to print the Adjustment
Sheet. The black circle mark
is located in the upper right
corner of the sheet.
Installation & Using Videos
NOTE
• Save all packing materials and the box in case you must ship your
• For a network connection you must purchase a network interface
Power Cord
Maintenance Sheet
After finishing the machine setup, you can change the paper type or size. For more information
about paper handling, see the Online User's Guide at www.95105369.com.
Do not exceed
this mark (bbb).
Slowly push the paper tray
completely into the machine.
Follow the LCD instructions
to install the ink cartridges.
Close the ink cartridge
cover. The machine will
prepare the ink tube
system for printing.
NOTE
Quickly shake just the
The first time you install a set
black ink cartridge
of ink cartridges the machine
horizontally 15 times as
will use an amount of ink to fill
shown, before inserting
the ink delivery tubes for high
it into the machine.
quality printouts. This process
will only happen once.
Adjust the print alignment (recommended)
7
To adjust the print alignment before using your machine, press [Start].
Place the Adjustment Sheet
face down on the scanner
glass. Make sure the black
circle is in the upper left corner
of the scanner glass.
machine.
cable. A USB cable is included with your machine.
USB cable
We recommend using a USB 2.0 cable (Type A/B) that is no more than
2 metres long.
Ethernet (Network) cable
Use a straight-through Category 5 (or greater) twisted-pair cable for
10BASE-T or 100BASE-TX Fast Ethernet Network.
Pull out the paper support until
it locks into place.
5
Follow the LCD instructions to set
the date and time.
After setting the date and time, you
can set the Brother LCD Message
defaults.
Follow the LCD instructions
and complete adjusting the
alignment.
When finished, remove the
Adjustment Sheet from the
scanner glass.
