TE 2396868-1 Instruction Sheet

Crimping die and terminal locator assembly for non-te ring tongue bending terminals

Advertisement

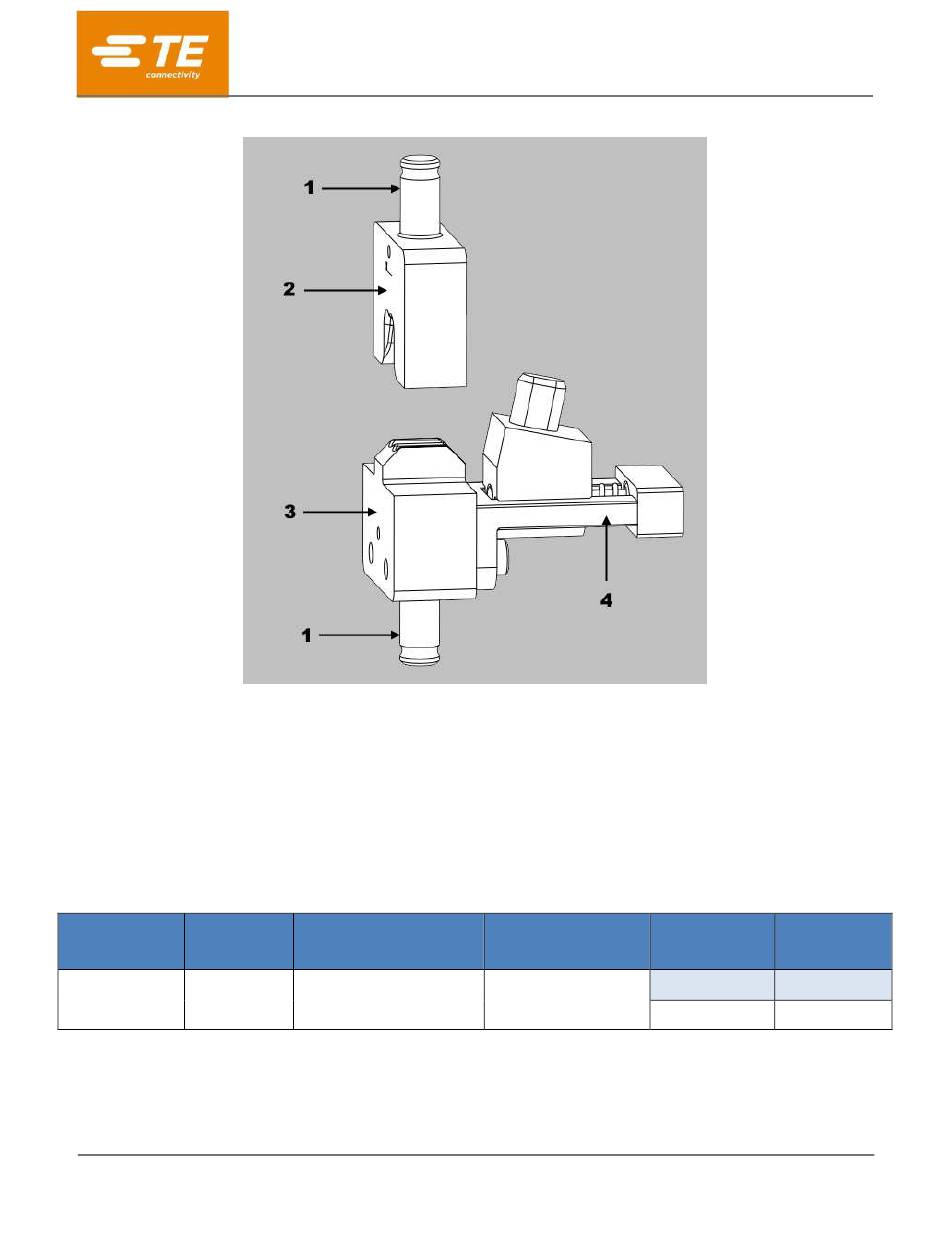

Figure 1: Crimping die and terminal locator assembly for non-TE ring tongue bending terminals

1. INTRODUCTION

The crimping die assembly (Figure 1) is designed to be installed into the modular tool holders listed in Table 1.
The crimping die assembly is designed to crimp non-TE ring tongue bending terminals.
Wire range
assembly
2396868-1
35mm²

2. DESCRIPTION

Each crimping die assembly consists of a crimper, an anvil, and a terminal locator assembly (as shown in
Figure 1).
© 2021 TE Connectivity Ltd. family of companies.
All Rights Reserved.
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
Crimping Die and Terminal Locator Assembly
for Non-TE Ring Tongue Bending Terminals
1
Shank
2
Crimper
3
Anvil
4
Terminal locator assembly
Table 1: Part numbers and documents
Manufacturer's
terminal part number
1002308
PRODUCT INFORMATION 1-800-522-6752
Manufacturer's
Modular tool
specification
holder
2305470-1
F1002308
2326378-1
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
Instruction Sheet
408-35253
DEC 2021 Rev A
15
Instruction
sheet
408-35048
408-35049
1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2396868-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for TE 2396868-1

  • Page 1 1 of 5 For latest revision and Regional Customer Service, All Rights Reserved. visit our website at www.te.com. TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
  • Page 2 408-35253 NOTE The terminal locator assembly maintains the terminal position during the crimping process. It is supplied pre-assembled to the crimping die. 3. INSTALLING THE DIE ASSEMBLY For information concerning die installation, removal and general performance of each modular tool holder, refer to the applicable 408 series instruction sheet packaged with the tool holder (Table 1).
  • Page 3 408-35253 4. CRIMPING Strip length and specific crimp information for each terminal being crimped using this die assembly can be found in the manufacturer’s specification referenced in Table 1. CAUTION If the tool holder is equipped with a crimp height (fine adjust) adjustment, you can avoid damage to the terminator, modular tool holder or die assembly by starting at setting A on the crimp disc and incrementally adjusting to the specified crimp height.
  • Page 4 408-35253 3. Close the wire clamp to clamp the wire in place. 4. Cycle the terminator to complete the crimp (Figure 5). Figure 5: Cycling the terminator 5. Open the wire clamp to remove the crimped assembly from the tooling. 5.
  • Page 5 408-35253 7. REPLACEMENT AND REPAIR If the dies are damaged or worn excessively, they must be replaced. Order replacement dies through your TE representative. You can also order parts by any of the following methods:  Go to TE.com and click the Shop TE link at the top of the page.
