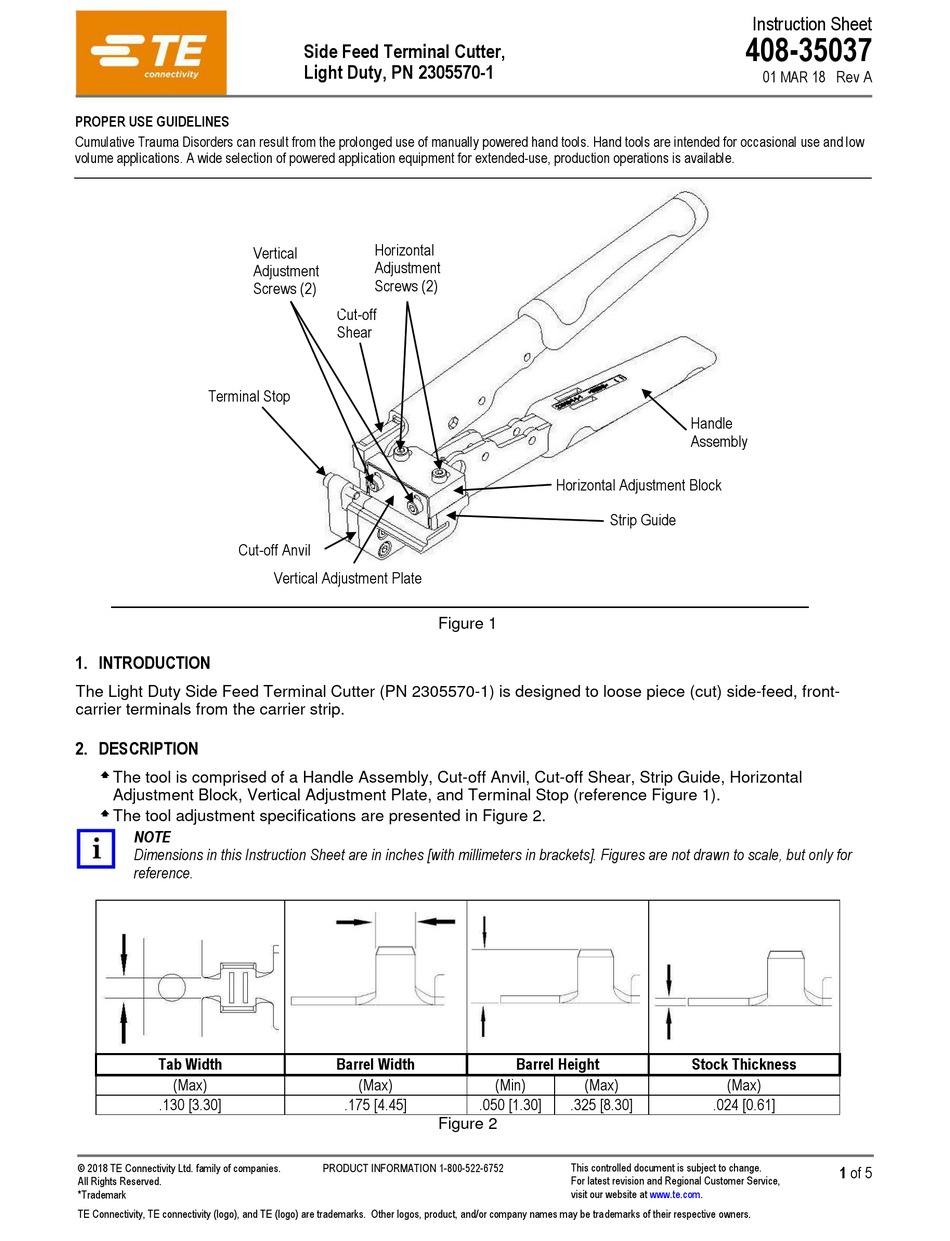

TE 2305570-1 Instruction Sheet

Side feed terminal cutter, light duty

Advertisement

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low
volume applications. A wide selection of powered application equipment for extended-use, production operations is available.
Vertical
Adjustment
Screws (2)
Terminal Stop
Cut-off Anvil
1. INTRODUCTION
The Light Duty Side Feed Terminal Cutter (PN 2305570-1) is designed to loose piece (cut) side-feed, front-
carrier terminals from the carrier strip.
2. DESCRIPTION
The tool is comprised of a Handle Assembly, Cut-off Anvil, Cut-off Shear, Strip Guide, Horizontal
Adjustment Block, Vertical Adjustment Plate, and Terminal Stop (reference Figure 1).
The tool adjustment specifications are presented in Figure 2.
NOTE
Dimensions in this Instruction Sheet are in inches [with millimeters in brackets]. Figures are not drawn to scale, but only for
reference.
Tab Width
(Max)
.130 [3.30]
© 2018 TE Connectivity Ltd. family of companies.
All Rights Reserved.
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
Side Feed Terminal Cutter,
Light Duty, PN 2305570-1
Horizontal
Adjustment
Screws (2)
Cut-off
Shear
Vertical Adjustment Plate
Figure 1
Barrel Width
(Max)
.175 [4.45]
Figure 2
PRODUCT INFORMATION 1-800-522-6752
Horizontal Adjustment Block
Strip Guide
Barrel Height
(Min)
(Max)
.050 [1.30]
.325 [8.30]
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
Instruction Sheet
408-35037
Rev A
01 MAR 18
Handle
Assembly
Stock Thickness
(Max)
.024 [0.61]
1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2305570-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TE 2305570-1

  • Page 1 1 of 5 All Rights Reserved. For latest revision and Regional Customer Service, visit our website at www.te.com. *Trademark TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
  • Page 2: Terminal Description

    408-35037 3. TERMINAL DESCRIPTION NOTE This tool is designed specifically to loose piece side-feed front-carrier terminals. Tool is not designed to loose piece end- feed, center-carrier or dual-carrier terminals. 3.1. Side-Feed Front-Carrier Terminals Terminal consisting of a contact body, crimp barrels, tab and single-carrier strip located adjacent to the crimp barrels.
  • Page 3: Adjustment Procedure

    408-35037 3.4. Dual-Carrier Terminals Terminal consisting of a contact body, crimp barrels, a tab and carrier strip adjacent to the crimp barrels of the contact, and, a tab and carrier strip adjacent to the contact body portion of the contact. Carrier Strip Carrier Strip Crimp Barrels...
  • Page 4 CAUTION The terminal strip should have minimal clearance between the Insulation or Wire Barrel and the Strip Guide. Excessive clearance may allow tab length to exceed the TE requirement for the specific terminal being cut. 4 of 5 Rev A...
  • Page 5: Cutting Procedure

    2. Cycle the hand tool to shear the terminal from the carrier strip. Measure the cut-off tab length to confirm it is within TE specification for the specific terminal being cut. Note: If cut-off tab does not meet the TE specification, repeat set-up procedure in Section 4.
