Because each of the two memory buses in this architecture is capable of returning data to the
. .
processor at the full 533-MB/s speed of the processor bus, it could seem superfluous to have more
. .
memory bandwidth than can be sent across the processor bus. One could envision the system
. .
. .
looking like a funnel, with the bottleneck being the processor bus. This is not true, however. To
. .
understand why, we must look at how DRAM memory works.
. .
. .
. .
Accessing DRAM memory is relatively slow, in part because the DRAM cannot transfer data
. .
continuously. In fact, as Figure 3 illustrates, a typical memory cycle transfers data only about one
. .
. .
third of the time. First, the DRAM must be precharged. Second, the memory address of the data
. .
being sought must be sent to the DRAM. Finally, the DRAM can transfer data.
. .
. .
. .
. .
. .
. .
CAS Precharge
. .
. .
. .
. .
. .

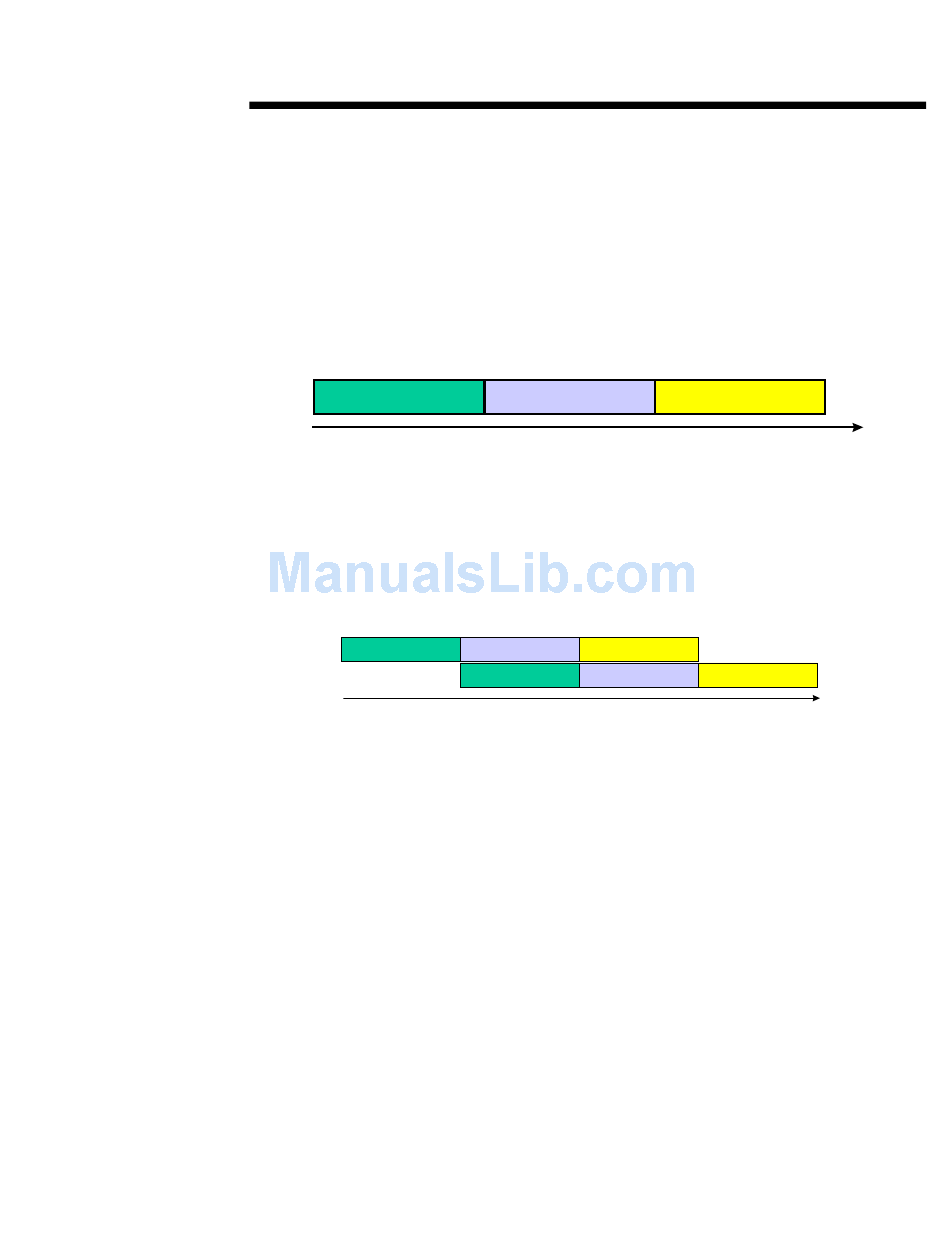

Figure 3. Because a DRAM memory cycle has three components, data is transferred only during about one
. .
. .
third of the cycle.
. .
. .
. . In some cases DRAM can transfer data faster. If two sequential cycles query addresses on the
. .
same DRAM page, then the address for the second cycle can be sent during data transfer of the
. .
. . first cycle (Figure 4). Once continuous data transfer is established on both memory buses as
. .
illustrated in Figure 4, it is possible to achieve a peak aggregate memory bandwidth of 1.07 GB/s.
. .
. .
. .
. .
Cycle 1: Bank A
CAS Precharge
. .
. .
Cycle 2: Bank B
. .
. .
. .
. .
Figure 4. Basic timeline for sequential reads from the same page of DRAM.
. .
. .
. .
While it is fairly common for a single processor to access consecutive memory locations,
. .
. .
consecutive cycles in SMP machines are rarely sent to nearby addresses. Individual processors
. .
typically run programs and access data from very different areas of system memory. Thus, if
. .
. .
processor 1 reads memory at one location and immediately thereafter processor 2 performs a read,
. .
it will usually be to a very different address. For this reason, most memory cycles in SMP
. .
. .
machines look like the one in Figure 3 and transfer data only about one third of the time, yielding
. .
a more typical memory bandwidth of 177.7 MB/s. This is true of all DRAMs and all SMP
. .
. .
machines; it is not unique to the new highly parallel architecture. By adding a second memory
. .
bus, the new architecture actually doubles typical consumption of the processor bandwidth in
. .
SMP machines:
. .
. .
. .
177.7 MB/s memory bandwidth x 2 buses = 355 MB/s
. .
. .
To take full advantage of the two memory buses, at least two memory requests must be issued at a
. .
time, one on each memory bus. SMP Pentium Pro processors can issue up to eight cycles at a
. .
. .
time, which increases the likelihood of having cycles run to both memory controllers. Because a
. .
single processor can issue up to four cycles, the dual memory controller can also boost the
. .
. .
performance of a single processor.
. .
. .
Memory may be added to either bus individually and the system will continue to operate correctly.
. .
. . For peak performance, however, equal amounts of memory should be added to both buses at the
. .
same time. Because memory is interleaved between the two memory channels by pairs of
. .
DIMMs, best performance results from using the maximum number of DIMMs for a given
. .
. .
