Install Transfer Switch and SACM Kit
(RBU Only)
1. See Figure 3-8. Remove screws (A) from bus bar
assembly and set aside.
2. Remove screws (B) from bus bar assembly and
remove assembly from sub panel.

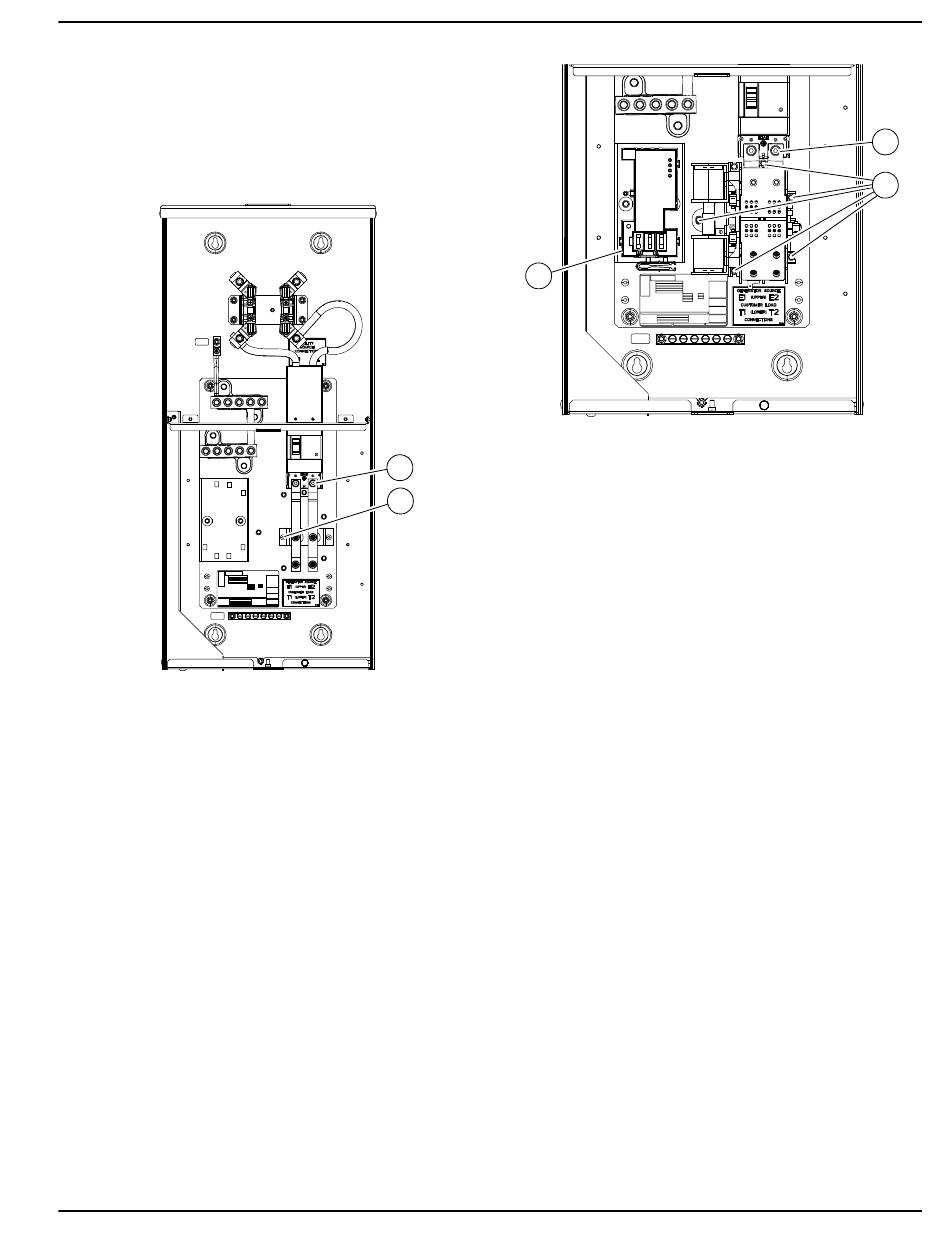

Figure 3-8. Remove Bus Bar Assembly
3. See Figure 3-9. Use provided M5 screws (C) to
install transfer switch assembly from kit G0074000.
4. Install screws (A) from step 1 and tighten to 72 in-
lbs onto circuit breaker.
5. Install SACM unit from kit G074000 into bracket
provided (D).
6. Plug harness with 8 pin connector into SACM unit
(D).
7. Follow RXUW instructions to connect SACM to
genset.
Automatic Transfer Switch Owner's Manual
D
A
B
010495
Figure 3-9. Install Kit G0074000
Installation
A
C
010496
15
