Installation
Connecting Power Source (RBU and
RXUW)
DANGER
Electrocution. Turn utility and emergency
power supplies to OFF before connecting
power source and load lines. Failure to do so
will result in death or serious injury.
Installation and interconnection diagrams are provided in
this manual.
NOTE: All installations must comply with national, state
and local codes. It is the responsibility of the installer to
perform an installation that will pass the final electrical
inspection.
1. Select the upper or one of the lower utility cable
entry points. Should the lower utility entry point
need the utility wire duct relocated to the opposite
side, do so now. The duct is designed to be
installed on either side.
2. See Figure 3-4. Connect utility supply at the Four
Jaw Meter Socket terminals N1 and N2. Follow
torque specifications listed on the circuit breaker.
Available utility entry points are the top, the bottom
left or the bottom right. The wire duct is reversible
for left or right wire entry applications as needed.
3. Connect utility neutral and ground to the Upper
Neutral and Ground terminals. Neutral and Ground
10
F
C
D
E

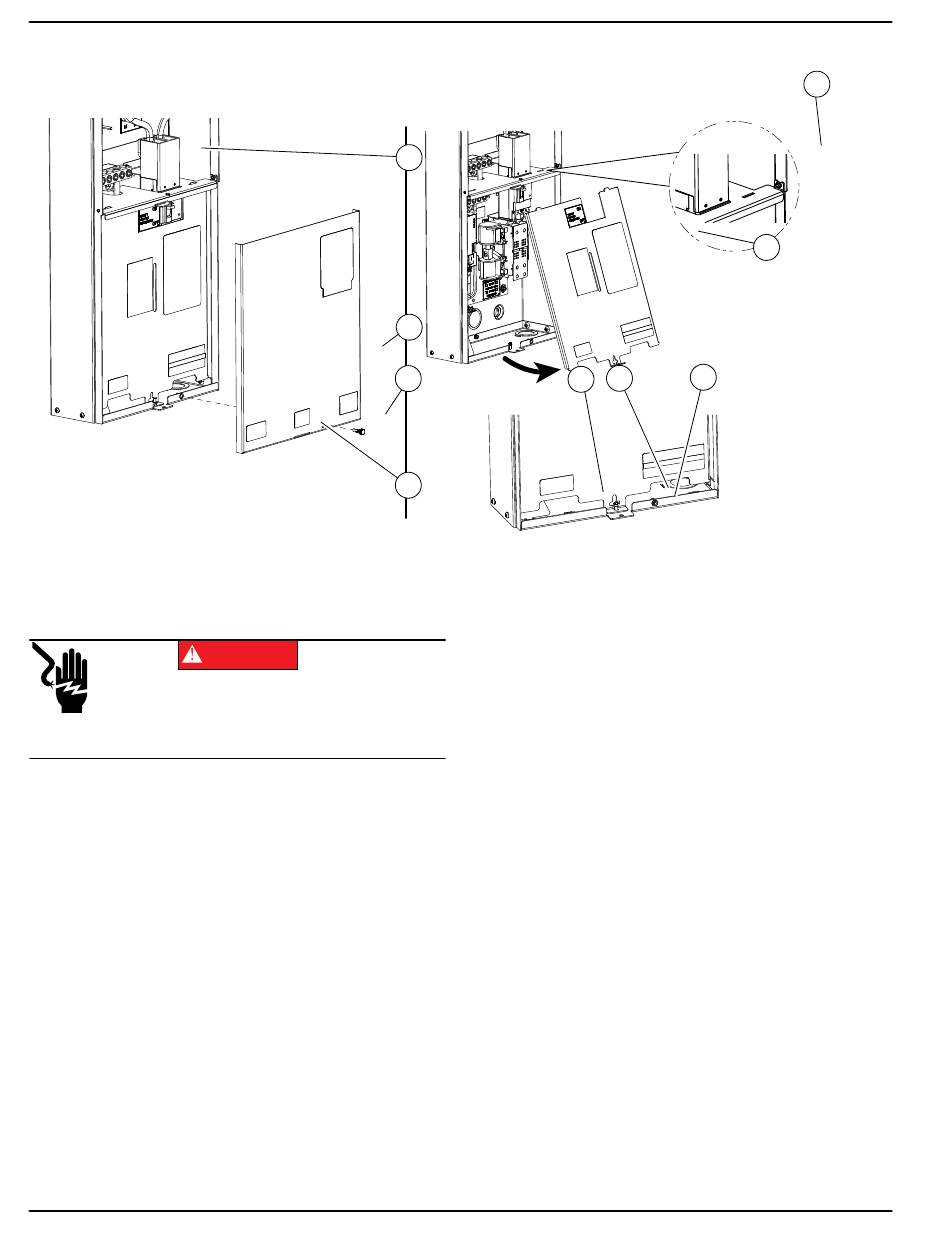

Figure 3-3. Remove Bottom Cover and Panel
(000116)
I
J
terminals are bonded to each other with a jumper
wire (A).
4. If applicable, connect Solar directly to Utility at S1
and S2 with Lugs provided on bus under circuit
breaker cover as local codes permit.
5. Utility authorized personnel may install the meter
into the meter socket. The Upper Utility Access
Panel may now be installed and "sealed" as
required by local utility.
NOTE: Neutral to Ground jumper wire (A) is
provided for use if required by local codes.
Automatic Transfer Switch Owner's Manual
K
G
H
