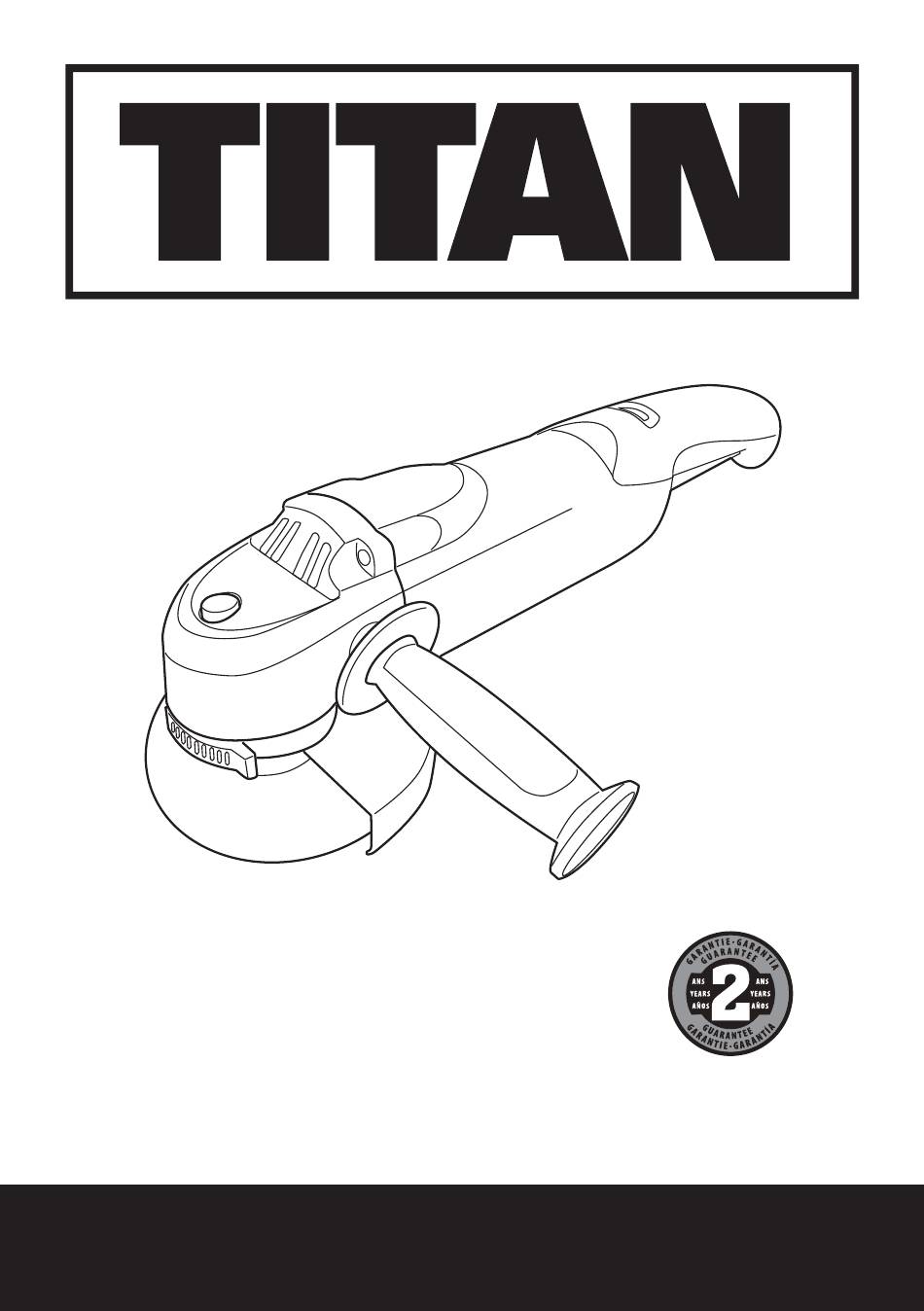

- Page 1 SAFETY AND OPERATING MANUAL Original instructions (V3.0) ANGLE GRINDER 1010W TTB602GRD...
- Page 2 Congratulations on your purchase of a power tool from Titan Power Tools (UK) Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
-
Page 3: General Safety Instructions
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. ANGLE GRINDER 1010W TTB602GRD... - Page 4 d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 5: Angle Grinder Safety Warnings
Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. ANGLE GRINDER 1010W TTB602GRD... - Page 6 k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory. l) Never lay the power tool down until the accessory has come to a complete stop.
- Page 7 9. When the disc is installed, run it for at least one minute to ensure that it does not have a fault. It is always advisable to stay out of the line of the disc when testing or in general in use. ANGLE GRINDER 1010W TTB602GRD...
- Page 8 10. Do not use a disc marked with a lower RPM than that of the no load speed shown on the rating plate. 11. Use discs only of the prescribed diameter. 12. Do not use the angle grinder for buffing or polishing under any circumstances. 13.
- Page 9 Please always work with approved safety equipment, such as those dust masks that specially designed to filter out microscopic particles and use the dust extraction facility at all time. For more information please see the HSE website: http://www.hse.gov.uk/construction or http://www.hse.gov.uk/pubns/cis69.pdf ANGLE GRINDER 1010W TTB602GRD...
- Page 10 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
- Page 11 Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. Wear ear protection Wear eye protection Wear dust mask Wear protective gloves Double insulation Conformity to CE directive yyWxx Manufacturing date code; year of manufacturing (20yy) and week of manufacturing (Wxx); ANGLE GRINDER 1010W TTB602GRD...
- Page 12 1 Spindle lock button 2 Variable speed dial 3 Double action on/off switch 4 Lock-off catch 5 Auxiliary handle 6 Cutting guard 7 Cutting disc 8 Guard release lever 9 Grinding guard 10 Spanner...
-
Page 13: Technical Data
A weighted sound pressure 89.5dB(A) / KpA: 3dB(A) A weighted sound power 100.5dB(A) / KwA: 3dB(A) Wear ear protection when sound pressure is over 80dB ACCESSORIES Auxiliary handle Spanner 125mm cutting guard 125mm grinding guard 125mm metal cutting disc ANGLE GRINDER 1010W TTB602GRD... -
Page 14: Intended Use
OPERATIONS INSTRUCTIONS Note: Before using the tool, read the instruction book carefully. INTENDED USE This angle grinder shall be used for grinding or cutting metal or stones or similar materials. Other uses for the tool will lead to the damage of the tool and a series of dangers to the operator. - Page 15 Number on Working method Working materials Fig. 7 speed dial Grinding Steel black Corrosion-proof steel Non-ferrous materials Cutting Concrete/ Stone Precast concrete block Brick Non-ferrous materials Others synthetic materials Fig. 8 (PVC, PC and so on) ANGLE GRINDER 1010W TTB602GRD...
-
Page 16: Working Hints For Your Angle Grinder
NOTE! Please always determine the optimum speed by making a trial cut in a scrap piece of material. For concrete/ stone/ brick, the maximum cutting height shall not higher than 30mm for single cut to avoid overload. Warning! Ensure that you use the correct setting for the maximum rated speed of the disc used. -
Page 17: Maintenance
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recyclemore.co.uk ANGLE GRINDER 1010W TTB602GRD... - Page 18 UK PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. Check the voltage given on your power tool matches the supply voltage. The power tool is supplied with a fitted plug, however if you should need to fit a new plug follows the instruction below.
- Page 19 EN 55014-2:1997+A1: 2001+A2: 2008 EN 61000-3-2: 2006+A1:2009+A2:2009 EN 61000-3-3: 2013 Authorised signatory and technical file holder Date: 09/07/2014 Signature:________________ Name / title: Peter Harries / Quality Manager Titan Power Tools (UK) Ltd. Trade House, Mead Avenue, BA22 8RT ANGLE GRINDER 1010W TTB282GRD...
