Summary of Contents for Titan TTB879GRD
-
Page 2: Table Of Contents
Let’s get started … These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started Safety information ....................3 Your product......................16 Before you start ..................... 21 In more detail Product functions .................... -
Page 3: Safety Information
TTB879GRD by TITAN Safety information Safety warnings General power tool safety warnings WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. - Page 4 TTB879GRD by TITAN When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
- Page 5 TTB879GRD by TITAN 4) Power tool use and care Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Page 6 TTB879GRD by TITAN Angle grinder safety warnings Safety warnings common for grinding and abrasive cutting-off operations: This power tool is intended to function as a grinder or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
- Page 7 TTB879GRD by TITAN Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations.
- Page 8 TTB879GRD by TITAN Further safety instructions for all operations Kickback causes and related warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the...
- Page 9 TTB879GRD by TITAN Additional safety instructions for grinding and cutting-off operations Safety Warnings Specific for Grinding and Cutting-Off Operations: Use only wheel types that are specified for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
- Page 10 TTB879GRD by TITAN the possible kickback may propel the spinning wheel and the power tool directly at you. c) When the wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold it motionless until the wheel comes to a complete stop.
- Page 11 TTB879GRD by TITAN the selection of abrasives, the user shall request information from the manufacturer or supplier. Visual inspection and ring test Abrasives shall be subjected to a visual inspection as received before mounting. In addition, a ring test shall be executed for abrasives with diameter > 80 mm.
- Page 12 TTB879GRD by TITAN To protect the lung, the COSHH Regulations sets a limit on the amount of these dusts that you can breathe (called a Workplace Exposure Limit or WEL) when averaged over a normal working day. These limits are not a large amount of dust: when compared to a penny it is tiny –...
- Page 13 TTB879GRD by TITAN SEE TECHNICAL SPECIFICATIONS IN THE INSTRUCTION MANUAL FOR THE VIBRATION LEVELS OF YOUR TOOL. The declared vibration emission value should be used as a minimum level and should be used with the current guidance on vibration. Calculating the...
- Page 14 TTB879GRD by TITAN WARNING! Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
- Page 15 TTB879GRD by TITAN Prolonged use of the product exposes the user to vibrations that can cause a range of conditions collectively known as hand-arm vibration syndrome (HAVS) e.g. fingers going white; as well as specific diseases such as carpal tunnel syndrome. To reduce this risk when using the product, always wear protective gloves and keep your hands warm.
-
Page 16: Your Product

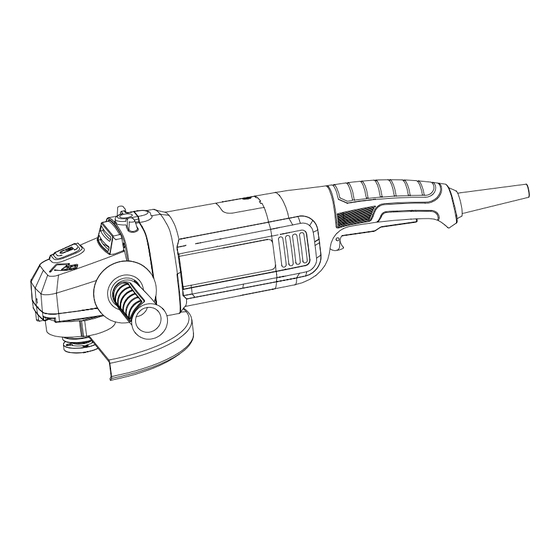

TTB879GRD by TITAN Your product Your product 1. Spindle lock button 10. Locking flange 2. Mounting thread 11. Backing flange 3. Foot 12. Spindle 4. Air vents 13. Cutting guard 5. Main handle a. Clamp lever 6. Power cord with plug 14. - Page 17 TTB879GRD by TITAN Technical specification Technical specifications General > Rated voltage, frequency 220- 240 V~, 50 Hz > Rated input power 2000 W > Rated no load speed n 6500 min > Rated capacity Ø 230 mm > Spindle thread size >...
- Page 18 TTB879GRD by TITAN WARNING! The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed; and need to identify safety measures to protect the operator that are...
- Page 19 TTB879GRD by TITAN Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt, (alternating voltage) Hz...
- Page 20 TTB879GRD by TITAN Always operate with two hands. Do not use the grinding guard for cutting-off operations. Not permitted for wet grinding - Abrasive product only suitable for dry grinding. This product is of protection class II. That means it is equipped with enhanced or double insulation.
-
Page 21: Before You Start
TTB879GRD by TITAN Before you start Unpacking Unpack all parts and lay them on a flat, stable surface. Remove all packing materials and shipping devices if applicable. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. - Page 22 TTB879GRD by TITAN Setup WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to easily assemble the product!
- Page 23 TTB879GRD by TITAN Fig. 4, cutting guard (13) Fig. 5, grinding guard (14) Attaching 1. Open the clamp lever (14a) on the guard. 2. Align the noses on the ring to the notches on the spindle collar, and then rotate the guard (Figs.
- Page 24 TTB879GRD by TITAN NOTE: If the lever cannot be clamped, slightly loosen the nut. If the lever can be clamped without resistance, tighten the nut. Adjusting WARNING! Adjust the guard position according to the intended operation! The closed side of the guard must always point to the user! 1.
- Page 25 TTB879GRD by TITAN WARNING! Always use the correct wheel according to the intended use! For example, never use a wheel intended for grinding for cutting-off applications or vice versa! Observe the technical requirements of this product (see section Technical specifications) when purchasing and using cutting / grinding...
- Page 26 TTB879GRD by TITAN Fig. 11 Fig. 12 3. Remove the locking flange (10) from the spindle (12). 4. Holding the product with spindle facing upwards, fit the backing flange (11) onto the spindle and ensure it is correctly located. The two machined flat sections must face the product and locate in the appropriate position on the spindle (12).
- Page 27 TTB879GRD by TITAN Fig. 14 Fig. 15 Fig. 16 7. Press the spindle lock button and tighten the locking flange (10) clockwise with the spanner (15). Grinding / cutting wheels WARNING! Ensure the wheel is properly fastened but do not use force...
- Page 28 TTB879GRD by TITAN Connection to power supply 1. Make sure the on/off switch is in its off position. 2. Connect the plug with a suitable socket. WARNING! Check the voltage! The voltage must comply with the information on the rating label!
-
Page 29: In More Detail
TTB879GRD by TITAN more detail… Product functions ....................30 Operation ......................31 Care and maintenance ..................34 Troubleshooting ....................37 Recycling and disposal ..................38 Guarantee ......................39 Declaration of conformity ................. 40... -
Page 30: Product Functions
Product functions TTB879GRD by TITAN Intended use This angle grinder TITAN TTB879GRD is designated with a rated input of 2000 Watts. This product is intended for grinding and cutting-off applications with bonded abrasive wheels on metal, stone or similar materials. -
Page 31: Operation
TTB879GRD by TITAN Operation General operation 1. Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. 2. Double check that the accessories and attachments are properly fixed. - Page 32 TTB879GRD by TITAN Grinding WARNING! During operation fine dust will be generated! Some dusts are highly inflammable and explosive! Do not smoke during operation, keep heat sources and open flames out of the working area! Always wear a dust mask to protect yourself against hazards resulting...
- Page 33 TTB879GRD by TITAN Cutting 1. Do not overwork the cutting wheel by applying too much load on the product. 2. Hold the product so that the cutting wheel is at a 90° angle to the workpiece (Fig. 20). 3. Ensure that the wheel is kept aligned with the cut, twisting the product may cause the wheel to shatter.
-
Page 34: Care And Maintenance
Care and maintenance TTB879GRD by TITAN The golden rules for care WARNING! Always switch the product off, disconnect the product from the power supply and let it cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage. - Page 35 TTB879GRD by TITAN Maintenance Before and after each use, check the product and accessories (or attachments) for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements. Power cord If the supply cord is damaged, it must be replaced by a specially prepared cord available through the service organization.
- Page 36 TTB879GRD by TITAN NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket. Repair This product does not contain any parts that can be repaired by the consumer.
-
Page 37: Troubleshooting
TTB879GRD by TITAN Troubleshooting Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these... -
Page 38: Recycling And Disposal
Recycling and disposal TTB879GRD by TITAN Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. For further information visit www.recycle-more.co.uk. -
Page 39: Guarantee
TTB879GRD by TITAN Guarantee Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product ( 2000W Angle Grinder) has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in at no additional cost. -
Page 40: Declaration Of Conformity
Declaration of conformity TTB879GRD by TITAN Declaration of conformity (EN) EU DECLARATION OF CONFORMITY (FR) DÉCLARATION UE DE CONFORMITÉ (PL) DEKLARACJA ZGODNOŚCI UE (RO) DECLARAȚIA DE CONFORMITATE UE (ES) DECLARACIÓN UE DE CONFORMIDAD (PT) DECLARAÇÃO DE CONFORMIDADE UE Product/ Produit/ Produkt/Produsul/Producto/Produto Angle Grinder/Meuleuse d’angle/Szlifierka kątowa/Polizor unghiular/Amoladora Angular/Afiadora Angular... - Page 41 TTB879GRD by TITAN 2014/30 / UE ze zmianami Dyrektywa Kompatybilność elektromagnetyczna 2011/65 / UE ze zmianami Dyrektywa Ograniczenie stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym 2006/42/CE, astfel a fost modificată Directiva privind echipamentele 2014/30/UE, astfel a fost modificată Directiva privind compatibilitatea electromagnetică...
- Page 42 Declaration of conformity TTB879GRD by TITAN Declaration of conformity (UK) DECLARATION OF CONFORMITY Product Angle Grinder TTB879GRD Type / batch or serial number range 00000 to 999999 Name and address of the manufacturer or his authorised representative:...
- Page 43 Manufacturer,Fabricant,Producent,Producător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square, London, W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.screwfix.com To view instruction manuals online, visit www.screwfix.ie www.kingfisher.com/products www.bricodepot.fr Pour consulter les manuels d’instructions en ligne, rendez-vous sur le site www.kingfisher.com/products www.bricodepot.es...
