400W Bench Grinder
TTB521GRB
Barcode: 5052931248193
WARNING! Read the instructions before using the product!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTB521GRB and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan TTB521GRB

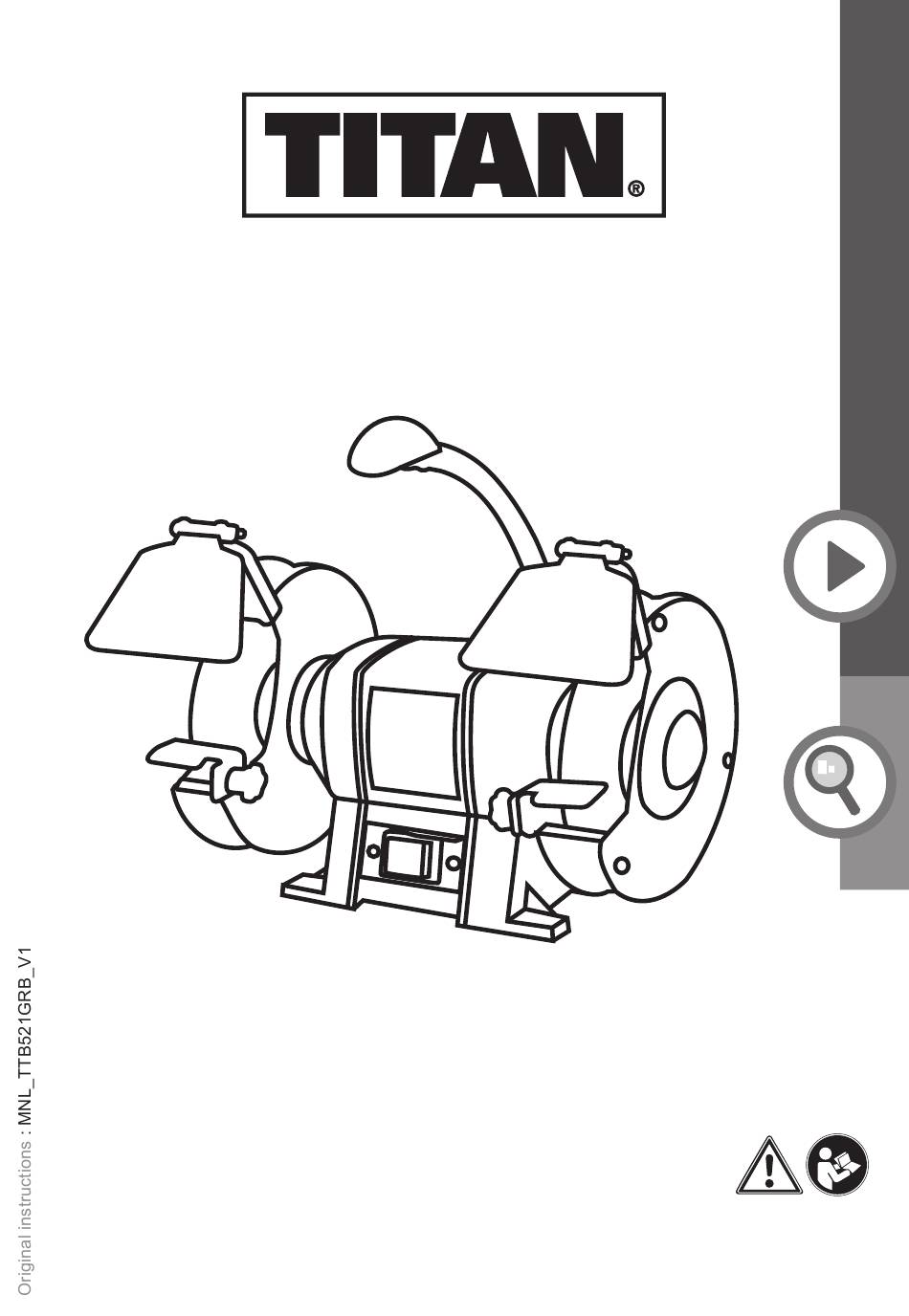

  • Page 1 400W Bench Grinder TTB521GRB Barcode: 5052931248193 WARNING! Read the instructions before using the product!
  • Page 2: Table Of Contents

    GUARANTEE Your product This TITAN product carries a 2 year guarantee. If your product develops a fault within this Technical and legal information period, you should, in the first instance contact the retailer where the item was purchased. Before you start...
  • Page 3: Your Product

    Technical and legal Your product TTB521GRB by TITAN TTB521GRB by TITAN information Your product Technical data >Voltage :230V-240V ~50Hz >Rated input :400 W, S2:30min :2950min - >Idling speed of grinding disc >Protection glass >Degree of protection : IP20 >Dimensions grinding disc :Ø200x20xØ16mm...
  • Page 4: Technical And Legal Information

    Technical and legal Technical and legal TTB521GRB by TITAN TTB521GRB by TITAN information information Symbols General safety Warning! Denotes risk of personal injury, loss of life, or damage to the tool in case of non-observance Wear ear protection. WARNING: When using electric tools basic safety precautions should always be followed to reduce the risk Wear eye protection.
  • Page 5 Technical and legal Technical and legal TTB521GRB by TITAN TTB521GRB by TITAN information information General safety Additional safety 11 Do not abuse the cord > Never drape the power cable over the machine bench. > Never yank the cord to disconnect it from the socket.
  • Page 6 Technical and legal Before you start TTB521GRB by TITAN TTB521GRB by TITAN information Unpack Additional safety > Do not use any tool attachments that require liquid coolants. Use of water or other > Unpack all parts and lay them on a flat, stable surface.
  • Page 7: Before You Start

    Before you start Before you start TTB521GRB by TITAN TTB521GRB by TITAN Install the spark guard Mounting the bench grinder > To fit the eye shields locate the nut, screw and washers provided through > The machine is to be assembled firmly on a suitable place. Four holes are the slot in the eye shield and hole on the grinding wheel guard and finger available to fix on a firm and solid base e.g.
  • Page 8: In More Detail

    Operation TTB521GRB by TITAN TTB521GRB by TITAN Grinding workpiece Place the workpiece on the tool rest. Make sure that the workpiece touch the front wheel without pressing too hard. Use the side of the wheel under any circumstances. Do not worry about the large number of sparks emitted during grinding Wear more detail...
  • Page 9: Operation

    Operation Care and maintenance TTB521GRB by TITAN TTB521GRB by TITAN General cleaning General operation 1. Clean the product with a dry cloth. Use a brush for areas that are hard to reach. 1. After switching the grinder on, allow it to reach full speed before performing 2.
  • Page 10: Care And Maintenance

    Care and maintenance Care and maintenance TTB521GRB by TITAN TTB521GRB by TITAN The number shown in the above illustration is an example of a grinding wheel description. 9A means that the abrasive is aluminum oxide46 means that the GRINDING WHEEL INFORMATION grain size is medium, K means that the wheel is soft, 5 means that the wheel is dense, V stands for vitrified bonding and 22 is the manufacturer’s symbol.
  • Page 11: Trouble Shooting

    Care and maintenance Trouble shooting TTB521GRB by TITAN TTB521GRB by TITAN Trouble shooting Power cord If the power cord is damaged, it must be replaced by the manufacturer, its Suspected malfunctions are often due to causes that the user can fix service agent or similarly qualified persons in order to avoid a safety hazard.
  • Page 12: Ec Declaration Of Conformity

    Standards and technical specifications referred to: EN61029-1/A11:2010 EN61029-2-4:2011 EN55014-1/A2:2011 EN55014-2/A2:2008 EN61000-3-2/A2:2009 EN61000-3-3:2008 Authorised Signatory and technical file holder Date : 05/09/2013 Signature:_________________ 2013 Name / title: Peter Harries / Quality Manager Titan Power Tools (UK) Ltd. Trade House, Mead Avenue, BA22 8RT...
  • Page 13 Powersmith (UK) LTD. GB-IE Trade House Mead Avenue, BA22 8RT...
