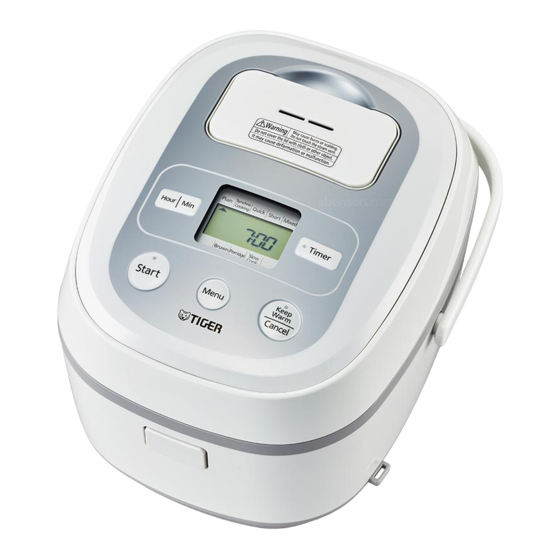

- Page 1 JBX-B JBX-B10F For household use JBX-B18F Rice Cooker / Warmer OPERATING INSTRUCTIONS Thank you for purchasing this TIGER rice cooker/warmer. Please read these instructions carefully before use and observe them during use.
-
Page 2: Table Of Contents
IMPORTANT SAFEGUARDS Contents 1 Important Safeguards ....................4 When using the appliance, basic safety precautions should always be followed including the 2 Names and Functions of Component Parts ............. 9 following: Menu options and features ..................11 Tips on making delicious rice .................. 12 1. -
Page 3: Important Safeguards
Important Safeguards Read and follow all safety instructions before using the rice cooker. WARNING • The WARNINGS and CAUTIONS described below are intended to protect the user and other individuals from physical and property damage. To ensure safety, please follow them carefully. •... - Page 4 Important Safeguards CAUTION WARNING Stop using the rice cooker Do not use the rice cooker on a Do not touch high-temperature Do not wash the entire rice cooker. immediately in case of any sliding tabletop that does not have surfaces during or immediately after Do not wash the main body or pour malfunction or failure.
-
Page 5: Names And Functions Of Component Parts
Names and Functions of Component Parts Important Safeguards „ Follow the safety instructions ● Strictly observe the following instructions to Steam vent in order to use your rice cooker keep the fluorocarbon resin coating of the inner Steam cap safely for many years. pot from becoming scratched, deformed, or peeling. -
Page 6: Menu Options And Features
Names and Functions of Component Parts Menu options and features Operation panel Keep Timer Warm Display Menu function Feature function Displays the symbol (menu availability availability cursor) and the current time, etc. Plain Cooks white rice (long-grain rice). Synchro-Cooking –... -
Page 7: Tips On Making Delicious Rice
Read P.14 to15 for preparations before cooking rice and P.16 to 20 for Tips on making delicious rice how to cook rice. Select quality rice and a good storage • Add water prior to adding the ingredients. Cooking semi-polished rice, whole rice, Cooking short-grain rice Adding water after the ingredients results in the location. -
Page 8: Before Cooking Rice
Before Cooking Rice Measure the rice. Adjust the water level. Connect the power cord. Caution Be sure to use the supplied measuring cup. Place the inner pot on a level surface and ● Be sure to remove any cooked rice or grains Filling the supplied measuring cup until it is adjust the water level to the appropriate line of rice on and around the heater plate, center... -
Page 9: How To Cook Rice
How to Cook Rice Cooking time guidelines Press the [Menu] key to move Press the [Start] key. to the desired menu. The Start lamp lights up. Cooking starts. Each time the [Menu] key is pressed, the Menu The rice cooker makes one short and one Plain Synchro-Cooking Quick... -
Page 10: Once Rice Is Finished Cooking
Once Rice Is Finished Cooking Using the Timer Function Once the final steaming process Stir and loosen the cooked rice. Press the [Menu] key to select begins, the remaining time is Stir and loosen the rice as soon as cooking is the desired menu. -
Page 11: Keeping Rice Warm
Keeping Rice Warm Using the Timer Function Press the [Timer] key. Use the [Hour] and [Min] keys to The taste and gloss of white rice (rinse-free rice) „ Elapsed Keep Warm time display can be maintained. The Timer lamp blinks. set the desired completion time. -
Page 12: Cooking Rice And Side Dishes Together
Cooking Rice and Side Dishes Together You can use the cooking plate to cook side dishes Prepare ingredients and place Connect the power cord. To enjoy various concurrent cookings described in the supplied COOKBOOK at the same them in the cooking plate. time as you cook rice. -
Page 13: Slow Cooking
Slow Cooking Cooking Rice and Side Dishes Together Press the [Start] key. Remove the cooking plate and You can prepare soup and simmered dishes with ease. Connect the power cord. See the supplied COOKBOOK for directions. The Start lamp lights up and concurrent stir and loosen the rice. -
Page 14: Steaming Food
Steaming Food Slow Cooking You can also perform steam cooking by adding Press the [Start] key. Use the [Menu] key to select the Note water to the inner pot without making rice. “Slow Cook” menu. The Start lamp lights up and cooking starts. ●... - Page 15 Steaming Food Remove the cooking plate. „ Guidelines for steaming times Note Ingredients Amount Approx. time Tips for steaming ● Do not open the lid during cooking. Doing so may prevent the food from cooking properly. Make a few small slits in the surface Chicken 1 fillet (200 to 300 g) 25 to 30 min...
-
Page 16: Cleaning And Maintenance
Cleaning and Maintenance Any other servicing should be performed by an authorized service representative. The steam cap can be rinsed. (1) Clean with a soft sponge and with tap or lukewarm To maintain cleanliness, be sure to clean the rice cooker on the same day it is used. water. - Page 17 Cleaning and Maintenance Removing and attaching the steam cap Power cord Wipe it using a dry cloth. Note „ Removing the steam cap ● Do not immerse the power cord in or splash it with (1) Insert your fingers into the indentation in (3) Lift and remove the cap unit from the cap lid.
-
Page 18: If Rice Does Not Cook Properly
If Rice Does Not Cook Properly Cleaning and Maintenance Cleaning the heater plate Check the following if you experience a problem with the cooked rice or with the operation of the rice cooker, etc. Check point Water drops may fall from the lid during cooking and cause the surface of the heater plate to become dirty. This does not affect the performance of the rice cooker, however, you can clean the heater plate according to the following procedure if necessary. -
Page 19: If Synchro-Cooking Does Not Work As Expected
If Synchro-Cooking Does Not Work As Expected If Rice Does Not Cook Properly Check the following when you experience a problem with food cooked concurrently using the cooking plate. Problem Cause There is a thin film covering A thin, tissue-like film is formed by melted and dried starch. This is not harmful to your Check point the rice. -
Page 20: If Food Is Not Cooked Or Steamed As Expected
If Food Is Not Cooked or Steamed as Expected Troubleshooting Check the following if you experience a problem with the cooked food. Check the following before requesting repairs. Check point Reference Symptom Check point Action page The rice is not cooked at all. Is the appliance plug properly Be sure to connect the appliance The food is not cooked at all. -
Page 21: Troubleshooting
Troubleshooting Setting the current time Reference Symptom Check point Action page Condensation collects in the upper Condensation may collect in the upper casing immediately after rice is The current time is displayed in a 24-hour format. The rice cooker has a built-in lithium battery, and it can casing. -
Page 22: Specifications
Specifications Unit size 1.0 L (5.5-cup) type 1.8 L (10-cup) type Power source 220-230V 60 Hz Rated power (W) 564-616 785-857 Plain 0.18 to 1.0 (1 to 5.5 cups) 0.36 to 1.8 (2 to 10 cups) Synchro-Cooking 0.18 to 0.36 (1 to 2 cups) 0.36 to 0.72 (2 to 4 cups) Quick 0.18 to 1.0 (1 to 5.5 cups) - Page 23 TIGER CORPORATION Head Office: 3-1 Hayami-cho, Kadoma City, Osaka 571-8571, Japan...
