- Page 1 MAN02-A Hand Held Digital Manometer Users Manual MAN02A_Rev001 © 2009 Amprobe Test Tools. All rights reserved. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Limited Warranty and Limitation of Liability Your Amprobe product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.

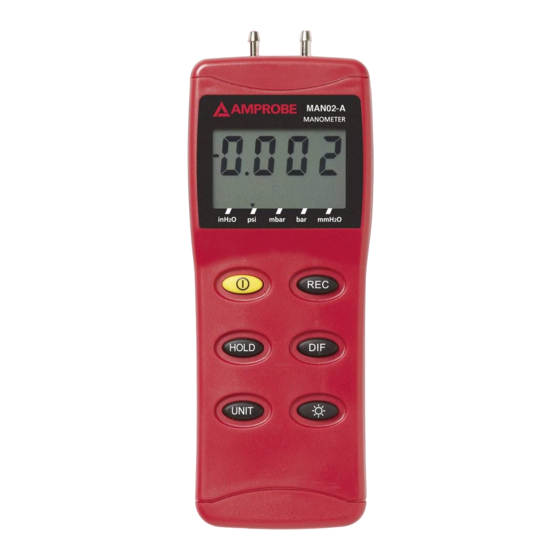

- Page 3 MANOMETER HOLD DIF DATALOGGER MAX MIN BAT inH O psi mbar mmH2O ➊ oN/off pushbutton ➋ Record pushbutton ➌ Data Hold pushbutton ➍ Differential pushbutton ➎ Unit Selector pushbutton ➏ backlight pushbutton ➊ primary data screen displays pressure value ➋ “-”...
-
Page 4: Table Of Contents
MAN02-A Digital Manometer CoNtENtS introduction ............................5 features ...............................5 Standard Accessories ...........................5 optional Accessory ..........................5 quick Start ............................5 Auto power off ...........................6 operation Mode ..........................6 Calibration Mode ..........................6 Calibration point reference ......................7 Manual Zero Setting ...........................7 Troubleshooting ..........................7 Replacing The battery ........................8 USb pC interface capabilities ......................8 Download Suite Software installation ..................9 operation ............................9... -
Page 5: Introduction
Congratulations on your purchase of the Amprobe MAN02-A manometer. This instrument is a portable, battery operated pressure measuring device. The MAN02-A is ideal for HVAC/R technicians measuring pressure level, Medical equipment, Computer peripherals, pneumatic controls. INtRoDUCtIoN • The meter will display all lCD segments when it is first turned on for approx. 3 seconds. -
Page 6: Auto Power Off
The instrument records only the Max and the Min values for each session. To record all values for a recording session, use the Download Suite Software. press and hold for 3 seconds to turn clock feature off. Note: Clock feature available with gauge pressure only, not differential. The instrument will automatically switch off after 20 minutes unless sleep mode is disabled. -
Page 7: Calibration Point Reference
first, manually set the display to zero (no pressure applied to the connector ), refer to the manual zero procedure. Turn the meter off. press � & simultaneously, “CA” appears on the display, (See fig. 9 ) the meter enters to the calibration mode, make sure the units setting on “pSI”... -
Page 8: Replacing The Battery
No Display. • Make sure the battery is functional. • check if sleep mode is active. Refer to disable sleep mode on page.6 to turn it off. • check if the tubing is connected to the meter tightly. Err.1. for the pressure value exceeding the maximum range, “ Err.1” appears on the display (See fig. 14). -
Page 9: Download Suite Software Installation
Download Suite Software installation insert the Download Suite CD into the CD-RoM drive. To install the software, follow the on-screen instructions. operation To open the program, double-click the Download Suite icon. To transfer data to a pC, follow the on-screen instructions. MAINtENANCE The meter is calibrated in house before shipping. - Page 10 H/M/S fig. 3 fig. 1 fig. 2 fig. 6 fig. 4 fig. 5 fig. 9 fig. 7 fig. 8 fig. 12 fig. 10 fig. 11 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 11 fig. 15 fig. 13 fig. 14 fig. 16 fig. 17 MANOMETER HOLD DIF DATALOGGER MAX MIN BAT inH O psi mbar mmH2O fig. 18 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
