Install or Remove a Transceiver

Hot swapping transceivers is supported. You can install or remove a trans-
ceiver with the switch powered on, a reset will not occur.
a. Slide the transceiver in until it stops.

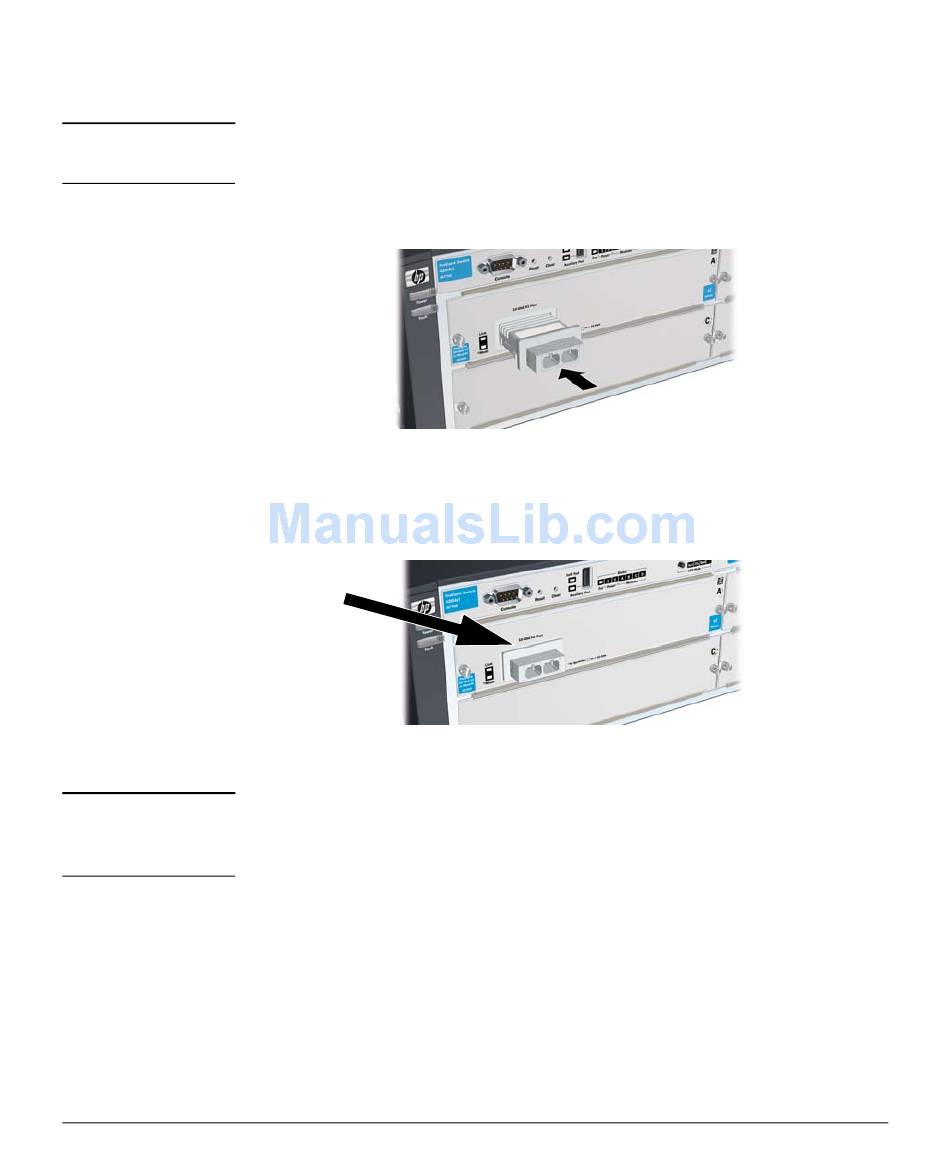

Figure 7. Installing an X2 transceiver
b. Push firmly until the gasket seats against the bulkhead. The transceiver
should "click" into place.
Figure 8. X2 transceiver fully installed
If the switch is powered on when the transceiver is installed, the Link and
Mode LEDs will come on for approximately two seconds and then go off. This
is confirmation the transceiver is completely seated.
c. If your transceiver has a bail, move the bail up, if not your transceiver is
now completely installed.
Refer to page 30 for more transceiver details.

To remove the transceiver:

If your transceiver has a bail, lower the bail until it is approximately horizontal,
and then using the bail, pull the transceiver from the slot. If your transceiver
does not have a bail, pull the transceiver straight out.
