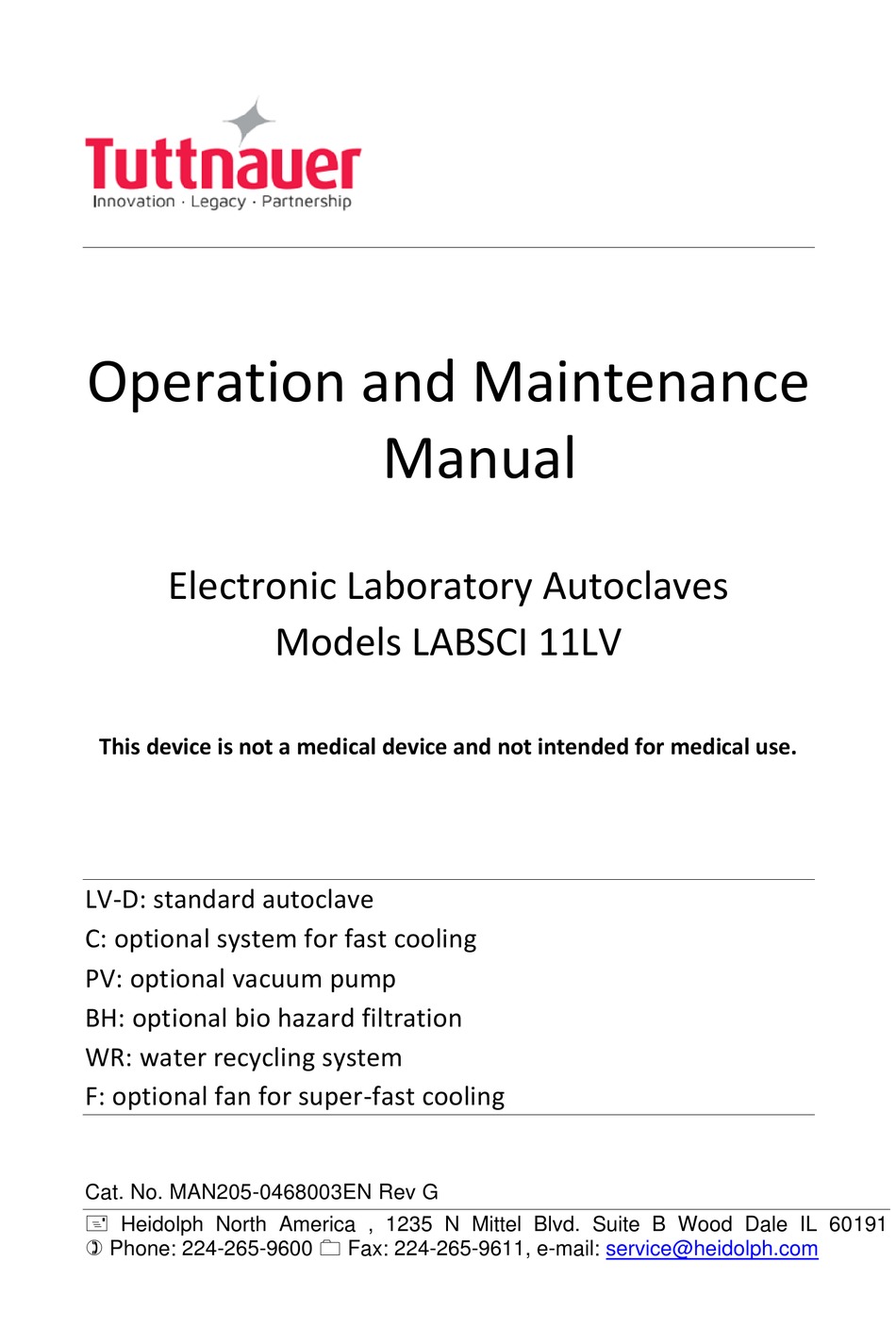

Operation and Maintenance
Manual
Electronic Laboratory Autoclaves
Models LABSCI 11LV
This device is not a medical device and not intended for medical use.
LV-D: standard autoclave
C: optional system for fast cooling
PV: optional vacuum pump
BH: optional bio hazard filtration
WR: water recycling system
F: optional fan for super-fast cooling
Cat. No. MAN205-0468003EN Rev G
 Heidolph North America , 1235 N Mittel Blvd. Suite B Wood Dale IL 60191
 Phone: 224-265-9600  Fax: 224-265-9611, e-mail:
service@heidolph.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LABSCI 11LV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tuttnauer LABSCI 11LV

Summary of Contents for Tuttnauer LABSCI 11LV

  • Page 1 Operation and Maintenance Manual Electronic Laboratory Autoclaves Models LABSCI 11LV This device is not a medical device and not intended for medical use. LV-D: standard autoclave C: optional system for fast cooling PV: optional vacuum pump BH: optional bio hazard filtration...

  • Page 2: Table Of Contents

    Table of Contents Paragraph page no. 1. GENERAL INFORMATION Available optional configurations ............... 5 Incoming Inspection ..................6 Warranty ...................... 6 Warranty Statement ..................7 Safety Instructions ....................8 Technical Data ....................10 Operating Conditions ................. 10 Directives and Standards ................11 Ordering Information ................
  • Page 3 Program 7: Bio Hazard 1 (BH, bio-hazard models only) ......41 Program 8: Bio Hazard 2 (BH, bio-hazard models only) ......42 Program 9: Bio Hazard Liquids (BH, bio-hazard models only) ....43 5.10 Program 10: Vacuum Test (PV, pre-vacuum models only) ...... 44 5.11 Program 11: Warm-Up ................
  • Page 4 10.11 Loading and Unloading the Device ............84 Service and Maintenance ................... 86 11.1 Preventive Maintenance ................86 11.2 Checking the Safety Valve ................. 87 Troubleshooting ....................90 Baskets and Containers ..................95 Spare Parts List ....................95 Accessories ......................96 Page 3...

  • Page 5: General Information

    This device is not a medical device and not intended for medical use. LABSCI 11LV is a vertical sterilizer designed especially for sterilization of instruments, liquids and other materials in hospital laboratories, laboratories & research institutes, food laboratories and pharmaceutical facilities.

  • Page 6: Available Optional Configurations

    After reading this manual, operating the autoclave should be straight forward. However, since the autoclave is built using high technology sensitive components, no attempt should be made by the user or any other unauthorized person to repair or re-calibrate it. Only technical personnel having proper qualifications, holding technical documentation and adequate test instrumentation, are authorized to undertake repair or service.

  • Page 7: Incoming Inspection

    All Tuttnauer products are carefully inspected prior to shipment and all reasonable precautions are taken in preparing them for shipment to assure safe arrival at their destination.

  • Page 8: Warranty Statement

    Troubleshooting, Service incidents, Warranty repair, Repair, Services and Return authorization : 224-265-9600 Fax: 224-265-9611 e-mail: service@heidolph.com  Tuttnauer USA Co., Ltd., 25 Power Drive Hauppauge, NY 11788, USA : (800) 624 5836, (631) 737 4850, Fax: (631) 737 0720 e-mail:info@tuttnauerUSA.com. Note: If there is any difficulty with this instrument, and the solution is not covered in this manual, contact our representative or us first.

  • Page 9: Safety Instructions

    2. Safety Instructions The autoclave has unique characteristics. Please read and understand the operation instructions before first operation of the autoclave. The following issues may require instructions guidance provided by the manufacturer: how to operate the autoclave, the door safety mechanism, the dangers involved in circumventing safety means, how to ensure that the door is closed, and how to select a correct sterilization program.
  • Page 10 Individual glass bottles may be placed within an appropriate container that will be placed in a basket. Never place glass bottles on the floor of the autoclave. Never fill more than 2/3 of the bottle volume. On closing the autoclave's door, make sure it is properly locked before activating.

  • Page 11: Technical Data

    3. Technical Data 3.1 Operating Conditions  The autoclave is intended to work in ‘indoor’ conditions only.  Only autoclavable materials shall be used.  The environment shall not exceed an ambient temperature range of 5ºC (41ºF)-40ºC (104ºF) and a relative humidity of 85% respectively. ...

  • Page 12: Directives And Standards

    3.2 Directives and Standards Every autoclave meets the provisions of the following Directives and is in compliance with the following Standards: ISO 9001: Quality Management System ISO 14001: Environmental Management System ISO 17025: General requirements for the competence of testing and calibration autoclaves ASME Code Section I and section VIII.

  • Page 13: Environment Emission Information

    The baskets are made of stainless-steel wire and have a handle. The basket allows the operator to load a large quantity of materials into the chamber. • Stainless steel containers - Different size containers are available for these units. The containers are designed for sterilizing waste material. The containers have vent holes along the upper rim.
  • Page 14 Rest of heavy metals ≤ 0.1 mg/l ≤ 0.1 mg/l except iron, cadmium, lead ≤ 2 mg/l ≤ 0.1 mg/l Chloride (Cl) ≤ 0.5 mg/l ≤ 0.1 mg/l Phosphate Conductivity (at ≤ 3 µs/cm 15 µs/cm 20°C) pH value 5 to 7.5 5 to 7 ≤...

  • Page 15: Specification

    3.8 Specification Property Value Height 980mm Overall dimensions Width 540mm Length 450mm Maximum dimensions Height 1300mm (door open) Height 1047mm Overall dimensions Width 540mm (WR configuration) Length 434mm Maximum dimensions Height 1376 (door open) Net weight 101kg. Shipping volume 0.56 m3 Shipping weight 115 kg length...

  • Page 16: Construction

    3.9 Construction Chamber and door material Stainless steel Outer Cabinet Stainless Steel Chamber insulation Fiberglass with reinforced material 3.10 Utilities Power 1 Ph, 230V/50/60Hz Power Supply Recommended Circuit Breaker Compressed Air (LVC only) 1/2" 3 Bar (44-58 psi) Tap water 1/2", 2-6 Bar (29-44 psi) Mineral free water 1/2", 2-3 Bar (29-44 psi)

  • Page 17: Symbol Description

    3.11 Symbol Description Caution! Consult accompanying documents Caution! Hot surface. Caution! Hot steam. Protective earth (Ground) On-Off Page 16...

  • Page 18: Front View

    3.12 Front View Description Description Door handle Printer Door cover USB socket Right service door Display Right service door grip Keyboard Front leg Main switch Front service cover Printer cover Ventilation grill Page 17...
  • Page 19 Right service door lock Page 18...
  • Page 20 3.12.1 Front View: What is Special for WR Configuration Description Description Glass tube indicator of the Inlet for manual water reservoir water level reservoir filling Wheel Page 19...

  • Page 21: Rear View

    3.13 Rear View No. Description No. Description Air pressure regulator (C – cooling models Fan grill only) Air pressure gauge (C – cooling models only) Left service door grill Compressed air inlet (C – cooling models Left service door lock only) Mineral free water inlet RJ45 connector...
  • Page 22 Drain outlet Page 21...

  • Page 23: Rear View: What Is Special For Wr Configuration

    3.14 Rear View: What is Special for WR Configuration No. Description Description Water reservoir overflow Wheel Water reservoir drain Page 22...

  • Page 24: Overall Dimensions, Wr Configuration(Mm)

    3.15 Overall Dimensions, WR Configuration(mm) 3.16 Safety Features This autoclave includes built-in safety features such as:  Error message display.  Electronic pressure and temperature measurement.  Safety relief valve to avoid build-up of excessive pressure.  Door switches enabling operation to be started only when the door is closed.

  • Page 25: Description Of Operation

     Excess temperature protection. 3.17 Description of Operation 3.17.1 Heat The vertical autoclaves are equipped with immersion type, heating elements. After water has been introduced to the chamber and the unit has been activated, the heating elements begin to heat. The temperature and pressure in the chamber increase until appropriate levels are reached.
  • Page 26 flow is stopped automatically, process is completed, and it is possible to open the door and take out the sterilized goods from the chamber. 3.17.4 Exhaust When the timed sterilization cycle is complete, the unit enters the exhaust stage, provided that a program other than the liquid program was selected.

  • Page 27: Control Panel

    4. Control Panel Control Panel Drawing Description Display On/off switch and circuit breaker Keypad USB Port Printer Page 26...

  • Page 28: Description And Functions Of The Front Panel Keyboard

    4.2 Description and Functions of the Front Panel Keyboard The front panel is composed of 3 sections: Display screen. Keypad. Printer 4.2.1 Display screen The display is an LCD panel used to display the current status of the autoclave while using Operational Messages and Error Messages. 4.2.2 Keypad The keypad consists of three keys as described below: UP key...
  • Page 29 increases its value. When the cursor is blinking on a menu selection, the UP ▲ key allows browsing backward through the menu. When adjusting a parameter and the cursor is blinking on “SET” or “EXIT” the UP ▲ key activates that procedure.”...

  • Page 30: Displayed Error Messages / Symbols

    4.3 Displayed Error Messages / Symbols The failures are divided into two categories . Failure that occur before completing the sterilization stage, which in this case will leave the load unsterilized Failure that occur after completing the sterilization stage, which in this case will leave the load sterilized For the list of Displayed Error Messages / Symbols see sec.
  • Page 31 Critical settings have been If a change of the autoclave updated, please Restart the autoclave for setting was made, a restart restart machine changes to be updated. operation is required. for changes to be updated This message is displayed if Perform a new cycle to the electrode in the chamber drain the chamber.

  • Page 32: Sterilization Programs

    5. Sterilization Programs Sterilization Programs Temp. models models models only only only Icon Description 134°C Glass (273F) 121°C Plastic (250F) 121°C Liquid A (250F) Liquid B – 121°C Waste* (250F) Liquid A – 121°C √ Cooling* (250F) Liquid B 121°C √...
  • Page 33 Sterilization Programs Temp. models models models only only only Icon Description Bio Hazard √ (250F) Bio Hazard √ Liquids* (250F) √ Vacuum test (PV only)* 80 °C Warm-Up* 176F) 80 °C Isothermal* 176F) 121C Mixture* (250F) 121C Glass Test* (250F) 121C Durham* (250F)
  • Page 34 Attention! This device is not a medical device and not intended for medical use. Page 33...
  • Page 35 During the process, the stages of the cycle will be displayed on the screen: Page 34...

  • Page 36: Program 1: Glass

    5.1 Program 1: Glass For glass instruments when the manufacturer recommends autoclaving at temperatures of 134C (273F). Drying stage is available for PV (pre-vacuum) models only. Nominal parameters default settings • Sterilization temperature: 134C (273F). • Sterilization time: 3 minutes. •...

  • Page 37: Program 2: Plastic

    5.2 Program 2: Plastic For plastic and other delicate instruments when the manufacturer recommends autoclaving at temperatures of 121C (250F). Drying stage is available for PV (pre-vacuum) models only. Nominal parameters default settings • Sterilization temperature: 121C (250F) • Sterilization time: 15 minutes •...

  • Page 38: Program 3: Liquid A

    5.3 Program 3: Liquid A For liquids when the manufacturer recommends autoclaving at temperatures of 121C (250F) for 15 minutes. Cautions! Both PT100 temperature sensors must be inside the bottles. For proper sterilization, fill the bottles with approximately the same amount of liquid. Nominal parameters default settings •...

  • Page 39: Program 4: Liquid B - Waste

    • Ending: The system checks that End temperature and End pressure have been reached, and then releases the door. 5.4 Program 4: Liquid B – Waste For liquids when the manufacturer recommends autoclaving at temperatures of 121C (250F) for 30 minutes, such as liquid waste. Cautions! Both PT100 temperature sensors must be inside the bottles.

  • Page 40: Program 5: Liquid A - Cooling (C - Cooling Models Only)

    Then steam is exhausted out of the chamber at a fast rate until pressure decreases to ambient pressure. • Drying: N/A • Ending: The system checks that End temperature and End pressure have been reached, and then releases the door. 5.5 Program 5: Liquid A –...

  • Page 41: Program 6: Liquid B - Waste Cooling (C - Cooling Models Only)

    • Cooling: Forced cooling to the required end temperature, chamber pressure remains at approx. 300 kPa and the cooling valve is opened. • Fast Exhaust: The steam is exhausted out of the chamber at a fast rate until pressure decreases to ambient pressure. •...

  • Page 42: Program 7: Bio Hazard 1 (Bh, Bio-Hazard Models Only)

    • Heating: The chamber is heated by actuation of electrical heaters until the sterilization temperature is reached. • Sterilization: Sterilization temperature is maintained constant during the sterilization time. • Cooling: Forced cooling to the required end temperature, chamber pressure remains at approx. 300 kPa and the cooling valve is opened.

  • Page 43: Program 8: Bio Hazard 2 (Bh, Bio-Hazard Models Only)

    • (PV, pre-vacuum models only) Pulse low/Pulse high: At one pulse it will build vacuum down to 25 kPa. All exhaust from the chamber is performed through the bio-hazard filter. • Water Inlet: Water enters the chamber • Heating: The chamber is heated by actuation of electrical heaters until the sterilization temperature is reached.

  • Page 44: Program 9: Bio Hazard Liquids (Bh, Bio-Hazard Models Only)

    • Sterilization time: 45 minutes • Drying time: 1 minute. (PV – pre-vacuum models only). Operations sequence: • (PV, pre-vacuum models only) Pulse low/Pulse high: At one pulse it will build vacuum down to 25 kPa. All exhaust from the chamber is performed through the bio-hazard filter.

  • Page 45: Program 10: Vacuum Test (Pv, Pre-Vacuum Models Only)

    Cautions! Both PT100 temperature sensors must be inside the bottles. For proper sterilization, fill the bottles with approximately the same amount of liquid. Nominal parameters default settings • Sterilization temperature: 121C (250F) • Sterilization time: 45 minutes Operations sequence: • (PV, pre-vacuum models only) Pulse low/Pulse high: At one pulse it will build vacuum down to 25 kPa.
  • Page 46 only) Vacuum Test is a test program with the following parameters: Nominal parameters default settings • Vacuum pressure: 17.0 kPa • Vacuum time 1: 5 minutes • Vacuum time 2: 10 minutes Operations sequence: • Vacuum is produced in the chamber down to P1=17 kPa. At this stage all the valves close.

  • Page 47: Program 11: Warm-Up

    5.11 Program 11: Warm-Up Pre-warming the chamber at 80C (176F) without drying. Caution! This is not a sterilization program! Nominal parameters default settings • Warm-up temperature: 80C (176F). • Warm-up time: 20 minutes. Operations sequence: • Pulse low/Pulse high: N/A •...

  • Page 48: Program 12: Isothermal

    5.12 Program 12: Isothermal For liquids when the manufacturer recommends autoclaving at 60- 100C (140-212F) with no drying. Recommending for melting of agar, pasteurization etc. Caution! This is not a sterilization program! Put one PT100 inside the bottle, leave the second one hanging in the chamber outside the bottle (see below).

  • Page 49: Program 13: Air Steam Mixture

    • Heating: The chamber is warmed up until the Keep-Heat temperature is reached inside the chamber. • Keep Heat: Keep-Heat temperature is maintained constant for the preset Keep-Heat time. • Cooling: N/A. • Fast Exhaust: The steam is exhausted out of the chamber at a fast rate until pressure decreases to ambient pressure.

  • Page 50: Program 14: Glass Test

    • Sterilization time: 15 minutes. Operations sequence: • Heating: Air enters the chamber followed by steam that heats it up until the sterilization temperature is reached. Air adds pressure needed to prevent swelling or warping of soft plastic items. Chamber fan is used to mix air with steam.

  • Page 51: Program 15: Durham

    • Sterilization temperature: 121C (250F). • Sterilization time: 20 minutes. Operations sequence: • Heating: Steam enters the chamber and heats it up until the sterilization temperature is reached. During the interval of the heating stage, between 100°C and 121°C, the heating rate is kept to approximately a rise of 1 degree per minute.
  • Page 52 Cautions! Both PT100 temperature sensors must be inside the bottles. For proper sterilization, fill the bottles with approximately the same amount of liquid. Nominal parameters default settings • Sterilization temperature: 121C (250F). • Sterilization time: 15 minutes. Operations sequence: • (PV, pre-vacuum models only) Pulse low/Pulse high: At one pulse it will build vacuum down to 25 kPa.

  • Page 53: Checking And Changing Parameters And Other Data

    6. Checking and Changing Parameters and Other Data Bacsoft control panel allows changing parameters of the cycle and of the system, exporting various data to, and importing from, a USB device or to the printer, and some other options. Cycle parameters are changeable for Custom programs only (see Duplicate cycles), except for the Temperature sensors, Displayed inputs, and Dry Time.

  • Page 54: Changing A Parameter

    Note: To exit every screen and to return to the previous screen (to get one level up): • Move the cursor to Exit by pressing the UP or DOWN keys and then press the Start/Stop key. - or- • Press the UP and DOWN keys simultaneously. In the next chapter you will see how to change the required parameter as desired.
  • Page 55 Note: Please note the maximum and minimum values for this parameter shown on the screen. Your value must be within these boundaries. Below is the example of changing the Dry time parameter on the screen used in the previous section: Page 54...

  • Page 56: Quick Options Screen

    Note: To exit every screen and to return to the previous screen: • Move the cursor to Exit by pressing the UP or DOWN keys and then press the Start/Stop key - or- • Press the UP and DOWN keys simultaneously 6.3 Quick options screen When the autoclave is on and no cycle is running, press Up and Down keys simultaneously to enter the Quick options screen.
  • Page 57 Below you can find instructions how to login and enter the Main menu. Section 6.1 above explains how to browse through the menus; section 6.2 explains how to change a parameter. Below is the explanation of some Quick Options. 6.3.1 Version Information This directory allows viewing information of the current, factory default, and previous software versions.
  • Page 58 Enter the Start cycle by clock screen. The following screen will appear: On the Start cycle by clock screen, the time is displayed in the form “HH:MM”. The hour range is 24 hours (i.e. from "0" to "24"). Setting the time to start the cycle Move the cursor to the Time field.
  • Page 59 Disabling the START CYCLE BY CLOCK On the Start Cycle by Clock screen, move the cursor to Disabled. Press Up or Down key to disable Starting cycle by clock. Exit the Enabling the Start Cycle by Clock. 6.3.3 Set date and time This subdirectory enables the operator to set date and time.

  • Page 60: Logging In And Entering The Main Menu

    Caution! After setting time and date, turn the autoclave off and then on again. 6.4 Logging in and entering the Main menu Below you can find instructions how to login and enter the Main menu. Section 6.1 above explains how to browse through the menus, section 6.2 explains how to change a parameter.
  • Page 61 Choose User, then press the Start/Stop key to enter. The following screen will appear: 0000 is displayed on the screen with the cursor flashing on the right digit. • Set the code to 0001. You will get to the Main menu. Page 60...

  • Page 62: Changing Parameters

    Below is the list and the explanation of some options available to user on the Main Menu. 6.5 Changing parameters Bacsoft control panel provides an interface that consists of control screens available through an easy scrollable menu tree. To learn how to scroll through the menus, change the parameters, and perform some other functions using our three-button keypad, see 6.1 and 6.2.

  • Page 63: System Parameters

    6.6 System Parameters This menu is listing the system parameters that are the same for all cycles. Browse to the following folder: Main menu\System parameters You will see the following screen: 6.6.1 Screen Saver In this menu you can define the screensaver delay time, i. e. how long the keyboard will be untouched before the screensaver activates.
  • Page 64 Below is the instruction for autoclave’s maintenance menu. 6.7.1 Reset atmospheric pressure In this menu you can reset the atmospheric pressure value. To do so: Browse to the following folder: Maintenance\Reset atmospheric pressure The following screen will appear: Leave the door open for 2 minutes at least. Ambient temperature should be less than 45°C.

  • Page 65: Cycle Parameters

    The following screen will appear to confirm that the test has been done. See the printout shown in the Printer handling chapter of this manual. 6.8 Cycle parameters The Cycle parameters menu includes parameters of a specific sterilization program (cycle). Browse to the following folder: Main menu\Cycle parameters You will see the following screen listing the cycle parameters: Note: For all the standard sterilization cycles, and for Bowie and Dick test, the...
  • Page 66 6.8.1 Dry Time This parameter defines duration of the drying stage for the cycle. Browse to the following folder: Cycle parameters\Drying\Dry Time Change the parameter as desired. Drying stage is divided into two stages. For each stage you can set the total time, on time and off time.

  • Page 67: Screens

    7. Screens 7.1 Screens following a complete successfully cycle – "Cycle Ended" 1. System Ready 2. Pulse Low (LV 3. Pulse High (1/1) model only) (LV model only) 4. Heating 5. Sterilization 6. Exhaust 7. Drying (LV model 8. Ending 9.

  • Page 68: Screens Following Aborted Cycles After Complete Sterilization Stage

    7.2 Screens following aborted cycles after complete sterilization stage The sterilization phase ended successfully – cycle ended, and the reason of failure is displayed For example, the next two scenarios: 7.2.1 Canceled by user after complete sterilization stage The cycle ended successfully, the reason for aborted cycle is displayed.
  • Page 69 7.3.2 Failure according to Cancellation by user before complete sterilization stage When "Cycle Failed" appears on the screen, the user shall press START/STOP key to delete the "Cycle Failed" message An example for all displayed warnings according to Cycle Failed: Cycle Failed message Reason of failure The screen color changed...

  • Page 70: Printer

    8. Printer 8.1 Printer Output The printing is on thermal paper with 24 characters per line and contains the following information: • Date: • Time: • Ser. Num: • Model: • Version: • Cycle Num: • Cycle: • Dry Time: •...
  • Page 71 exhaust The time, temperature, and pressure during E 00:22:08 134.5 311.9 exhaust CLK 2: 12:12:10:00 CLK 1: 12:12:10:00 The time, temperature, and pressure during S 00:22:07 134.5 311.6 sterilization The time, temperature, and pressure during S 00:22:06 134.5 311.6 sterilization The time, temperature, and pressure during S 00:21:06 134.6...
  • Page 72 7.0.00.00 C: Total number of Input/Output functionality that are not as default = 00 D: Total number of parameters values that are not as default = 00 Model: LABSCI 11LV Model name Ser. Num: 000000000001 Model Serial number Time: 11:50:05...

  • Page 73: Printer Handling

    Legend Insert Water Sterilization stage Steam Flush CLK 1 Real Time Clock Air removal stage CLK 2 Software clock Heating stage Exhaust stage Keep Heat (Optional) Drying Stage (LPV Model only) 8.2 Printer Handling 8.2.1 Maintenance Wipe off the soiling on the printer surface with a dry soft cloth with a weak neutral detergent.
  • Page 74 Fig. 1 Open the printer's cover door (1) by pulling it up (see Fig. 2). Page 73...
  • Page 75 Fig. 2 Press the OPEN key to open the printer cover as shown (see Fig. 3/1). Handle the paper cutter carefully not to cut your hand. Place the paper roll making sure it unrolls in the proper direction as shown (see Fig. 3/2). Take out the paper and re-close the cover as shown (see Fig.
  • Page 76 8.2.3 Treating the thermal papers: • Store the papers in a dry, cool, and dark place. • Do not rub the papers with hard substance. • Keep the papers away from organic solvent. Cautions Never disassemble the printer. Failure to follow this instruction may cause overheating or burning of the printer or the AC adapter.

  • Page 77: Preparation Before Sterilization

    9. Preparation before Sterilization The purpose of packaging and wrapping of items for sterilization is to provide an effective barrier against sources of potential contamination to maintain sterility and to permit aseptic removal of the contents of the pack. Packaging and wrapping materials should permit the removal of air from the pack, penetration of the sterilizing water vapor into the pack and removal of the sterilizing vapor.

  • Page 78: Liquids

    Disassemble or sufficiently loosen multiple-part instruments prior to packaging to permit the sterilizing agent to come into contact with all parts of the instrument. Tilt on edge items prone to entrap air and moisture, e.g. hollowware, so that only minimal resistance to removal of air, the passage of steam and condensate will be met.
  • Page 79 Page 78...

  • Page 80: Operating Instructions

    10. Operating Instructions 10.1 Draining and filling the water reservoir (WR only). Draining CAUTION! Before starting, make sure that the electric cord is disconnected and there is no pressure in the autoclave. The drain valve is located on the bottom of the water reservoir (See 3.14 .

  • Page 81: Turning On The Autoclave

    Cautions! Use only water having the characteristics as per table in sec 3.7. Tap water may clog the system. A clogged system causes increase of pressure, which prevent temperature from rising. Under no circumstance should water be filled above the cooling coil.

  • Page 82: Opening The Door

    The door is equipped with an electrical cylinder. This electrical cylinder performs the automatic opening and closing of the door. 10.3 Opening the door 1. Place your thumb on the plastic door cover and the other fingers in the handle. 2.

  • Page 83: Unloading

    10.7 Unloading When the cycle ended successfully (including pressing START/STOP key, or any failure, after completing the sterilization stage) message "Cycle Ended" (and the relevant failure message, if applicable) is displayed on the screen. • Verify that there is no pressure in the chamber, according to the reading on the display.
  • Page 84 The load has not completed a sterilization cycle; therefore, it is not sterile. Handle it as contaminated load. Page 83...

  • Page 85: Start Cycle By Clock Mode

    10.9 Start Cycle by Clock mode • This mode enables the operator to define the time of the beginning of the cycle. The maximum possible delay is 24 hours. For further information see sec. 6.3.2. “Start Cycle by Clock”. 10.10 Moving the Autoclave Disconnect the power supply cord.
  • Page 86 For detailed loading instructions, see sec. 9 (Preparation before sterilization) 10.11.3 Unloading On completion of the cycle, take out the load immediately from the sterilizer. Do not remove the load from the basket until its temperature reduces to the room temperature. Let the load cool down in an area without air movement (air conditioning, etc.) and with minimum people passing by to avoid possibility of touching the hot load.

  • Page 87: Service And Maintenance

    11. Service and Maintenance 11.1 Preventive Maintenance The maintenance operations described in this chapter must be fulfilled periodically to keep the autoclave in good working condition and to reduce the breakdown time to a minimum. The user’s maintenance personnel, according to the following instructions can easily execute these operations.

  • Page 88: Checking The Safety Valve

    add water to the reservoir until the message disappears. Do not fill the reservoir completely! Put a few drops of oil on the two door pins and door tightening bolts. Clean outer parts of the autoclave with a soft cloth. 11.1.3 Periodically Every 6 months replace the air filter, (if installed) (to be done by an authorized technician).
  • Page 89 Use protective gloves in order not to burn your hands with the hot steam. Pressure-Regulating Nut Rear Wall 11.2.2 ASME-approved type safety valve Operate the sterilization cycle according to the manual. Allow a pressure of approximately 200 kPa (29-psi) to build up in the chamber.
  • Page 90 Attention: Use protective gloves in order not to burn your hands with the hot steam. Safety valve ring Page 89...

  • Page 91: Troubleshooting

    12. Troubleshooting This troubleshooting chart enables the user to solve minor malfunctions, prior to contacting our service department. Only technical personnel having proper qualifications and holding technical documentation (including a technician manual) and adequate information are authorized to service the apparatus.
  • Page 92 Message / Symbol / Failure Description Corrective Action Problem damaged. This message is displayed if the temperature drops for Low Temp more than 1 second below Perform a new cycle. the sterilization temperature during sterilization cycle. This message is displayed if the temperature raises 7°F (4°C) above sterilization High Temp...
  • Page 93 Message / Symbol / Failure Description Corrective Action Problem stage. This message is displayed if Chamber Pressure raises 4.2 psi-29 kPa above sterilization High pressure (134°C = 304 kPa, Perform a new cycle. Pressure 121°C = 205 kPa) for 2 seconds during the sterilization stage.
  • Page 94 Message / Symbol / Failure Description Corrective Action Problem This message is displayed at Wait until the autoclave the end of the cycle If the reaches the atmospheric Air Error autoclave does not reach the pressure and perform a atmospheric pressure after new cycle.
  • Page 95 Message / Symbol / Failure Description Corrective Action Problem sensor or Pressure sensor is disconnected or out of range. This message is displayed if Chamber the temperature in the temperature Call for service. chamber is too high or too not in range low from the normal range.

  • Page 96: Baskets And Containers

    13. Baskets and Containers Container for waste products High Basket Low Basket Stainless steel container for Stainless steel wire baskets waste products, with vent holes Dia. x Height (mm) Capacity Dia. x Height (mm) Capacity 250 x 190 265 x 200 250 x 250 265 x 390 14.

  • Page 97: Accessories

    Teflon gasket 4 mm GAS082-0008 15. Accessories Description Cat. No. Printer, PLUSII-S2B-0004 THE002-0052 Thermal paper for CUSTOM PLUSII printer THE002-0066 roll 57mm, d=50mm High BSK411-0002 Stainless steel wire basket BSK411-0001 High BSK411-0003 Stainless steel container for waste products, with vents holes BSK411-0004 Page 96...
