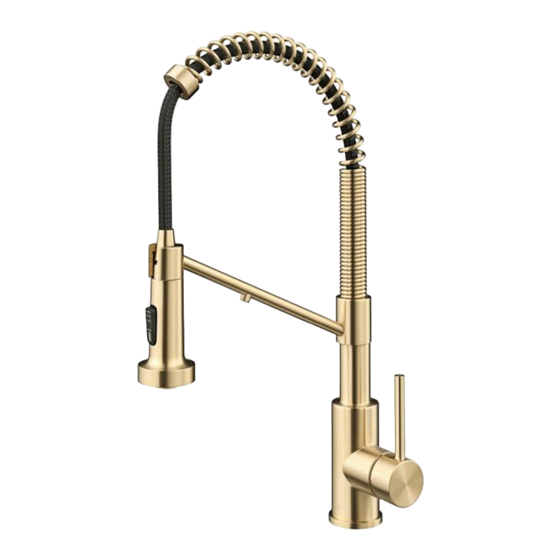

INSTALLATION MANUAL
Bolden™ Single Handle
Filtration Kitchen Faucet
KFF-1610
www.kraususa.com
I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I Rev. April 11, 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bolden KFF-1610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kraus Bolden KFF-1610

  • Page 1 INSTALLATION MANUAL Bolden™ Single Handle Filtration Kitchen Faucet KFF-1610 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I Rev. April 11, 2023...
  • Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: DO NOT RETURN TO STORE...
  • Page 3: Prior To Installation

    Make sure you have all necessary parts by checking the diagram and · parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Read all instructions and safety warnings and ensure you have all tools, ·...
  • Page 4 Diagram and Parts List A. Spray Head G. Weight B. Faucet Body H. Weight Clip I. Quick Connector C. Rubber Washer D. Metal Washer J. 3/8” to 1/4” Filter Adapter K. 2.5mm Hex Wrench E. Mounting Nut F. Screws...
  • Page 5 Faucet Dimensions 10 3/4" [273.5mm] 4 1/4" 8 5/8" [108.6mm] [220.0mm] 5 1/4" [132.9mm] 2 1/8" [54.0mm] 3/8”-compression 3/8”-filter tube Installer Tip: Shut off main water supply before installing new faucet.
  • Page 6 Step 1: Installing the faucet Shut off the water supply. Clean the countertop. Place the faucet (B) through the hole in the countertop. Secure the faucet (B) to the countertop using the rubber washer (C), metal washer (D) and mounting nut (E) provided. Tighten screws (F).
  • Page 7: Step 3: Installing The Counterweight

    Step 3: Installing the counterweight Install the weight clip (H) at the point of the hose marking "weight here". Insert the weight (G) onto the weight clip (H) by sliding it down onto the weight clip (H). Step 4: Connect waterlines to main valve Attach waterlines to angle stops and tighten until snug.
  • Page 8 Step 5: Flushing and checking for leaks Unfiltered Water Function Pull the hose assembly out of the spout and remove the spray head (A) by unscrewing it from the hose in a counterclockwise direction. Be sure to hold the end of the hose down into the sink and turn the faucet to the warm position where it mixes hot and cold water.
  • Page 9: Replacement Parts

    Replacement Parts Replacement Parts List Finish / Color Part # CH, SFS, MB,BB 1. Sprayer Head KP27216 SFACB** 2. Washer KP27208 3. Inverter KP27245 GRCH, GRSFS, 4. Sprayer Hose KP27247 BLBB, BLSFS BLMB,BLSFACB* CH, SFS, MB, BB 5. Spring Assembly KP27220 SFACB** 6.
  • Page 10: Troubleshooting

    Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Bonnet nut (7) has come Remove the index (11). Loosen set screw Leakage under the handle. loose.
  • Page 11 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
  • Page 12 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
  • Page 13 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
