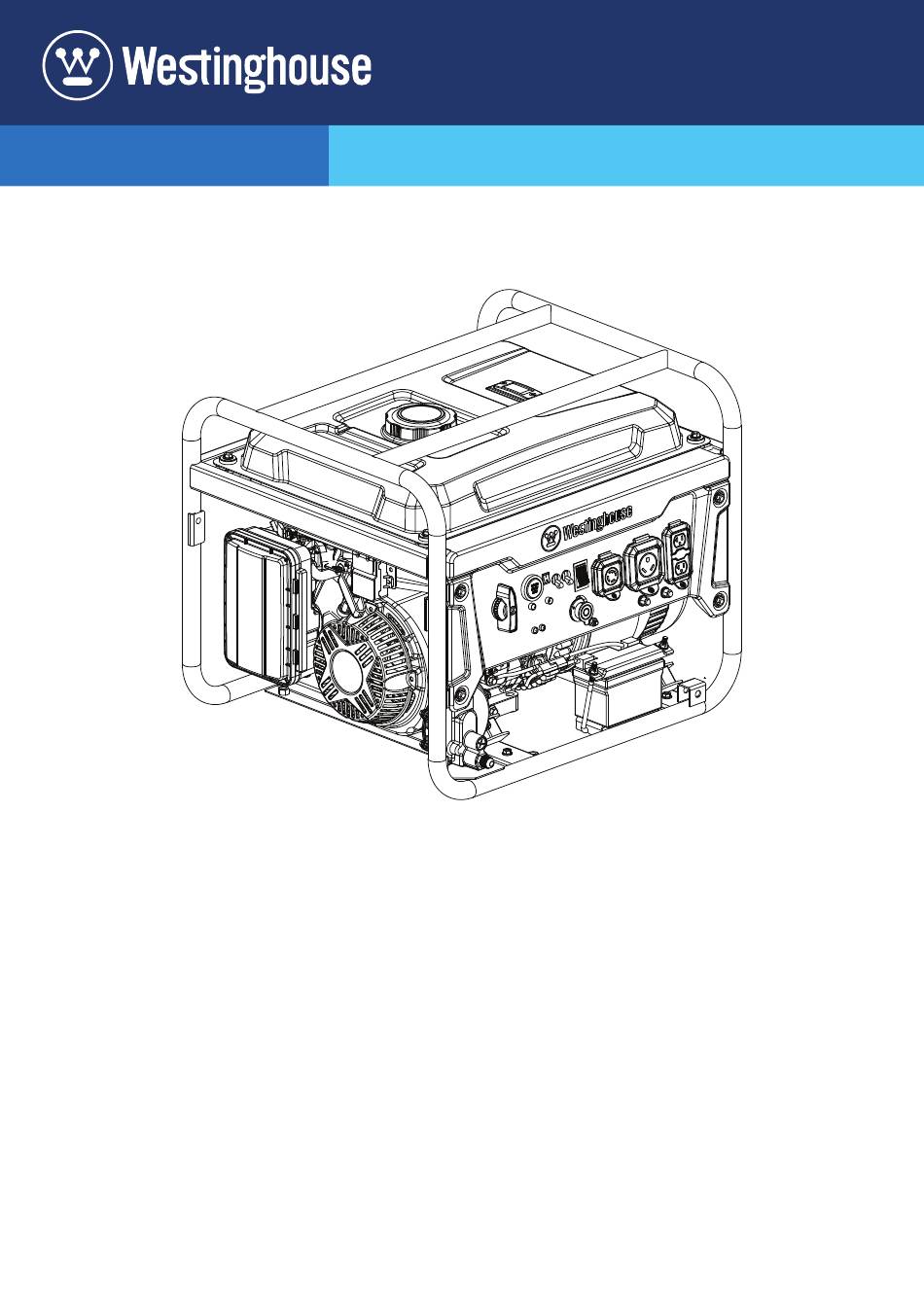

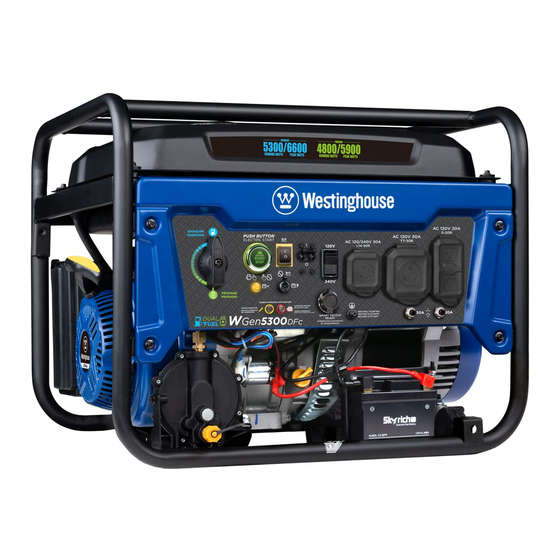

- Page 1 USER MANUAL WGen5300 Dual Fuel Portable Generator Gasoline: 5300 Running Watts | 6600 Peak Watts Propane: 4800 Running Watts | 5800 Peak Watts DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance, please call customer service at 855-944-3571.
-
Page 2: Table Of Contents
The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specification or design change without notice. 2 | Westinghouse Outdoor Power Equipment, LLC... -
Page 3: Introduction
Place of Purchase: Or scan the following QR code with your smartphone IMPORTANT: Keep your purchase receipt for trouble-free camera to be directed to the link. warranty coverage. Westinghouse Outdoor Power Equipment, LLC | 3... -
Page 4: Safety
Note: Indicates a procedure, practice or condition that should be followed for the generator to function in the manner intended. 4 | Westinghouse Outdoor Power Equipment, LLC... -
Page 5: Safety Instructions
The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes. Westinghouse Outdoor Power Equipment, LLC | 5... - Page 6 • Gas vapors can cause a fire if ignited. • Gasoline is a skin irritant and needs to be cleaned up immediately if it comes in contact with the skin. 6 | Westinghouse Outdoor Power Equipment, LLC...
- Page 7 7” to 14” of water column. A certified plumber must ensure that the pressure is correct or install a step down regulator if needed. Westinghouse Outdoor Power Equipment, LLC | 7...
-
Page 8: Safety Labels
SAFETY SAFETY LABELS 8 | Westinghouse Outdoor Power Equipment, LLC... -
Page 9: Safety Labels
SAFETY SAFETY LABELS Westinghouse Outdoor Power Equipment, LLC | 9... -
Page 10: Co Sensor
A CO sensor air immediately. Call emergency services. You may have fault can only be diagnosed and repaired carbon monoxide poisoning. by an authorized Westinghouse service ACTION LABEL center. 10 | Westinghouse Outdoor Power Equipment, LLC... -
Page 11: Components
ON before electric or remote start. externally ground the generator. 4. Main Circuit Breaker: The main circuit breaker 12. Smart Switch Outlet: Connects the Westinghouse controls total output of all outlets to protect the generator from overload or short circuit. -
Page 12: Generator Components
Fuel gauge Spark plug Serial number Carburetor Alternator cover Carbon canister Muffler/spark arrestor Fuel tank valve Control panel Choke lever Air filter Oil dipstick/ filler neck Recoil Starter Oil drain bolt LPG/Propane inlet 12 | Westinghouse Outdoor Power Equipment, LLC... -
Page 13: Assembly
See Engine Oil Level Check in the Maintenance section. 3. Wipe the oil dipstick clean. Replace the oil dipstick and hand-tighten. Westinghouse Outdoor Power Equipment, LLC | 13... -
Page 14: Fuel
• DO NOT use included LPG/propane hose for any gasoline in an approved gasoline container before fueling other appliances. the generator. Run the generator for five minutes to allow the stabilizer to treat the entire fuel system. 14 | Westinghouse Outdoor Power Equipment, LLC... -
Page 15: Connect The Battery
LPG/ propane connector on the tank. Hand-tighten. 7. Turn the propane tank valve to the fully open position. Check all connections for leaks by wetting the fittings Westinghouse Outdoor Power Equipment, LLC | 15... -
Page 16: Operation
Selector is in the 240V position. stairs, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the muffler. DO NOT contain generators during operation. 16 | Westinghouse Outdoor Power Equipment, LLC... -
Page 17: High Altitude Operation
5. Firmly grasp and pull the recoil handle slowly until you feel increased resistance, then pull rapidly. 6. After starting, allow the engine to run for several seconds then move the Choke lever to the fully OFF position. Westinghouse Outdoor Power Equipment, LLC | 17... -
Page 18: Starting The Engine: Propane
1. Fully open the valve on the propane tank. Circuit Breakers 2. Turn the fuel selector switch to propane operation. 3. Turn the fuel tank valve to the OFF position. Push to Reset 18 | Westinghouse Outdoor Power Equipment, LLC... -
Page 19: Generator Capacity
ALWAYS use battery-powered carbon monoxide detector (s) that meet current UL 2034 safety standards when running the generator. Regularly check the detector (s) battery. Westinghouse Outdoor Power Equipment, LLC | 19... -
Page 20: Transporting
Fire hazard. DO NOT up-end the generator or place it on Only use grounded 3-prong extension cords marked for its side. Fuel or oil can leak and damage to the generator outdoor use that are rated for the electrical load. may occur. 20 | Westinghouse Outdoor Power Equipment, LLC... -
Page 21: Maintenance
Clean more often under dirty or dusty conditions. Replace air filter if it cannot be adequately cleaned. Recommend service to be performed by authorized Westinghouse service dealer. 3. Clean the air filter with compressed air. Replace if damaged. Westinghouse Outdoor Power Equipment, LLC | 21... -
Page 22: Engine Oil Level Check
1. Place the generator on a level surface and allow the engine to cool for several minutes. 2. With a damp rag, clean around the oil dipstick. 22 | Westinghouse Outdoor Power Equipment, LLC... -
Page 23: Spark Plug Maintenance
2. Turn the fuel valve to the OFF position. NOTICE Fuel filter ALWAYS use the Westinghouse OEM or compatible non-resistor-type spark plug. Use of resistor-type spark plug can result in rough idling, misfire, or may prevent the engine from starting. -
Page 24: Spark Arrestor Service
1. Turn the fuel tank valve to the OFF position. 4. Reinstall the spark arrestor. 2. Locate the drain screw on the bottom of the carburetor STORAGE float bowl. Proper storage preparation is required for trouble-free operation and generator longevity. 24 | Westinghouse Outdoor Power Equipment, LLC... -
Page 25: Valve Clearance
8. Perform this procedure for the other valve. gently. 9. Install the gasket, rocker arm cover, and spark plug. 8. Reinstall the spark plug. Leave the spark plug boot disconnected to prevent accidental starting. Westinghouse Outdoor Power Equipment, LLC | 25... -
Page 26: Troubleshooting
Engine will not start Spark plug faulty, fouled, or improperly gapped. Gap or replace the spark plug. Reinstall. Fuel system malfunction, fuel pump failure, ignition Contact Westinghouse customer service toll-free at 1 (855) malfunction, valves stuck, etc. 944-3571. Choke partially open or closed. - Page 27 Gasoline not purged from the carburetor before switch to gas. Start the engine and allow the engine to run switching to propane. until the gasoline has been consumed in the carburetor. Begin propane start up procedure. Westinghouse Outdoor Power Equipment, LLC | 27...
-
Page 28: Exploded Views And Parts List Engine Exploded View
EXPLODED VIEWS EXPLODED VIEWS AND PARTS LIST ENGINE EXPLODED VIEW 28 | Westinghouse Outdoor Power Equipment, LLC... -
Page 29: Engine Parts List
402901 AIR FILTER ASSEMBLY CYLINDER HEAD COVER ASSEMBLY 13.3.1 5941 FILTER ELEMENT 91329 BOLT 50100022 IGNITER ASSEMBLY 96225 CYLINDER HEAD COVER GASKET 14.1 97552 IGNITER 401102 CYLINDER HEAD INTERNAL COVER 14.2 91331 BOLT Westinghouse Outdoor Power Equipment, LLC | 29... - Page 30 RECOIL COVER 16.3 260801 Q-SHAPE CABLE CLIP 50260012 STARTER MOTOR ASSEMBLY 17.1 97459 STARTING MOTOR ASSEMBLY 17.2 240910 LOCATING PIN 91816 BOLT 94007 OIL DRAIN BOLT WASHER 96224 GASKET 94229 AIR FILTER GASKET 30 | Westinghouse Outdoor Power Equipment, LLC...
-
Page 31: Generator Exploded View
EXPLODED VIEWS GENERATOR EXPLODED VIEW Westinghouse Outdoor Power Equipment, LLC | 31... -
Page 32: Generator Parts List
CARBON CANISTER AND AIR FILTER ALTERNATOR ASSEMBLY CONNECTING PIPE 10.1 755537 ALTERNATOR 91327 BOLT M6 10.1.1 599019 CARBON BRUSH 94402 FUEL LINE CLAMP 10.1.2 6560 TERMINAL ASSEMBLY 94408 FUEL LINE CLAMP 10.2 532306 ALTERNATOR TAIL BRACKET 32 | Westinghouse Outdoor Power Equipment, LLC... - Page 33 TAIL BRACKET FIXING PLATE 10.13 94204 SPRING WASHER CO MODULE ASSEMBLY 11.1 599064 CO MODULE 11.2 92270 BOLT M4 545331 PRESSURE REDUCING VALVE 99635 OIL BOTTLE 99010 SPARK PLUG WRENCH 500942 FUNNEL 99025 WRENCH 511076 CHARGER Westinghouse Outdoor Power Equipment, LLC | 33...
-
Page 34: Schematics
SCHEMATICS SCHEMATICS SCHEMATICS 34 | Westinghouse Outdoor Power Equipment, LLC...
