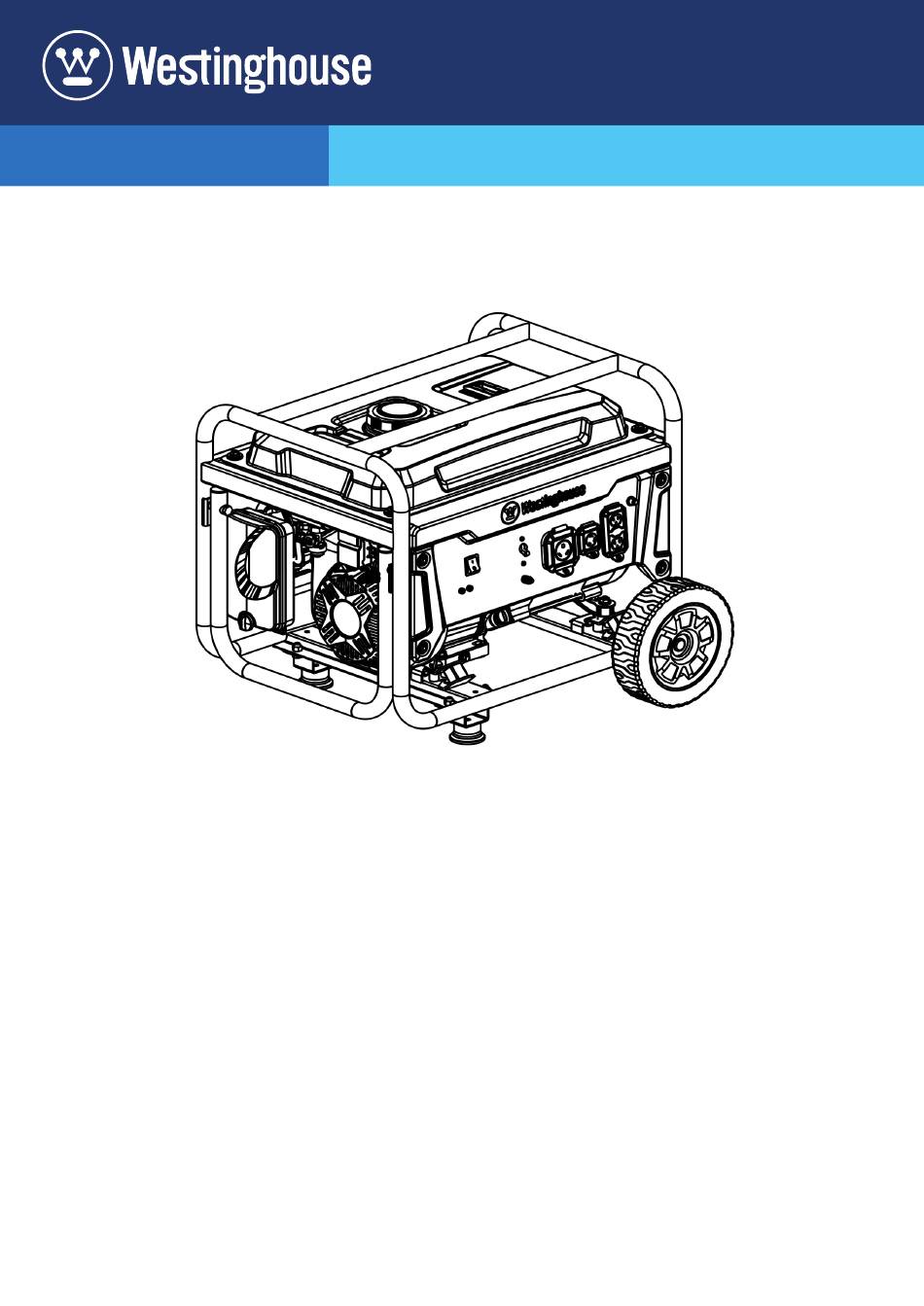

- Page 1 USER MANUAL WGen3600 Portable Generator Gasoline: 3600 Running Watts | 4650 Peak Watts DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance, please call customer service at 855-944-3571.
-
Page 2: Table Of Contents
Power Equipment, LLC. Read this manual before using or performing maintenance on this product. Failure to follow the instructions and safety precautions in this manual can result in serious injury or death. SAVE THESE INSTRUCTIONS 2 | Westinghouse Outdoor Power Equipment, LLC... -
Page 3: Specifications
*Ethanol content of 10% or less. DO NOT use E15 or E85. 777 Manor Park Drive Columbus, OH 43228 For Your Records Date of Purchase: Model Number: Serial Number: Place of Purchase: IMPORTANT: Keep your purchase receipt for trouble-free warranty coverage. Westinghouse Outdoor Power Equipment, LLC | 3... -
Page 4: Safety
Note: Indicates a procedure, practice or condition that should be followed for the generator to function in the manner intended. 4 | Westinghouse Outdoor Power Equipment, LLC... -
Page 5: Safety Instructions
The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes. Westinghouse Outdoor Power Equipment, LLC | 5... - Page 6 • NEVER remove the fuel cap when the generator is ignitions. running. Shut off the engine and allow the unit to cool 6 | Westinghouse Outdoor Power Equipment, LLC...
-
Page 7: Safety Labels And Decals
SAFETY SAFETY LABELS AND DECALS Westinghouse Outdoor Power Equipment, LLC | 7... -
Page 8: Co Sensor
A CO sensor air immediately. Call emergency services. You may have fault can only be diagnosed and repaired carbon monoxide poisoning. by an authorized Westinghouse service ACTION LABEL center. 8 | Westinghouse Outdoor Power Equipment, LLC... -
Page 9: Components
CO Sensor automatically shuts down Receptacle: Receptacle can supply a maximum of the engine. 30 Amps. 5. 120 Volt AC, 20 Amp Duplex NEMA 5-20R Receptacles: Receptacles can supply a maximum of 20 Amps. Westinghouse Outdoor Power Equipment, LLC | 9... -
Page 10: Generator Components
COMPONENTS GENERATOR COMPONENTS 10 | Westinghouse Outdoor Power Equipment, LLC... -
Page 11: Assembly Carton Contents
Note: As residual oil from the factory may remain in the engine, add the oil incrementally near the end of the bottle to prevent overfilling the engine. See Engine Oil Level Check in the Maintenance section. 3. Replace the oil dipstick and hand-tighten. Westinghouse Outdoor Power Equipment, LLC | 11... -
Page 12: Fuel
ALWAYS mix the correct amount of fuel stabilizer to gasoline in an approved gasoline container before fueling the generator. Run the generator for five minutes to allow the stabilizer to treat the entire fuel system. 12 | Westinghouse Outdoor Power Equipment, LLC... -
Page 13: Operation
High Altitude Carburetor Kit: Part# 518059 that will not allow for adequate cooling of the generator and/or the muffler. DO NOT contain generators during operation. Westinghouse Outdoor Power Equipment, LLC | 13... -
Page 14: Break-In Period
4. Firmly grasp and pull the recoil handle slowly until you feel increased resistance, then pull rapidly. 5. After starting, allow the engine to run for several seconds then move the Choke lever to the fully OFF position. 14 | Westinghouse Outdoor Power Equipment, LLC... -
Page 15: Generator Capacity
*Wattages listed are approximate. Verify actual wattage. Running Highest Watts* Starting Watts* Total Running Watts 2590 Highest Starting Watts + 1600 Total Starting Watts Needed 4190 *Wattages listed are approximate. Verify actual wattage. Westinghouse Outdoor Power Equipment, LLC | 15... -
Page 16: Extension Cords
Fire hazard. DO NOT up-end the generator or place it on its side. Fuel or oil can leak and damage to the generator may occur. 16 | Westinghouse Outdoor Power Equipment, LLC... -
Page 17: Maintenance
Only apply slow but firm squeezing Spark plug 97108 (F7TC) action. 4. Rinse the air filter element by submerging it in fresh water and applying a slow squeezing action. Allow the filter to dry thoroughly. Westinghouse Outdoor Power Equipment, LLC | 17... -
Page 18: Engine Oil Level Check
2. With a damp rag, clean around the oil dipstick. Remove the dipstick and wipe clean. 3. Place an oil pan (or suitable container) under the oil drain bolt. 18 | Westinghouse Outdoor Power Equipment, LLC... -
Page 19: Spark Plug Maintenance
100 hours of use or six months. Failure to clean the spark arrestor will result in degraded engine performance. ALWAYS use the Westinghouse OEM or compatible non-resistor-type spark plug. Use of resistor-type spark 1. Place the generator on a level surface. -
Page 20: Storage
• With the engine and exhaust system cool and all surfaces dry, cover the generator to keep out dust. DO NOT use a plastic sheet as a dust cover. Non-porous materials trap moisture and promote rust and corrosion. 20 | Westinghouse Outdoor Power Equipment, LLC... -
Page 21: Fuel Valve Maintenance
Hold the rocker arm pivot and re-tighten the pivot adjusting nut to the specified torque. Torque: 106 inch-pound (12 N•m) 8. Perform this procedure for the other valve. 9. Install the gasket, rocker arm cover, and spark plug. Westinghouse Outdoor Power Equipment, LLC | 21... -
Page 22: Troubleshooting Troubleshooting
Replace or repair tool or appliance. Stop and Faulty power tool or appliance. No power at AC receptacles restart the engine. Contact Westinghouse customer service toll- Faulty generator. free at 1 (855) 944-3571. 22 | Westinghouse Outdoor Power Equipment, LLC... -
Page 23: Exploded Views And Parts Lists Engine Exploded View
EXPLODED VIEWS EXPLODED VIEWS AND PARTS LISTS ENGINE EXPLODED VIEW Westinghouse Outdoor Power Equipment, LLC | 23... -
Page 24: Engine Parts List
15.2.1 5962-221 RECOIL COVER 241014 CYLINDER HEAD 91816 OIL DRAIN BOLT 91359 BOLT M8X60 94007 OIL DRAIN BOLT WASHER 241704 INTAKE VALVE 96045 CYLINDER HEAD COVER GASKET 245904 EXHAUST VALVE 96051 CARBURETOR GASKET 24 | Westinghouse Outdoor Power Equipment, LLC... -
Page 25: Generator Exploded View
EXPLODED VIEWS GENERATOR EXPLODED VIEW Westinghouse Outdoor Power Equipment, LLC | 25... -
Page 26: Generator Parts List
COTTER PIN 5.2.11 96120 PAPER WASHER 519215 FUEL CAP 5.2.12 599065 CO FLAMEOUT ACTUATOR 99010 SPARK PLUG WRENCH FUEL TANK 500942 FUNNEL 94403 FUEL LINE CLAMP 99025 WRENCH 700249L-116 FUEL TANK 99547 OIL BOTTLE 26 | Westinghouse Outdoor Power Equipment, LLC... -
Page 27: Schematics
SCHEMATICS SCHEMATICS Westinghouse Outdoor Power Equipment, LLC | 27...
