Summary of Contents for AAXA Technologies P400

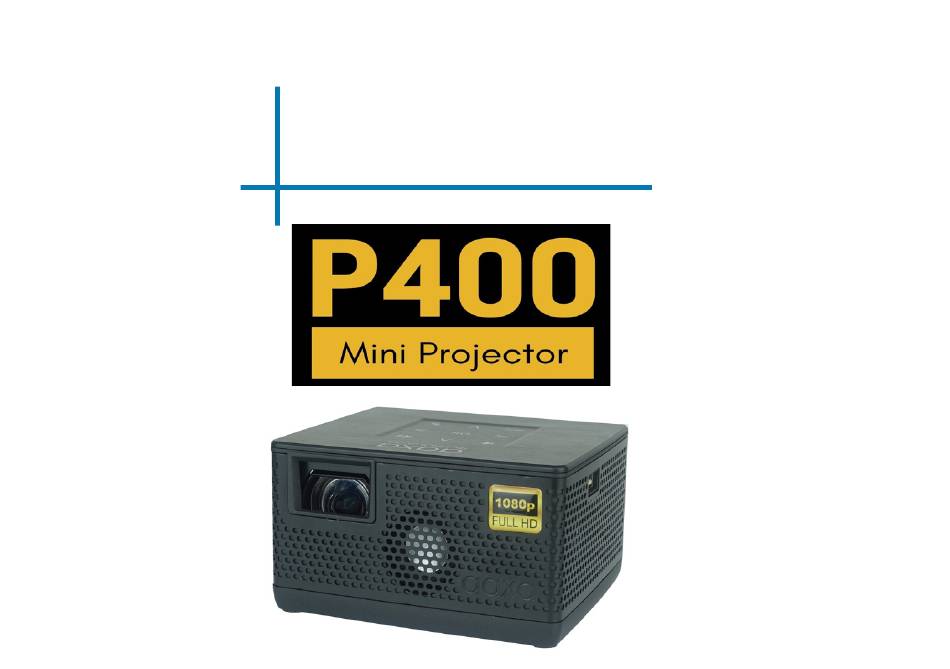

  • Page 1 aaxa TECHNOLOGIES User Guide...
  • Page 2 Caution! WARNING: Please use this product as instructed. Misuse may cause injury or death. DO NOT use while driving Caution for Battery Use • Do not pierce or puncture the battery DO NOT expose to water or wet with sharp objects surfaces.
  • Page 3: Table Of Contents

    Table of Contents Chapter 1: P400 at a Glance P400 Introduction Connecting to Device via Keypad Keypad Digital AV Accessories Music Player Menu Chapter 2: Getting Started Ebook Viewer Powering On / Off Chapter 4: Settings Menu Focus Adjustment / Throw...
  • Page 4: Chapter 1: P400 At A Glance

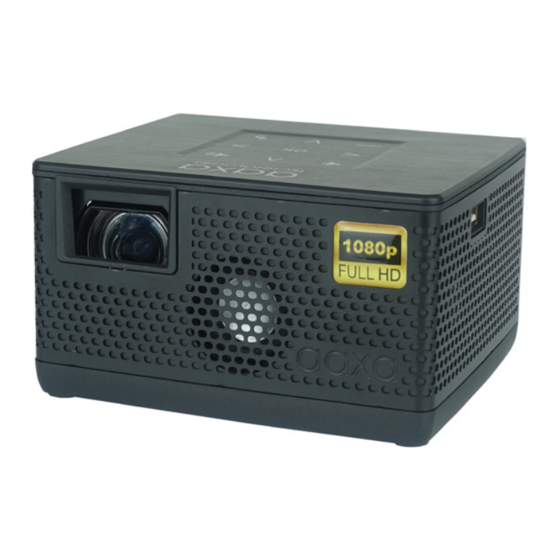

    Chapter 1 P400 at a Glance Main Unit TF Card Slot Power Switch DC Port Digital AV Port Focus Adjustment Headphone Out USB-A Port Control Keypad Cooling Fan...
  • Page 5 Navigation Pad Volume Down Volume Up Main Menu Navigation Exit/Back Menu The keypad can be used to navigate through the menus.
  • Page 6: Accessories

    Accessories Power Adapter Remote *Under various circumstances, the actual accessories may be different from those shown in the pictures above. Additional accessories are available for purchase at www.aaxatech.com...
  • Page 7: Chapter 2: Getting Started

    Getting Started Powering ON the projector Connect the power cord to the P400. Connect the other end of the power cord into the wall power source. Toggle the On / Off switch on the side of the projector to the “ON” position - the projector should automatically turn on.
  • Page 8: Focus Adjustment / Throw Distance

    Focus Adjusment / Throw Distance Throw Distance Chart Throw Distance Diagonal Size Units: Inches Units: Inches 16:9 Aspect Ratio Throw Ratio 0.7:1 Projection Angle: 100% Offset *minimum throw distance: 6 inches...
  • Page 9: Headphones

    Connecting Speakers / Headphones Step 1: Connect your speakers/headphones to the projector’s audio port. Step 2: Ensure that the projector and/or the headphones are powered on. Step 3: Place the headphones on and enjoy! *CAUTION Prolonged use of headphones at a high volume may impair hearing.
  • Page 10: Loading External Content

    Loading External Content The P400 can read files directly from both a TF Card and USB Drive. Supported file types include: MP3 / WMA / OGG / WAV AVI / JPG / GIF/ BMP (up to 64 GB) (up to 64 GB)
  • Page 11 Slide your USB Drive into the USB • Slide in your TF card into the TF card port. slot on the side of the P400 (as shown • Gently slide the drive until it cannot in picture). go in any further.
  • Page 12 Loading External Content Cont. Once your TF Card or USB Drive is inserted into the projector, the TF Card or USB Drive Storage will be loaded automatically and the content can be found through the Photos, Videos and Music icons located on the Main Menu, depend- ing on the file type you wish to play.
  • Page 13: Chapter 3: Menu Screens

    Chapter 3 Menu Screens Main Menu The P400 features a built in PMP (Portable Media Player) function. This function allows the projector to play videos, pictures, music files, and text directly from your connected devices. Inputs Menu Exit/Back • Press the left and right directional buttons to choose an icon from the main menu.
  • Page 14: Brightness Menu

    Brightness Menu To change the brightness on your P400: • Select the “Brightness” icon (Fig. 3.1) • Select the brightness you wish (Fig. 3.2) • Choose among Eco, Standard and Bright • NOTE: Only Eco and Standard Mode are available when using off battery Fig.
  • Page 15: Video Player Menu

    From the submenu (Fig. 3.2), select the storage media with the stored files. • Choose which file you wish to play. Fig. 3.3 Fig. 3.4 The P400 will show all folders and supported videos files you have on your USB or TF drive.
  • Page 16 Video Player Menu While Playing Videos While playing videos, the volume is adjustable. Further controls are available in the video player submenu - which is accessed through the “OK” button. *Review Specification section of this manual for supported video formats. Volume Down Volume Up Enter Video Player Submenu...
  • Page 17 Video Player Submenu Playing Videos The Video Player Submenu can be accessed by pressing “OK” during video playback. To exit the Video Player Submenu, press the “Back” button. To navigate the Playback Menu, use the directional buttons on the navigation pad to highlight the option you wish to choose ( see fig.
  • Page 18 Video Playback FAQ How do I loop a video? 1. Choose either USB or TF Card for playback 2. Navigate the folders until you reach the file you wish to play. 3. Highlight the file you want to play, then confirm the selection. 4.
  • Page 19: Photo Menu

    • Choose which file you wish to play. Fig. 3.4 Fig. 3.5 The P400 will show all folders and supported image files you have on your USB or TF Card drive. Use the navigation buttons to select folders or files.
  • Page 20 Photo Menu While Viewing Pictures While viewing pictures, further controls are available in the Photo Submenu - which is accessed through the “OK” button. Previous Picture Next Picture Enter Photo Player Submenu • To open/hide the Photo Playback menu, use the “OK”...
  • Page 21 Photo Submenu Viewing Pictures: The Photo Submenu can be accessed by pressing “OK” during picture slide-show playback. To exit the Photo Submenu, press the “Back” button or wait 5 seconds. To navigate the playback menu, use the directional buttons on the navigation pad to highlight the option you wish to choose (Fig 3.6).
  • Page 22 Photo Slideshow FAQ How do I play a slideshow? How do I manually control the 1. Choose either USB or TF Card slideshow? for playback 1. After selecting the photo you wish to be displayed, you can press “play” to start the slideshow (as outlined in the previous FAQ).
  • Page 23: Connecting To Device Via

    The P400 can connect to many media devices including: computers, laptops, iPhones, iPads, DVD players, smart phones, cameras, video game consoles and other peripherals with ease. *Some smartphones & devices require video out capabilities and adapters to be displayed with the P400. Check with your phone manufacturer.
  • Page 24 Connect the other end of the Digital AV Cable to your P400’s Digital AV port. Step 3: In the Main Menu, select the “Digital AV” Icon. Your P400 should now be mirroring the content from your device. Note: If you’re connecting to a computer or laptop and the projector does not...
  • Page 25 Connecting to a Computer Cont. Step 4: Enabling Digital Video output on your Computer – To enable Digital Video output on your computer most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable Digital Video output. Below are standard instructions for a Windows 10 computer –...
  • Page 26: Music Player Menu

    • Choose which file you wish to play. Fig. 3.7 Fig. 3.8 The P400 will show all folders and supported audio files you have on your USB or TF Card drive. Use the navigation buttons to select folders or files.
  • Page 27 Music Player Menu Listening To Audio: To adjust the volume, use the left and right button on the projector or the volumes keys on the remote. To navigate the playback menu, push the “OK” button to open the menu and use the directional buttons on the navigation pad to highlight the option you wish to choose.
  • Page 28 Music Playback FAQ How do I loop a song? How do I create a song playlist? 1. Choose either USB or TF Card Insert your media device (either TF card or USB) into computer. for playback Make a new folder on media device (folder name will be the name of the playlist).
  • Page 29: Ebook Viewer

    Use the navigation buttons to select folders or files. Viewing Text Files: The P400 Micro Projector allows you to view text files. Select the file you want to view in the file menu for the particular storage device on which the file is stored. You can press the left and right arrow buttons on the directional pad or remote to flip through the pages you have in the present folder.
  • Page 30: Chapter 4: Settings Menu

    • Sound Mode Within the settings menu, there are • Balance four more submenus that allow you to • Auto Volume customize your P400 to the settings • Surround Sound you want. Option • OSD Language • Restore Factory Default •...
  • Page 31: Picture Settings

    Picture Settings Picture Mode • Changes the picture mode to different settings depending on your usage Brightness • Adjusts the brightness of the projection Color Temperature • Adjusts the color temperature *Caution: Some pictures may be cut off from warm to cool (red to blue) when aspect ratio is set incorrectly Aspect Ratio •...
  • Page 32: Sound Settings

    Sound Settings Sound Mode • Changes the sound mode depend- ing on what is currently playing Auto Volume • Adjust volume automatically to avoid volume fluctuation Balance • Adjust sound balance Surround Sound • Adjust surround sound...
  • Page 33: Option Settings

    Option Settings OSD Language • Changes the language of the device. Options include English, Spanish, Chinese, German, French Restore Factory Default • Restores the projector to factory settings Software Version • Current software version in use...
  • Page 34: Chapter 5: Technical Details

    Be sure to setup the computer to enable a video signal output. On some lap- tops this is done by pressing and holding Function F5 key. If using the P400 as an external monitor on Windows based systems, this can be done by selecting “extend my desktop to this monitor”.
  • Page 35 Technical Details Troubleshooting THE PROJECTOR DOES NOT TURN ON Possible Causes Solution There is no power. Check to ensure the power outlet source is good. Check the power adapter to ensure a proper con- nection with the wall outlet as well as the projector. Confirm that the unit is charged and has enough power Cannot power on the projector...
  • Page 36 I can’t screen mirror my iOS smartphone Possible Causes Solution (For wired connection) Incorrect cables or con- To connect your iOS devices to the P400, please nectors use the Official Apple Lightning to Digital AV Adapter and connect via the Digital AV port.
  • Page 37 The projector is not set to the “OFF” Mode. Connect the power cord to the P400. Connect the other end of the power cord into the wall power source. Toggle the “On/ Off” switch to the “OFF”...
  • Page 38: Specifications

    Specifications Brightnes (Boost): 400 LED Lumens Native Resolution: 1920x1080 (1080P) Contrast Ratio: 1000:1 Aspect Ratio: 16:9 Projection Lens: Image Manual Focus Size: 10 - 180 inches Lightsource: LUMINUS 30,000 Hour LEDs Color: Black/Gray Video In: Digital AV (Compatible with Full Size HDMI™) Audio Output: 2W High-Low Frequency Speaker, 3.5 mm Audio Jack Throw Ratio:...
  • Page 39: Notes

    Notes...
  • Page 40 Please direct all customer service inquiries to: AAXA Technologies, Inc. 17781 Sky Park Cir., Suite #F Irvine, CA 92614 (714) 957-1999 info@aaxatech.com...
