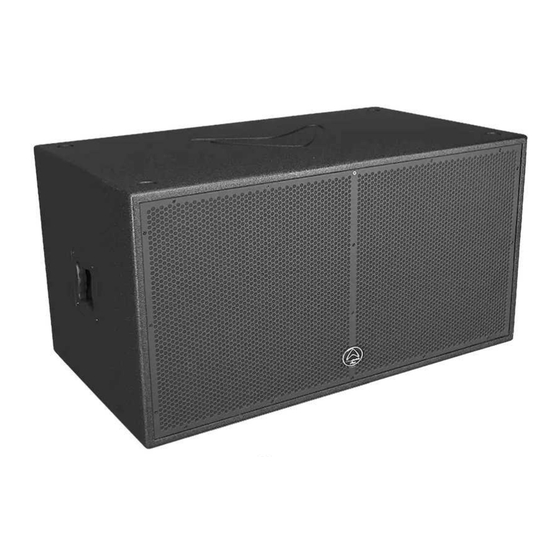

Wharfedale Pro IMPACT-X218BD Quick Start Manual

Your full user manual can also be downloaded from
www.wharfedalepro.com
Congratulations on the purchase of your IMPACT-X218BD. We take great pride in engineering and building every Wharfedale Pro product
and wish to thank you for entrusting us with your audio.
From the time Gilbert Briggs built his first loudspeaker in 1932, to the present day, we have maintained the same standard of quality in
components, workmanship and performance.
Please take the time to read this guide completely in order to get the most from your new system.
Specifications
Model Name
System Type
Configuration
Frequency Response (+/-3 dB)
Frequency Range (-10 dB)
Sensitivity (2.83 v / 1 m)
Calculated Maximum SPL @1 m
System Rated Impedance
Low Frequency Transducer
Voice Coil Size
Rated Impedance
LF Power (re:AES2-2012)
System Continuous Power
System Programme Power
System Peak Power
Crossover frequency
Input Connector
Hardware
Enclosure
Enclosure Material and finish
Colour Options
Grille Material & Finish
Dimensions - Unpacked
Width Front
Width Rear
Dimensions - Packed
Width Front
Width Rear
Weight
Net Weight
Gross Weight
Note : Specifications may be subject to change without notice.
IMPACT-X218BD
Passive
2x18" Subwoofer
35 Hz-1.2 kHz
30 Hz-1.5 kHz
102 dB
139 dB
4 Ω
Size 2 x 470 mm / 18"
Quad layer 3.0"
2 x 8 Ω
2 x 600 W
Power
1200 W
2400 W
4800 W
2 x NL2 combi jack
2 carry handles
18 mm MDF
black paint
steel
Height 540 mm / 21.3"
1040 mm / 40.9"
1040 mm / 40.9"
Depth 600 mm / 23.6"
Height 600 mm / 23.6"
1100 mm / 43.3"
1100 mm / 43.3"
Depth 640 mm / 25.2"
68.74 kg / 151.2 lbs
82.24 kg / 180.9 lbs
IMPACT-X218BD
QUICK START GUIDE

Overview

920.0
1040.0
920.0
600.0
