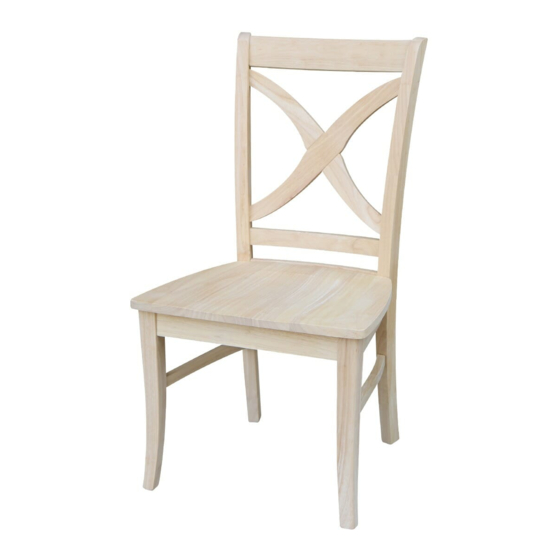

- Page 1 ASSEMBLY INSTRUCTIONS : VINEYARD CHAIR W/WOOD SEAT Description : C-14 Item No. ITEM NO.: C-14 Printed in Vietnam REVISED APR 27, 2018 - 1 -...
-
Page 2: Before Assembly
Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws, bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: C-14 Printed in Vietnam REVISED APR 27, 2018 - 2 -... -
Page 3: Part List
Long Screw (M6 x 80mm) (M4 x 50mm) Short Screw Lock Washer (M4 x 35mm) (6.5 x11mm) Flat Washer Allen Key (6.5 x19mm) (M4 x 30mm x 110mm) ITEM NO.: C-14 Printed in Vietnam REVISED APR 27, 2018 - 3 -... - Page 4 Attach front legs (D) to the seat frame (B) with bolts (2), and washers (6) and (7) as shown below. Tighten with Allen key (8). Attach side stretchers (E) to front and back legs with screws (4) as shown below. Tighten with a screwdriver. ITEM NO.: C-14 Printed in Vietnam REVISED APR 27, 2018 - 4 -...
- Page 5 STEP 3 Attach the seat (C) to top of the seat frame (B) with screws (5) as shown below. Tighten with a screwdriver. ITEM NO.: C-14 Printed in Vietnam REVISED APR 27, 2018 - 5 -...
