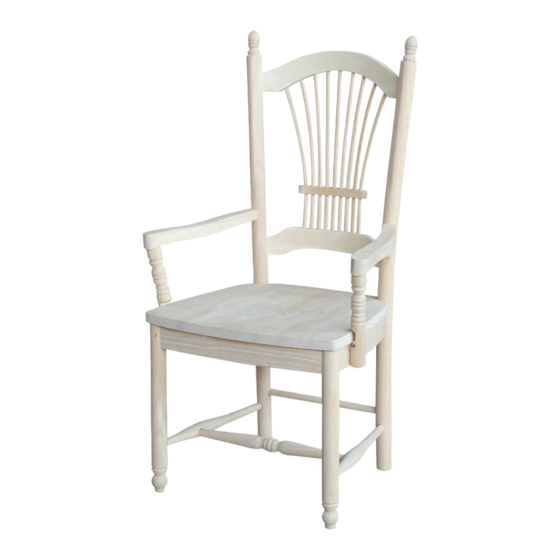

- Page 1 ASSEMBLY INSTRUCTIONS : SHEAFBACK ARM CHAIR Description : C-1622 Item No. ITEM NO.: C-1622 Printed in Vietnam REVISED JUN 04, 2013 - 1 -...
-
Page 2: Before Assembly
BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect. If a part is missing or defective, please contact the store where purchased. -
Page 3: Hardware List
HARDWARE LIST When unpacking, please carefully not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Short bolt Medium bolt ( M6x40mm) (M6x60mm) Long bolt Wood Screw (M6 x 80mm) (M4 x 35mm) Lock Washer... - Page 4 STEP 2 Attach front legs (D) to the seat frame with bolts (2), and washers (5) and (6). Tighten with Allen key (7). Place side stretchers (E) and center stretcher (F) between front and back legs. Attach stretchers with the screws (4) as shown below. Tighten with a screwdriver. STEP 3 Attach arms (G) to seat frame with bolts (1), and washers (5) and (6).
- Page 5 STEP 4 Attach the seat (C) to top of the seat frame with screws (4) as shown below. Tighten with a screwdriver. ITEM NO.: C-1622 Printed in Vietnam REVISED JUN 04, 2013 - 5 -...
