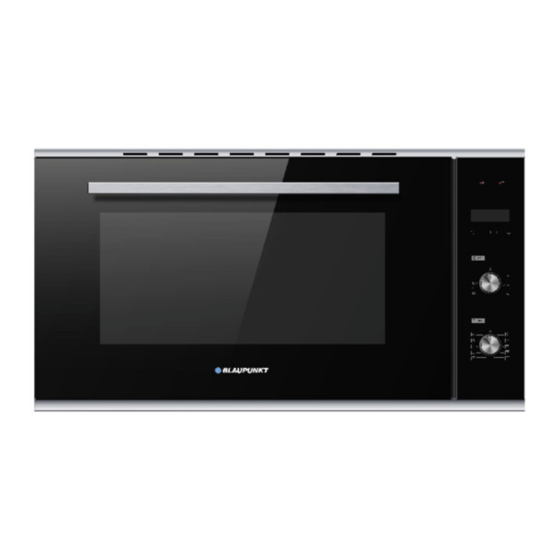

- Page 1 Instructions for installation and use Integrated Oven 5BC94190AU...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION ......................2 SAFETY INSTRUCTIONS ......................4 PRODUCT DESCRIPTION ......................7 PREPARING FOR FIRST USE ....................11 CLEANING AND CARE ......................12 TROUBLESHOOTING ......................15 ENERGY EFFICIENCY/CLEANING AND CARE ..............16 INSTALLATION ........................16 COOKING GUIDE TABLE ....................... 19 This oven complies with the current safety provisions. - Page 3 • The oven must always be used within the limits of normal household use, not for professional use, for cooking, roasting, grilling, thawing dishes, to prepare food for later storage or to dehydrate it. • No other use is permissible. •...
-
Page 4: Safety Instructions
Danger of burns! • The skin of children is much more delicate than that of adults. The glass door, the control panel and the slots for hot air to come out of the appliance's cooking chamber get hot. Prevent children from touching the appliance while it is operating. - Page 5 2.3 Use CAUTION! • Use the appliance solely in a domestic environment. • Risk of injury, burns, electric shock or explosion. • Do not make any changes to the specifications of this appliance. • Ensure that the ventilation slots are not blocked. •...
- Page 6 2.4 Cleaning and care CAUTION! • There is a risk of injury, fire or damage to the appliance. • Before carrying out any maintenance work, switch off the appliance and remove the plug from the socket. • Check that the appliance is cold. There is a risk that the glass panels might break. •...
-
Page 7: Product Description
PRODUCT DESCRIPTION 3.1 Overview 1) Control Panel 2) Functions Knob 3) Temperature Knob 4) End-of-Cooking Timer/clock Button 5) Temperature °C indicator / symbol / warning light 6) F switch indicator / symbol / warning light 7) Lamps 8) Heating element 9) Fan 10) Rack Positions 11) Shelf support (removable) - Page 8 Oven function Application Off: The appliance is switched off. Oven Lamp: To switch on the lamp without a cooking function. Defrost: To thaw eg. meat, poultry, bread and desserts. The fan causes the warm air to wrap around the food The inner heating element and the outer heating element in the top of the oven are working Double grilling with fan: with fan.
- Page 9 Set alarm • Press and the alarm icon will begin to flash which means the alarm function has been chosen “0:00” will display. Press the "+" and "-" button to set alarm time. The time can be adjusted between “0:01~23:59”. Press once on plus or minus 1, and hold for 3 seconds for quick-adjust.
- Page 10 3.6 Cooking Chamber • In the cooking chamber there are the Oven Lamps that are on while the oven is working. By turning the functions selector onto this symbol you can light up the lamp when the oven is switched off too. •...
-
Page 11: Preparing For First Use
4. PREPARING FOR FIRST USE CAUTION! • Refer to the chapters on safety. 4.1 Initial cleaning • Take the accessories and removable shelf supports out of the appliance. • Clean the appliance before using it for the first time. Place the accessories and removable shelf supports in their initial position 4.2 Switching on for the first time •... -
Page 12: Cleaning And Care
5. CLEANING AND CARE CAUTION! • Refer to the chapters on safety. 5.1 Notes on cleaning • Clean the front of the appliance with a soft cloth moistened with warm soapy water. • To clean the metal surfaces, use a regular detergent. •... - Page 13 5.2 Notes on cleaning • Clean the oven door only with a moist sponge. Dry it with a soft cloth. • Do not use steel wool, acids or abrasive products that could damage the surface of the oven. Clean the oven control panel, taking the same precautions.
- Page 14 5.5 Removing and Cleaning the oven door • The oven door is equipped with three glass panels. You can remove the oven door and the internal glass panels to clean them. • The oven door could close again if you try to remove the glass panels before taking off the oven door. CAUTION! •...
-
Page 15: Troubleshooting
5.6 Changing the light bulb CAUTION! • WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. • Wear protective gloves to change the light bulb. • To make the replacement, proceed as follows: •... -
Page 16: Energy Efficiency/Cleaning And Care
7. CLEANING AND CARE 7.1 Energy saving The appliance is equipped with features to help you save energy during everyday cooking. General tips • Ensure that the oven door is closed properly when the appliance is in operation and keep it closed as much as possible during cooking. - Page 17 60 mm(*) 60 mm(*) (*) Through the hole diameter 60 mm it is imperative to pass the electric cable of the oven. CONNECTING TO THE ELECTRIC MAINS • The oven is provided with a three-pole power cable with free terminals. •...
- Page 18 EARTHING Nominal Power 2.8 kW 11. 220-240V~ Supply cord: 3 x 1.5 mm type H05VV-F or H05RR-F LIVE • The system must have an earthing wire, distinguished by the yellow-green colour of the protective sleeve. Components Oven Nominal Power • All electric household appliances must NEUTRAL be connected to earth.
-
Page 19: Cooking Guide Table
Cooking guide table Dishes Weight (kg) Accessories pre-heating Rack Function Temperature Time (minutes) position (°C) minutes from bottom Cheese Cake 1,5 – 4 Kg Cookware, uncovered onto the wire rack 50-70 Roast Beef 1 – 4 Kg Cookware, uncovered onto the wire rack 25-30 Meatloaf 1 –... - Page 20 Service 1800 252 878 658 www.blaupunkt-einbaugeraete.com Australia CustomerCare@blaupunktAU.com PN:16171100A30052...
