QUICK START PROCEDURE
Demonstration circuit 1986A is easy to set up and evalu-
ate the performance of the LTM2892-I. Refer to Figure 3
for proper measurement equipment setup and follow the
procedure below.
NOTE: When measuring the input or output voltage ripple
or high speed signals, care must be taken to avoid a long
ground lead on the oscilloscope probe.
1. Install jumpers as shown in Figure 3 and the schematic
diagram.
DEMO MANUAL DC1986A
2. With power off, connect the input power supplies to
V
- GND1 and V
CC1
3. Turn on the power at the input.
NOTE: Make sure that the input voltage does not ex-
ceed 6V.
4. Configure jumpers or connect signals to turrets as ap-
propriate. If a signal is connected to an input channel
turret the associated channel jumper must be removed
for proper operation.

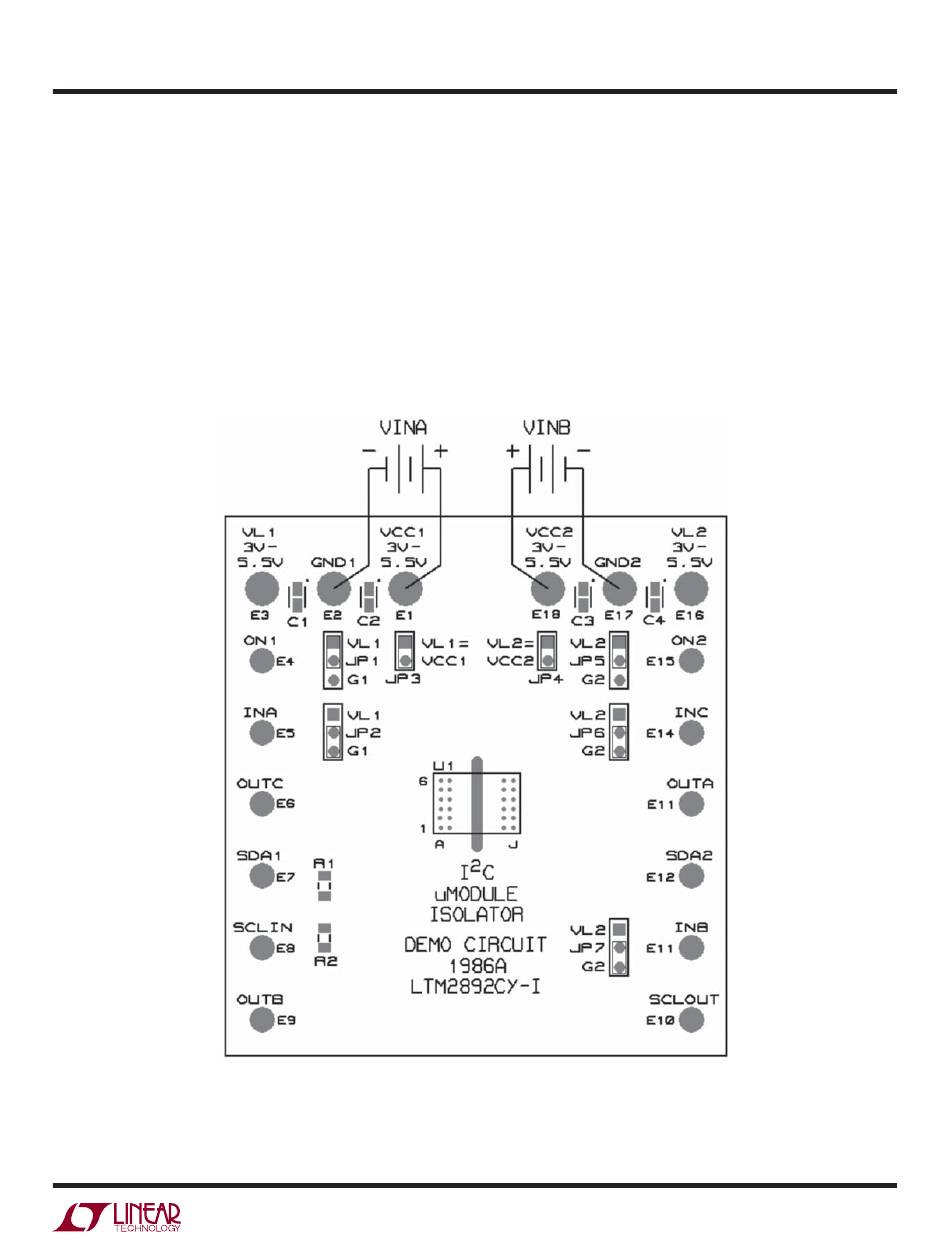

Figure 3. Demo Board Setup
- GND2 as shown.
CC2
