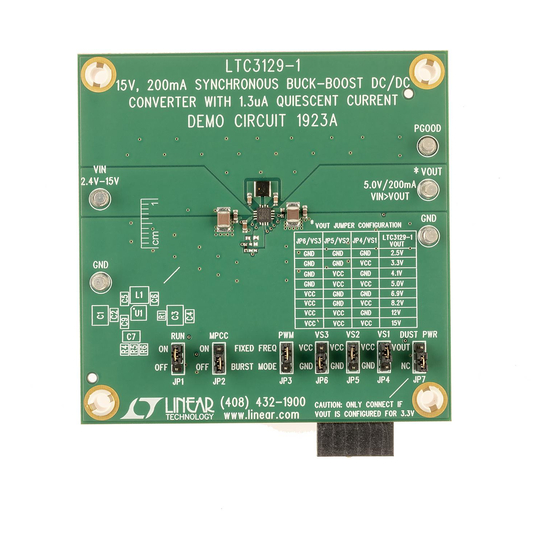

Demonstration circuit 1923A features the LTC3129-1, a
high efficiency 200mA buck-boost DC/DC converter with
a wide V
and V
IN
OUT
The DC1923A demo board has two user selectable operat-
ing modes: Burst Mode
PWM (JP3). There is also an accurate programmable RUN
pin which is used to ENABLE the converter (JP1). The
LTC3129-1 also incorporates a maximum power point
control function which can be enabled (JP2) for applications
where the input source is a solar cell or is high imped-
ance, such as intrinsically safe applications or high Z
thermal electric generators (TEGs). The LTC3129-1 also
features fixed output voltages with eight user-selectable
settings (JP4, JP5, JP6). This allows the user to eliminate
the output voltage divider and the associated bias current.
The DC1923A operates with a 2.42V to 15V input voltage
range, and has been designed with the output voltage set
to 5V. The demo board can be programmed to any of the
eight voltage settings by using jumpers JP4, JP5, and JP6.
performance summary
PARAMETER
Input Voltage Range
VOUT
IOUT (see Note 1)
Efficiency
Note 1: The demo board output current is a function of VIN. Please refer to the data sheet for more information.
Arrow.com.
Downloaded from
15V, 200mA Synchronous Buck-Boost DC/DC
Converter with 1.3µA Quiescent Current
range.
operation and fixed frequency
®
DEMO MANUAL DC1923A
Once the converter is started the LTC3129-1 can operate
with V
as low as 1.92V provided V
IN
the data sheet for more information on these options.
The DC1923A demo board also incorporates a connector
(J1) which can be used to connect to a Dust Networks
mote demo board.
Figure 1 shows typical demo board efficiency and Figure 2
shows typical step response.
The LTC3129-1 data sheet has detailed information about
the operation, specification, and applications of the part.
OUT
The data sheet should be read in conjunction with this
quick start guide.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, Linear Technology, the Linear logo, Burst Mode, Dust Networks and Dust are
registered trademarks of Linear Technology Corporation. All other trademarks are the property
of their respective owners.
Specifications are at T
= 25°C
A
LTC3129-1
is back-fed. Consult
CC
TYPICAL
2.42V to 15V
5V; 8 User Selectable Voltages
200mA, for VIN > V
OUT
See Figure 1
®
dc1923af
1
