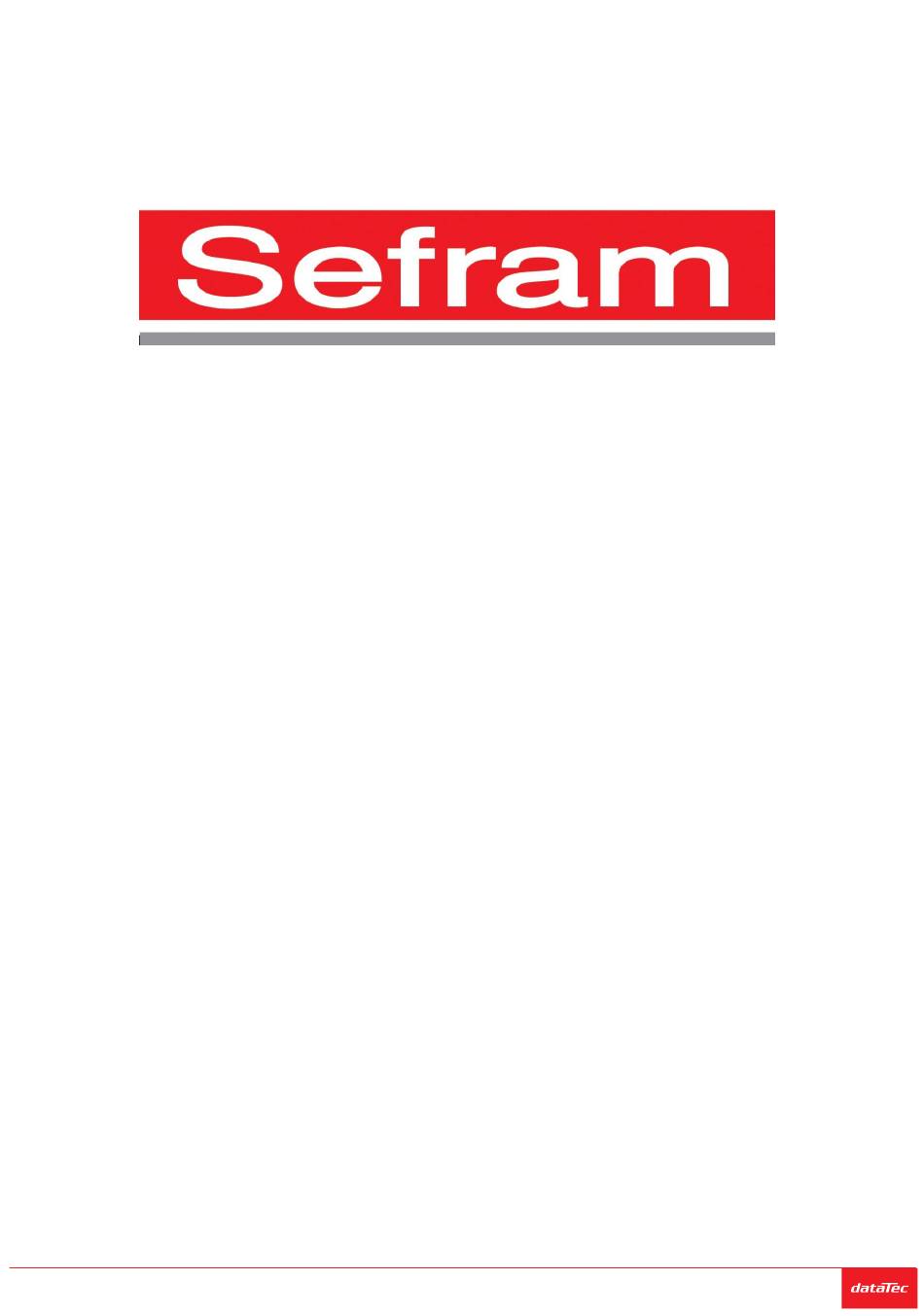

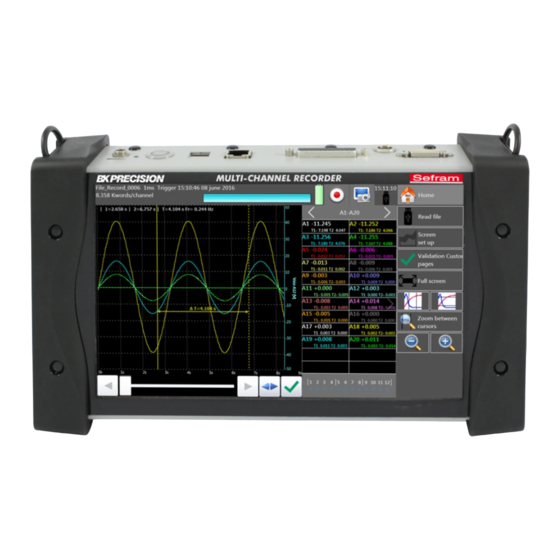

- Page 1 RECORDER DAS240/DAS220 USER’S MANUAL Edition June 2021 M220-240-004E/3 Distributed by: Sie haben Fragen oder wünschen eine Beratung? Angebotsanfrage unter 07121 / 51 50 50 oder über info@datatec.de...
- Page 2 Thank you for buying a SEFRAM recorder and for your trust in our company. The main goal of our various teams (research department, production, commercial, after-sales…) is to meet your requirements as much as possible by designing or updating high tech products.
- Page 3 What to do in case of malfunction? In case of malfunction or for any problem of use, please contact the SEFRAM Instruments & Systems after-sales service. A technician will take your call in charge and will provide you any required information to solve your problem.
- Page 4 The metrological conditions of your measurement instrument are defined in the specifications of this notice. Climate and environmental conditions restrict the specifications of your recorder. SEFRAM checks the characteristics of each appliance one by one on an automatic bench during its manufacture. The adjustment and control are guaranteed under conditions of the ISO9001 certification by facilities in connection with the COFRAC (or equivalent in the context of ILAC reciprocity).
-
Page 5: Table Of Contents
Extension module (DAS240 only) : ........................ 2.5 SETUP AND PRECAUTION OF USE 3.1............................... 3.1 WITCHING ON 3.1.1. Use of the extension modules (DAS240 only) : ....................3.2 3.1.2. Switching off ..............................3.3 3.2......................3.3 ONNECTION TO THE MEASURING CIRCUIT 3.2.1. - Page 6 INSTALLATION CATEGORY 11.13. A ..............................11.7 CCESSORIES 11.13.1. Accessories provided with the DAS240 ....................... 11.7 11.13.2. Accessories provided with the DAS220 ....................... 11.7 11.13.3. Accessories and options for DAS240 ......................11.7 11.13.4. Accessories and options for DAS220 ......................11.7 APPENDS 12.1.
-
Page 8: Important Information
In case of malfunction or for the maintenance of the appliance, only qualified personal shall be allowed to work on it. In such a case, it is necessary to use SEFRAM spare parts. Never open the appliance: there is live voltage. -
Page 9: Conformity And Limits Of The Appliance
Ground: accessible parts linked to the ground of the appliance. 1.2.1. Conformity and limits of the appliance The DAS240/DAS220 recorder is in conformity with IEC 61010-1 (2001-02). See chapter “Technical specifications”. §11.10 Attention: Never apply a higher voltage than the maximum authorized voltage between the channels and from the ground of the modules, Page 1.2... -
Page 10: Presentation
The measurement parameters are easy to program. The recording is made directly on an internal 32 GB memory card. The DAS240 is composed with a main base frame and extension modules of 20 channels each. The DAS220 is composed with a main base frame and 10 analog inputs are integrated. -
Page 11: Recording Period
2.1.1. Recording period The acquisition on each valid channel is done every millisecond, For each channel one can choose a sampling period variable from 1 ms to 100 ms ( for Pt100 and Pt1000 3 wires : the period is variable from 2ms to 200ms.) This period of integration can eliminate noise for high frequency Example : main noise at 50Hz or engine noise at 1kHz. -
Page 12: Description
2.2. DESCRIPTION 2.2.1. Electrical connectors of the main frame DAS240 1- Battery supply/charger 2- Battery charging LED. 3- ON/OFF switch and switching on indicator. 4- 2 USB connectors for (female) USB stick. 5- RJ45 connector for the Ethernet 10/100 Base interface. - Page 13 DAS220 1- Battery supply/charger 2- Battery charging LED. 3- ON/OFF switch and switching on indicator. 4- 2 USB connectors for (female) USB stick. 5- RJ45 connector for the Ethernet 10/100 Base interface. 6- SUB-D 25-pin connector for the 16 logical inputs and the alarm output. 7- Ground connection Page 1.4...
-
Page 14: Extension Module (Das240 Only)
2.2.2. Extension module (DAS240 only) : A module is delivered with the appliance with its 70 cm bounding cable and 20 external terminal blocks. Extension module Extension cord (70cm) 5.08 mm 3 contact step connectors. Page 1.5... -
Page 15: Setup And Precaution Of Use
3.1. Switching on Before switching on the appliance, make sure that the extension modules are connected. Attention: Never remove or put the extension modules under voltage. (DAS240 only) You turn on the recorder by pressing the button at the top of the appliance. -
Page 16: Use Of The Extension Modules (Das240 Only)
Then screw the plates with the adjacent modules. Stick the additional adhesive buttress. Connect the cable using unlocking levers (1) Connect the cable on the DAS240 (which must be powered off). Switch on the appliance. The appliance is delivered with a 70cm cable. -
Page 17: Switching Off
3.1.2. Switching off To switch off the recorder, press the ON/OFF key (see paragraph 2.2). The setup will be saved, the current file will be closed and the appliance will be turned off. If the appliance is not switched off correctly, then press the ON /OFF button for 5 seconds. In such case, the setup will not be saved. -
Page 18: Temperature Measurement With Pt100/Pt1000
You can make current measurement by shunt between the + and - terminals of the relevant input. You will use either an external resistance or the SEFRAM shunt (ref 902406500 : 50Ω) In this case, select the “current” type among the parameters of the relevant channel. Connect the measurement wires to the shunt terminals. -
Page 19: Routine Maintenance
The internal software is updated regularly with the latest evolutions. These updates are available on our website. http://www.sefram.com/en/software-updates.html To update the software, copy the file that will be provided on an USB stick. Place it on the USB connector on the rear side of the appliance. -
Page 20: Battery
However, if the appliance has remained unused for more than one month, check its loading status and reload it if required. Warning: any intervention on the battery requires dismantling of the appliance and shall be made by a SEFRAM technician. Only use batteries provided by SEFRAM. Security advice: ... -
Page 21: Offset Calibration
3.6. Offset calibration You can easily calibrate the recorder inputs for the voltage and thermocouple offsets. This will remove any offset present on different channels. To do so: Let the appliance work for 20 minutes (ambient temperature 20-25°C). Enter the recorder main page and then press the “Setup” key. ... - Page 22 3.9. Keypad lock You can also lock the recorder completely, no key will be accessible. Press the “Setup” key. Press the “Additional Option” key. Press the “Locking the recorder” key. Confirm! The keypad lock will occur 10 seconds after you have pressed the confirmation key. All the keys of the appliance will be blocked.
-
Page 23: Use
4. USE The recorder is equipped with a capacitive touchscreen. You can use the provided pen or a USB mouse. 4.1. Description of the upper band Different areas on the screen: 1- Acquisition status (in progress, stop). 2- Battery status (if present option). 3- Direct access to display. -
Page 24: Description Of The Right Band
In this band, you directly have the instant value of the inputs, the functions and the logical channels. You can also access to the pages of the analog and logical channels. DAS240 DAS220 1- Selection of the inputs to be displayed : you can display (by pressing the keys): ... -
Page 25: Setup Menu
4.3. Setup menu General configuration of the appliance, monitoring of the alarm outputs, network address TCP/IP, calibration of the channels, update of the internal software. Language: selection of the language of the appliance. Screen intensity: adjustment of the delay (without or variable 1-30min) ... -
Page 26: Channels Menu
4.4. Channels menu By pressing the menu « channels », you access the table of all available analogic and temperature channels of your recorder. This table gives you a quick insight of the various adjustments of the channels. You can change these adjustments directly in this table by pressing the parameter you want to update. -
Page 27: Analogic Channels
4.5. Analogic channels 1- Number of the channel 2- Name of the channel: give a name to the channel (26 characters max.) 3- Type : choose the type of the measurement performed on the input Voltage Current o Shunt value in current measurement (Automatic sensor 4-20mA): you choose the shunt resistance. - Page 28 8- Setting the diameter: the diameter is the measurement extent corresponding with the total height of the screen, where the channel is traced. 9- Setting the location : location of the zero on the screen from -100 to 100% : o Max: 100 %: zero is at the top o Centre :0 % zero is in the center o Min: -100% zero is at the bottom...
-
Page 29: Additional Functions Between Channels
4.6. Additional functions between channels Additionnal channels calculation functions allow to make calculations between channels. Indeed, you can enable up to 4 additional functions per extension module (20 channels). Those functions are not recorded but calculated in real-time with the channels. In order to see them in an acquisition, the X and Y channels must be recorded. -
Page 30: Logical Channels
Example : To calculate a power P=U.I. We will then have : (ax*by)+ c with: X = voltage U1= voltage operator = * Y= I1 = current Unit = W o a = 1 o b = 1 o c = 0 NB : We can choose any valid channels (of all plugs-in modules). -
Page 31: Logical Channels
4.7.2. Logical channels The 12 logical channels might be recorded simultaneously with the analog channels. To set the logical channels, press on The « logical channels » menu on the main screen. or directly press on the section of logical channels present on the left band (you must however confirm the logical channels on the «... -
Page 32: Channel Validation
The number of recorded channels gives the minimum sampling period. We can also choose the validation of logical channels, of functions between channels and of logical channels functions. DAS240 DAS220 For each plug-in (group) or for the logical functions group,you choose the channels to validate or to cancel. - Page 33 A key allows to validate the functions: the 4 functions associated to the viewed group appear. The minimum sampling period appears (see §5.x). Page 4.11...
-
Page 34: Numerical Display
4.9. Numerical Display The numerical display is accessible via the main menu by pressing the “Numerical” key. The numerical page allows having in real time all values of channels groups. (Plugs-in, personal group etc..) keys : allow to change groups and view other channels. For each channel, you view: ... -
Page 35: Xy Display
4.10. XY Display The XY mode is accessible via the main menu by pressing the XY key. The XY display mode allows visualizing the validated channels on the screen and in real time, relative to each other. One of the channel defines the excursion on the horizontal axis, the other channels give points on the vertical axis. -
Page 36: F(T) Key
4.11. F(t) key Waveform visualization of acquisition. The oscilloscope is a scrolling mode, you choose time basis speed and you display the channels in real time. 4.11.1. F(t) Menu keys Setting the screen : Configuration of measurements display on the screen. ... -
Page 37: Numerical Window
Time basis : Allows to set the time basis per division. NB : We can have a rectangular visualization : for example, for a speed of 500 ms/div, if 100 channels are validated, the sampling period will be of 100ms, and we will have then 5 points per division and 50 points on the entire screen, hence the rectangular effect. -
Page 38: Trigger " Menu
4.12. «Trigger » menu Programming the conditions of start and stop of the data acquisition. Selection of the actions after data acquisition or plotting and validation of data save in real time. See the chapter about data acquisition for a more complete description (§ 7). Page 4.16... -
Page 39: Memory Output " Key
4.13. « Memory output » key Display on screen of the possible data acquisitions into files on the internal memory or an USB stick This function includes the same commands as the « Direct view » function. The « Read file » command allows you to select the file to display. When pressing this key, the following window shows up: ... -
Page 40: Record " Key
4.14. « Record » key This key has various effects according to the way you use it. Launching the data acquisition into a file and position of the appliance in a stand-by mode, waiting for the trigger condition Start. In any case, you can force the triggering and stop without fulfillment of the conditions inside the recorder by pressing (to force the record) and (to force the stop). -
Page 41: Triggers
5. TRIGGERS This chapter describes all possible triggers of the appliance. They are used by: the « setup » menu, with the A and B alarms the « triggers » menu, with the start and stop parameters of the recording. ... -
Page 42: Analogic Channel Trigger
5.1. Analogic channel trigger By pressing Start or Stop, you open the setup window for the trigger of the start or stop of recording. After selection of the trigger on Analogic Channels, the following line on screen allows you to set the trigger condition. It depends on the selection of single or multiple threshold. 5.1.1. -
Page 43: Multiple Thresholds
5.1.2. Multiple thresholds Trigger: Combination of analogic channels After selection of a trigger on a set of logic channels, the window allows you to set the trigger under several conditions. Then, by pressing the various thresholds in front of their respective channels, you open the threshold parameter window. -
Page 44: Trigger On Logic Channels
5.1.3. Trigger on Logic Channels After selection of the trigger on Logic Channels, the window allows you to set the trigger condition. The 12 logic channels can be used in the trigger word: either active at status 0 (less than 1.6 volt) ... -
Page 45: Mathematical Calculations
6. MATHEMATICAL CALCULATIONS You can apply mathematical calculations on your data acquisitions. You can access them with the « Direct display » function. 6.1. Definitions In « Screen setup »: validate « Display Mathematical calculations » Then, press the « Mathematical calculations » key ... -
Page 46: Types Of Calculations
The display is made in windows above the diagrams, where are specified: the number of the channel (with its color) the type of calculation the value of calculation You can place this window anywhere on the screen (click/slide). Under «... - Page 47 Drawing Math function Calculation Observations The lowest negative Minimum voltage bottom The highest positive Maximum voltage peak Max – Min Peak to Peak The most frequent value below the median The most frequent High value above the median High – Low Amplitude ...
- Page 48 = 90% Amplitude = 10% Amplitude Falling edge – T fall Measurement of the time of 1 Width of positive pulse. It is measured at positive 50% of amplitude impulsion Measurement of the time of 1 Width of negative pulse. It is measured at negative 50% of amplitude impulsion...
-
Page 49: Data Acquisition
7. DATA ACQUISITION In the « Launch » page, you must first program the data acquisition. 7.1. Launch page Definition of the data acquisition file: Selection of the folder Selection of the name (beginning of the file name, the end is an incremental value) ... -
Page 50: Recording
Stop: no action Relaunch: a new file is relaunched waiting for the Start trigger View of the active channels, of the recording time, of the pre-launch… A message « Impossible » shows up when the saving possibilities are exceeded: reduce the sampling speed or the number of channels 7.2. - Page 51 When changing of menu page, you can return to data acquisition by pressing the "Record" key. For longer data acquisition times, you can zoom onto a part of the data or change of page. Keys of the « Display » menu: ...
-
Page 52: File Output
7.3. File output You can access the « Replay memory » mode by pressing Display of the available data acquisitions in files: 7.3.1. F(t) display 1- Read file: selection of the file to display. 2- Screen setup: type of display, diagrams; see § 4. 3- Configure custom pages (in the pages Custom 1 and Custom 2) 4- Full screen 5- Math (if valid) -
Page 53: Xy Display
7.3.2. XY display 1. Selection of the channel for abscissa values X 2. Display of the cursors 3. Selection of the channel where to apply the cursor 4. Zoom between cursors 5. Manual change of the caliber/position of the channel 6. -
Page 54: File Management
8. FILE MANAGEMENT 8.1. General For all possible files, the appliance has an internal flash disk available and may accept an USB stick, which makes it possible: to save and load the total configuration of the recorder to save or restore a data acquisition. The names of the setup files have a «... -
Page 55: Setup File
8.2. Setup file The configuration file management page is linked to the « Setup» key. Their name bear the "cnf" extension. These commands are only available when the data acquisition is stopped. The available commands in the configuration window are: ... -
Page 56: Loading The Data Acquisition Files
8.3.1. Loading the data acquisition files The following window shows up: When selecting a file - you can only read data acquisition files (suffix .rec), you can: Copy it onto an external USB stick Erase it Read it. Select the place and name of the file to load and display on screen, then press «... -
Page 57: Inputs/Outputs
9. INPUTS/OUTPUTS 9.1. Additional Input/Output Connectors The connector is at the rear (female SUB-D 25pin). #pin Name of the signals Logic channel 1 Logic channel 2 Logic channel 3 Logic channel 4 Logic channel 5 Logic channel 6 Logic channel 7 Logic channel 8 Logic channel 9 Logic channel 10... -
Page 58: Logic Inputs
9.2. Logic inputs Inputs are according to the following circuit: Non-connected inputs are 0V potential (level 0). Number of logic channels: from 1 to 12. TTL level: 3.3V (protected up to 24V) To create a rising edge, you only have to place a connection between the power input and output of the connector. -
Page 59: Power Supply Output
9.4. Power supply output There is a power supply output restricted to 0.2A (see figure "connector"). The voltage is the one of the 9-12V battery as a function of the charge and 15V is the charger is connected. The ground of this power supply is the mechanical ground. Thus, you can use this output to provide power to a sensor or an electronic circuit in order to manage the logic inputs. -
Page 60: Extension Box Input/Output Interface
9.5. Extension box input/output interface The extension box input/output interface option (code 984405500) makes it possible to: Convert an alternating voltage (example 230V 50Hz) into a logic signal 1 Easy connection of the inputs of the 16 logic channels ... - Page 61 Link the box to the input/output connector of the appliance with the 25-pin connector provided as an option. Connect the logic channels to record with respect of the maximum acceptable voltages. Power supply / Alarms: DAS1600/800/8460 DAS20/30/40/50 DAS240/DAS220 Ground Ground Ground 3.3V...
-
Page 62: Extension Wire For Logical Channels
AL1-AL4 See below DAS240/DAS220 Mark Logical function K1 Logical function K2 Logical function K3 Logical function K4 DAS1600/800/8460 DAS20/30/40/50 DAS240/DAS220 AL1 Alarm A c1 Alarm C AL2 Alarm A c2 Alarm D AL3 Alarm B Alarm A Alarm A AL4 Alarm C... -
Page 63: Interface
10. INTERFACE 10.1. Ethernet Interface You can use the recorder remotely via its Ethernet interface with the TCP-IP protocol. Connect the recorder to your network with a straight-through cable onto the 10/100 BASE-T (RJ45) connector at the rear of the appliance. You can use the recorder on an Ethernet network 10 Mbit/s or 100Mbit/s. -
Page 64: Wifi Interface
Then, you only have to send the commands as per the following paragraphs to the recorder. 10.2. WIFI interface Use only the USB stick provided by SEFRAM. Turn the appliance on with the USB stick on a relevant port. In the « Setup » menu, press the « Network » key. -
Page 65: Ftp Transfer
Changing the password In the « Setup » page, press VNC. You can then change the password of VNC. The default password is « sefram ». 10.5. External software VNC Viewer You are submitted a link to easily download this software: http://www.realvnc.com/download/viewer/. - Page 66 On the VNC Server line: you must type the IP address of your recorder and the password (the default password is « sefram »), then click « Connect » You will be able to control your recorder from your computer.
-
Page 67: Viewing With Seframviewer
10.6. Viewing with SeframViewer You can transfer the data acquisition files to a PC computer for viewing. The SeframViewer software is provided on a CD-ROM with the appliance. You can use it to view the recorded files or convert it into xls or txt files. It works under WINDOWS with Framework 2.0. - Page 68 C:\Program Files (x86)\SeframViewer\seframviewer.exe myfile.rec /x will create a .xls file C:\Program Files (x86)\SeframViewer\seframviewer.exe myfile.rec /t will create a .txt file Excel@export will directly launch Excel in the browser. Page 10.6...
-
Page 69: Control Your Device With Daslab
According to your needs, click on the right button. If you want manage your DAS240/DAS220 using network, please enter the IP address to establish the connection. For every action, including opening, saving, sending or refreshing configurations, the left sliding menu makes you able to apply it. -
Page 70: Technical Specifications
11. TECHNICAL SPECIFICATIONS 11.1. General characteristics DAS240 : Number of inputs: 20 per module max. 20 modules DAS220 : Number of inputs : 10 Impedance: 1 MΩ max. acceptable voltages: between the 2 terminals of a channel : +100 V DC... -
Page 71: Pt100/Pt1000 Record
The accuracy of the thermocouples is specified in append. Compensation of the cold welding: ± 0.5°C 11.4. Pt100/Pt1000 Record Current generator: Pt100: 1mA Pt1000: 100µA Domain of use: -200°C to 850°C 2 wires or 3 wires ... -
Page 72: Additional Inputs / Outputs
11.7. Additional inputs / outputs 11.7.1. Logic functions Logic functions (K1 to K4) Same characteristics as the logic channels (see the following chapter) Pulse counter: o counter from 0 to max. 10000000 o Minimum impulsion : 10µs Frequency: o 10Hz to 10kHz o Accuracy : 0.1 % from 10Hz to 100Khz, 0.01Hz from 1Hz to 10Hz ... -
Page 73: Triggers
11.8. Triggers Date Delay Thresholds and combinations (or/and) of thresholds (2 per channel) Word on logic channel (and, or, edge, level) 11.9. Acquisition files Size of the internal flash disc min. 32GB max. file size ... -
Page 74: Power Supply - Battery
11.11.2. Power supply - battery External power supply: mains block 100/240 VAC, jack 5.5 mm, hole 2.1 mm output 15 V 4 A max Non-removable battery: lithium ion 10.8 V, 6.5 Ah (9 V at end of discharge) 200 cycles charge / discharge Battery life: with screen saver: 15h without screen saver: 10h... -
Page 75: Security, Insulation Class, Installation Category
11.12. Security, insulation class, installation category Security class: handy appliance for use on field Security conform to IEC61010-1 (2010) Pollution degree Power supply by 15 V external block code 207195117 Installation category (overvoltage category) Measurement input category I 100V, overvoltage 500V Other input/ouput measurement category I (CAT I) The carter of the appliance is grounded if the mains block is connected to the... -
Page 76: Accessories
11.13. Accessories 11.13.1. Accessories provided with the DAS240 Battery charger 207195117 1 male 25-pin connector for logic channels 214200250 1 cover for connector 214299014 Extension box (with accessory set) 902401000 11.13.2. Accessories provided with the DAS220 Battery charger 207195117 1 male 25-pin connector for logic channels... -
Page 77: Appends
12. APPENDS 12.1. Measurement accuracy for thermocouple The thermocouple measurements are treated as voltage measurements. For a given range of temperature measurement, the software calculates the voltage caliber the following way: * Let « T » the absolute value of the max. measurable value, in °C * Add 40°C to take the max. - Page 78 Measurement accuracy: Pm The measurement accuracy Pm depends on the voltage range of the appliance (see the previous paragraph) and on the slope of the thermocouple. You shall take the slope at 0°C while knowing that it will vary as a function of the temperature, but this variation is generally of the second order for the accuracy calculation.
- Page 79 EXAMPLE OF ACCURACY CALCULATION You make a welding between -50°C and +50°C with a J thermocouple with compensation of cold welding. Pt = Pl + Ps + Pm Pl = + 0.25°C (linearization accuracy) Ps = + 0.5°C (compensation of cold welding) Used caliber 10mV (see previous example) Accuracy for voltage measurement 0.1%*10mV + 10µV = 20µV...
-
Page 80: Accuracy Class - Class Index
12.2. Accuracy class – class index This is one of the most important concepts of the CEI recommendation; it tends to shorten the list of specifications. To do so, it introduces the concept of PREDICTIVE CLASS that depends on the C CLASS INDEX. The normalized values of the class index are: C = 0.1, 0.25, 0.5 and 1.
